NSN 5930-01-173-9068 A404497, TMCGD6ST284AY, 2TMT284AY
Product Details | SENSITIVE SWITCH
5930-01-173-9068 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: A404497, TMCGD6ST284AY, 2TMT284AY, 2TMT28-4A-Y, 5930-01-173-9068, 01-173-9068, 5930011739068, 011739068
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 MAR 1984 | 01-173-9068 | 00399 ( SWITCH, SENSITIVE ) |

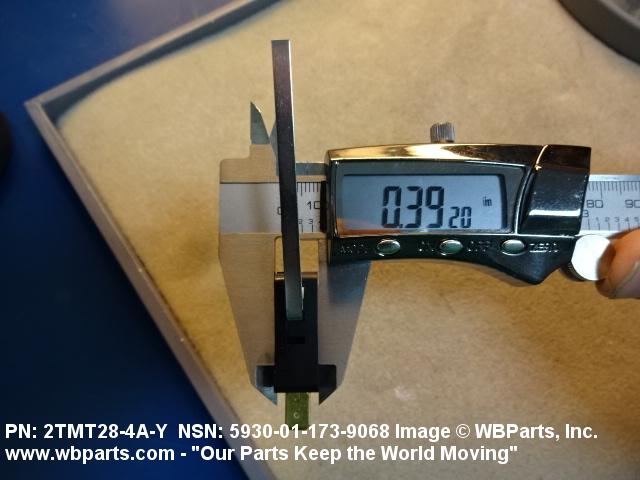

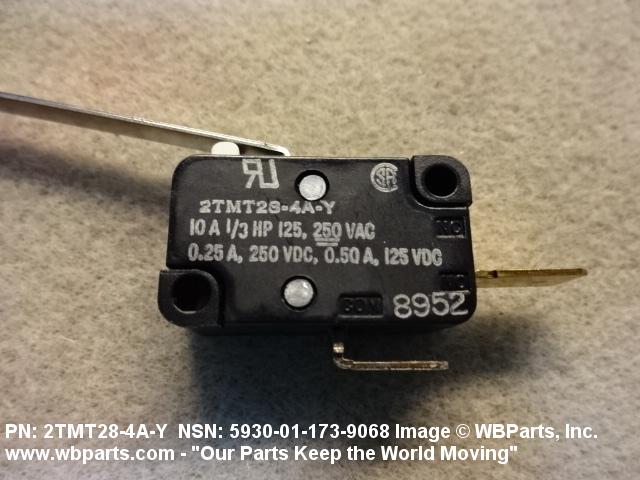

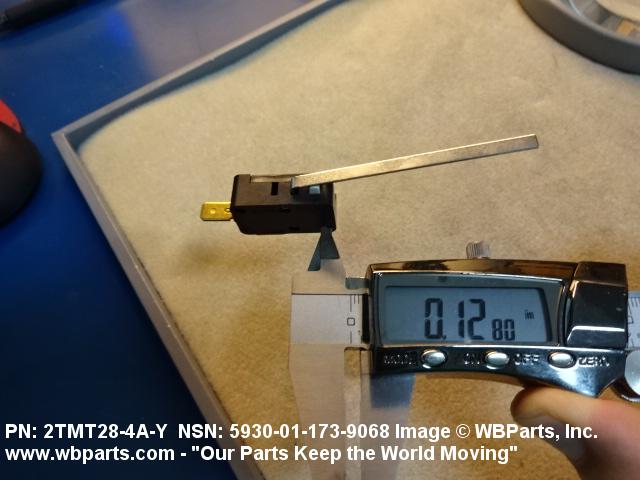

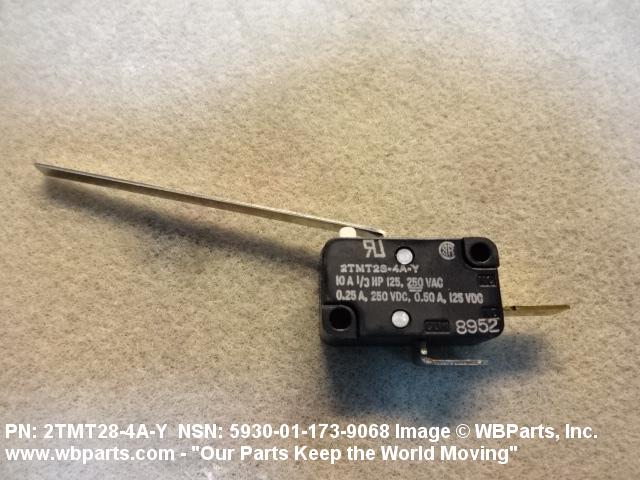

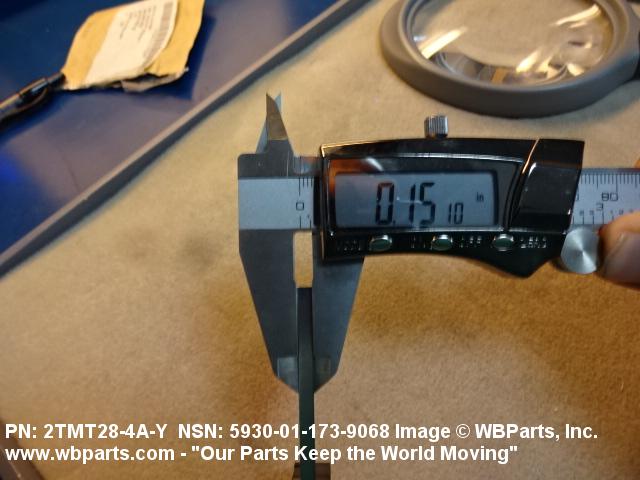

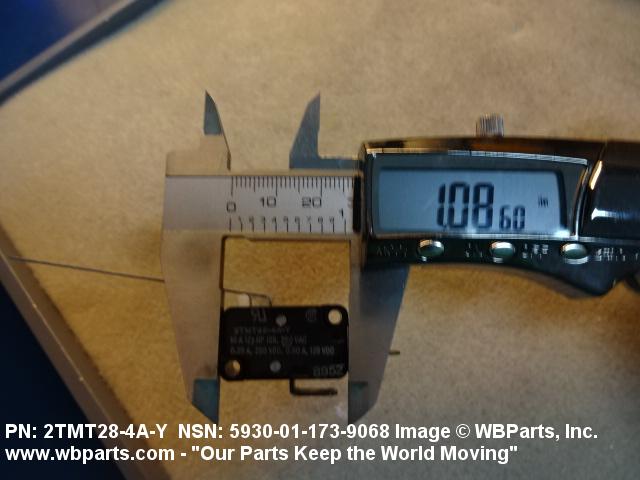

Drawings & Photos | NSN 5930-01-173-9068
Demand History | NSN 5930-01-173-9068
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-173-9068 | 2024-04-114 | 1 | United States |
| 5930-01-173-9068 | 2021-02-41 | 1 | United States |
| 5930-01-173-9068 | 2018-12-340 | 1 | United States |
| 5930-01-173-9068 | 2018-08-225 | 1 | United States |
| 5930-01-173-9068 | 2016-05-131 | 125 | DIBBS |
| 5930-01-173-9068 | 2015-03-64 | 16 | DIBBS |
| 5930-01-173-9068 | 2015-02-34 | 2 | DIBBS |
| 5930-01-173-9068 | 2015-01-27 | 1 | DIBBS |
| 5930-01-173-9068 | 2015-01-14 | 2 | DIBBS |
| 5930-01-173-9068 | 2014-12-343 | 1 | DIBBS |
| 5930-01-173-9068 | 2014-11-329 | 2 | DIBBS |
| 5930-01-173-9068 | 2013-04-95 | 1 | DIBBS |
| 5930-01-173-9068 | 2012-05-141 | 1 | DIBBS |
| 5930-01-173-9068 | 2011-12-336 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-173-9068
Related Products | NSN 5930-01-173-9068
Technical Data | NSN 5930-01-173-9068
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 250.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 250.000 MILLIAMPERES RESISTIVE DC AND 10.000 AMPERES RESISTIVE AC |
| BODY STYLE | 24M HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.875 INCHES NOMINAL |
| BODY LENGTH | 1.095 INCHES NOMINAL |
| BODY WIDTH | 0.400 INCHES NOMINAL |
| BODY HEIGHT | 0.620 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.406 INCHES NOMINAL |
| ACTUATOR STYLE | 41 LEAF |
| ACTUATOR WIDTH | 0.154 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 QUICK DISCONNECT, MALE |
| SWITCH ACTUATING FORCE | 12.0 GRAMS MAXIMUM |
| ACTUATOR MOVEMENT | 0.750 PRETRAVEL INCHES MAXIMUM AND 0.280 OVERTRAVEL INCHES NOMINAL AND 0.187 DIFFERENTIAL INCHES MAXIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.114 INCHES NOMINAL |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS SILVER |
Restrictions/Controls & Freight Information | NSN 5930-01-173-9068
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-173-9068
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
