NSN 5930-01-436-5120 SL1BK, SL1-BK, 01-436-5120
Product Details | SENSITIVE SWITCH
5930-01-436-5120 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: SL1BK, SL1-BK, 5930-01-436-5120, 01-436-5120, 5930014365120, 014365120
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 SEP 1996 | 01-436-5120 | 00399 ( SWITCH, SENSITIVE ) |
Drawings & Photos | NSN 5930-01-436-5120
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-436-5120
Technical Data | NSN 5930-01-436-5120
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 125.0 AC AND 30.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 0.100 AMPERES LAMP AC AND 0.100 AMPERES LAMP DC |

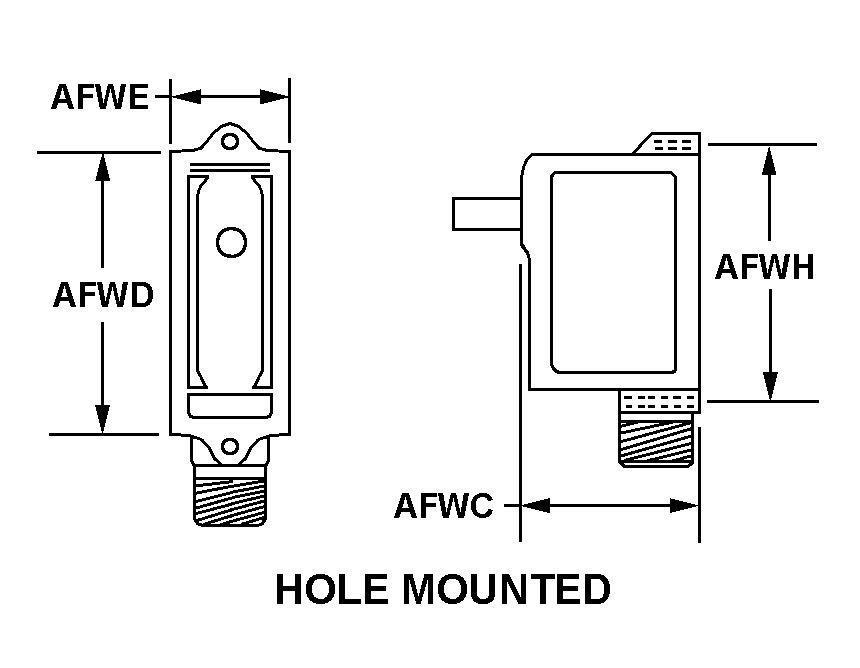

| BODY STYLE | 46M HOLE MOUNTED |
| HOUSING HEIGHT | 32.4 MILLIMETERS NOMINAL |
| HOUSING LENGTH | 44.2 MILLIMETERS NOMINAL |
| HOUSING WIDTH | 18.0 MILLIMETERS NOMINAL |
| ACTUATOR STYLE | 48 ROLLER PLUNGER |
| ACTUATOR ROLLER DIAMETER | 11.0 MILLIMETERS NOMINAL |
| ACTUATOR ROLLER WIDTH | 4.0 MILLIMETERS NOMINAL |
Restrictions/Controls & Freight Information | NSN 5930-01-436-5120
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
