NSN 5930-01-463-3886 LSM2D, T002000698, 01-463-3886
Product Details | SENSITIVE SWITCH
5930-01-463-3886 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: LSM2D, T002000698, 5930-01-463-3886, 01-463-3886, 5930014633886, 014633886
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 MAR 1999 | 01-463-3886 | 00399 ( SWITCH, SENSITIVE ) |
Drawings & Photos | NSN 5930-01-463-3886
Demand History | NSN 5930-01-463-3886
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| LSM2D | 2020-10-294 | 6 | DIBBS |
| 5930-01-463-3886 | 2017-10-291 | 4 | DIBBS |
| 5930-01-463-3886 | 2009-12-357 | 1 | DIBBS |
| 5930-01-463-3886 | 2009-09-271 | 1 | DIBBS |
| 5930-01-463-3886 | 2007-04-114 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-463-3886
Related Products | NSN 5930-01-463-3886
Technical Data | NSN 5930-01-463-3886
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 TWO CIRCUIT, DOUBLE BREAK/DOUBLE MAKE, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 600.0 AC AND 240.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 6.000 AMPERES RESISTIVE AC AND 0.150 AMPERES INDUCTIVE DC AND 0.400 AMPERES RESISTIVE DC |

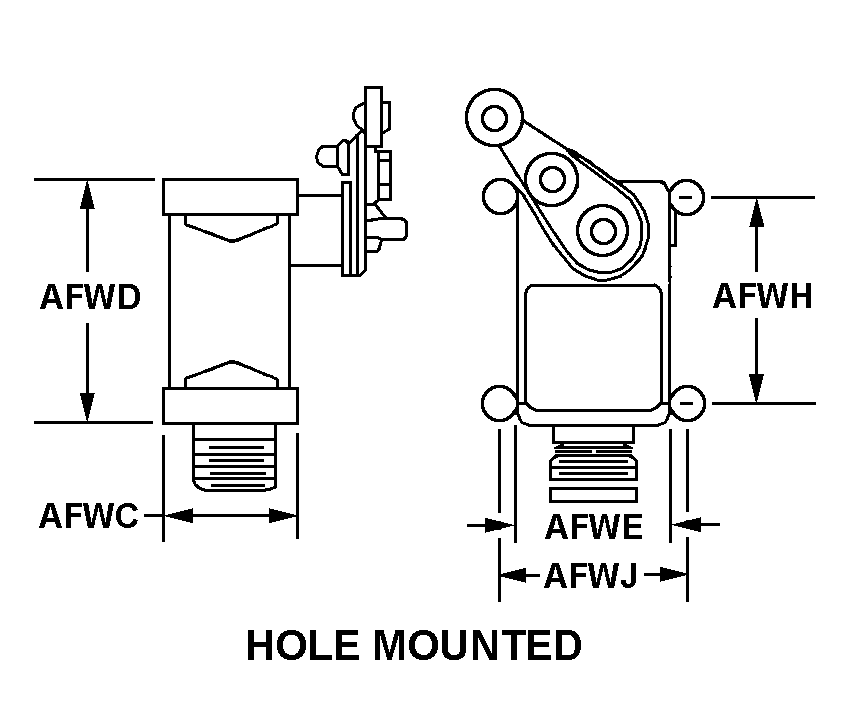

| BODY STYLE | 78M HOLE MOUNTED |
| HOUSING HEIGHT | 1.785 INCHES NOMINAL |
| HOUSING LENGTH | 4.685 INCHES NOMINAL |
| HOUSING WIDTH | 1.875 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO LENGTH | 2.344 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO WIDTH | 1.158 INCHES NOMINAL |
| SWITCH ACTUATOR QUANTITY | 1 |
| ACTUATOR STYLE | 51 ROLLER ARM |
| TERMINAL TYPE AND QUANTITY | 4 SCREW |
| ACTUATOR MOVEMENT | 18.0 PRETRAVEL DEGREES MAXIMUM AND 57.0 OVERTRAVEL DEGREES MINIMUM AND 10.0 DIFFERENTIAL DEGREES MAXIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| SPECIAL FEATURES | THIS P/N IS THE STANDARD SWITCH WITHOUT MODIFICATIONS |
| III END ITEM IDENTIFICATION | BOW THRUSTER |
Restrictions/Controls & Freight Information | NSN 5930-01-463-3886
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-463-3886
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
