NSN 5930-01-467-4586 COM2013, 17SX21T, 17SX21-T
Product Details | SENSITIVE SWITCH
5930-01-467-4586 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: COM2013, 17SX21T, 17SX21-T, 5930-01-467-4586, 01-467-4586, 5930014674586, 014674586
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 AUG 1999 | 01-467-4586 | 00399 ( SWITCH, SENSITIVE ) |

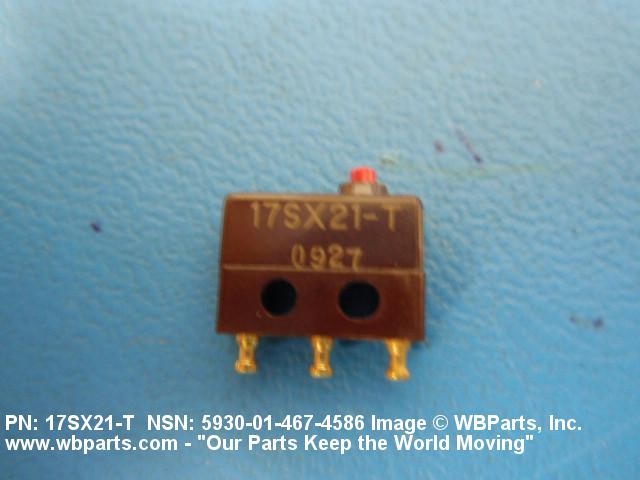

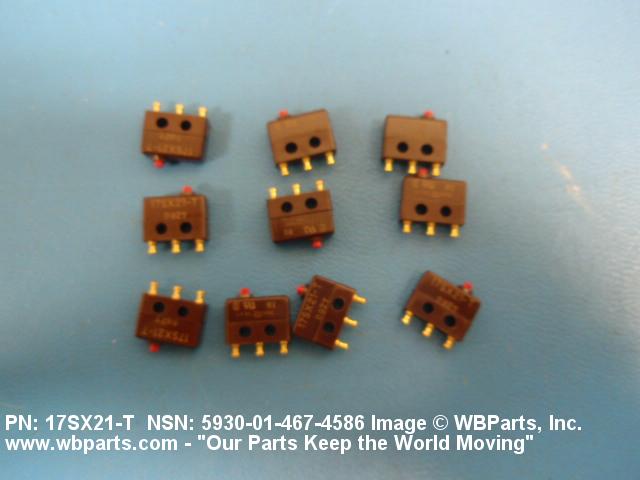

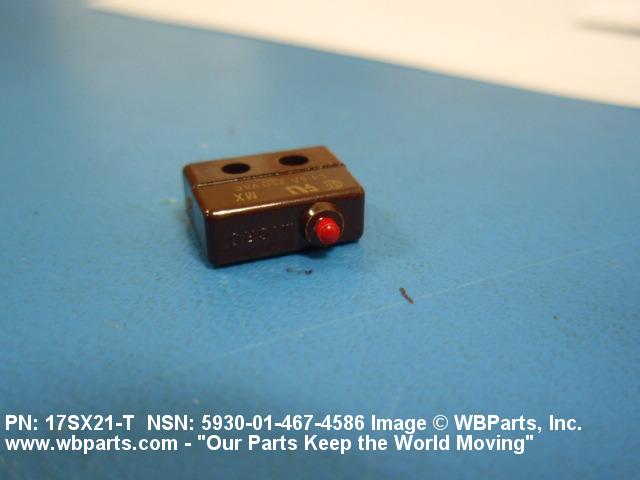

Drawings & Photos | NSN 5930-01-467-4586
Demand History | NSN 5930-01-467-4586
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 17SX21T | 2009-07-202 | 10 | United States |
Cross Reference | NSN 5930-01-467-4586
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-467-4586
Technical Data | NSN 5930-01-467-4586
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 125.0 AC OR 250.0 AC OR 480.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 15.000 AMPERES RESISTIVE AC |
| BODY STYLE | 23M HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.188 INCHES NOMINAL |
| BODY LENGTH | 0.500 INCHES NOMINAL |
| BODY WIDTH | 0.200 INCHES NOMINAL |
| BODY HEIGHT | 0.350 INCHES NOMINAL |
| ACTUATOR STYLE | 1 ROUND |
| ACTUATOR DIAMETER | 0.063 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.050 INCHES NOMINAL |
| ACTUATOR FREE POSITION HEIGHT | 0.320 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 TURRET |
| SWITCH ACTUATING FORCE | 5.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 1.0 OUNCES MAXIMUM |
| ACTUATOR MOVEMENT | 0.020 PRETRAVEL INCHES MAXIMUM AND 0.004 OVERTRAVEL INCHES MINIMUM AND 0.003 DIFFERENTIAL INCHES MAXIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.090 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5930-01-467-4586
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
