NSN 5935-01-182-1672 3130232G002, 3940215017, 394-0215-017

Product Details | ELECTRICAL PLUG CONNECTOR BODY


5935-01-182-1672 The main or principal part of a CONNECTOR, PLUG, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is not designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR PLUG, ELECTRICAL. For items without insert(s), see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: 3130232G002, 3940215017, 394-0215-017, 5935-01-182-1672, 01-182-1672, 5935011821672, 011821672

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG) NSN Assign. NIIN
59 20 JUN 1984 01-182-1672

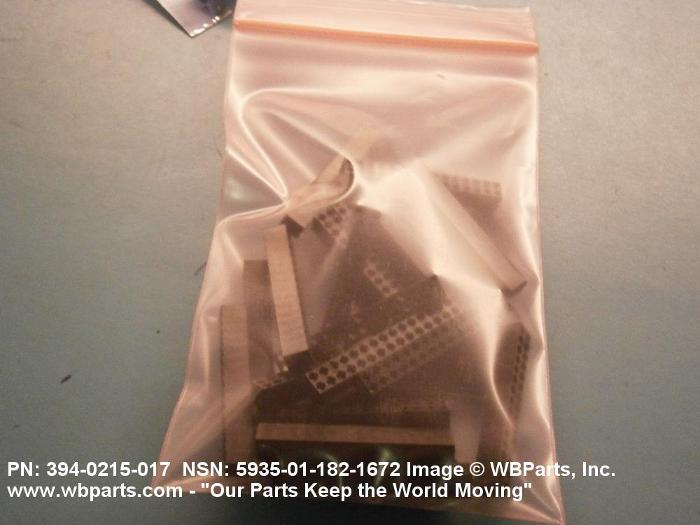

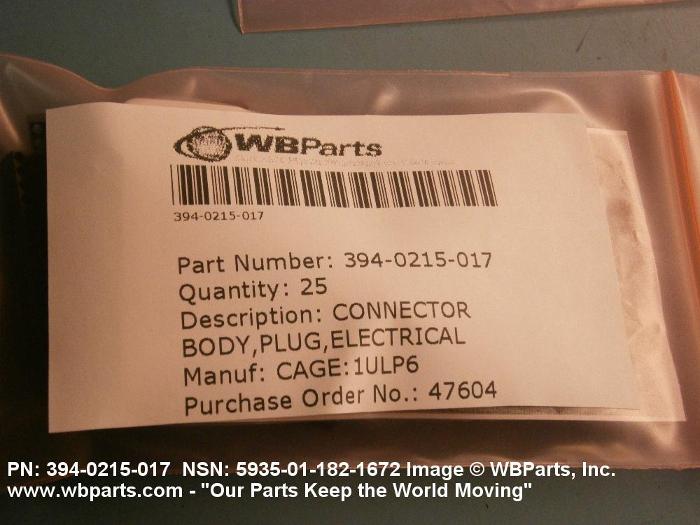

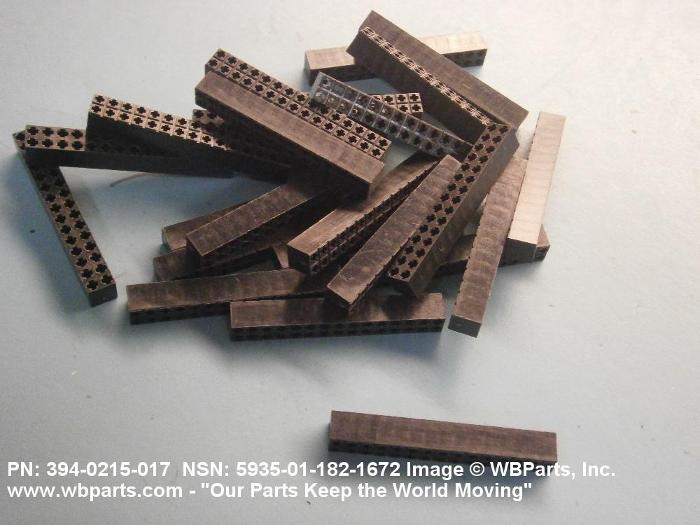

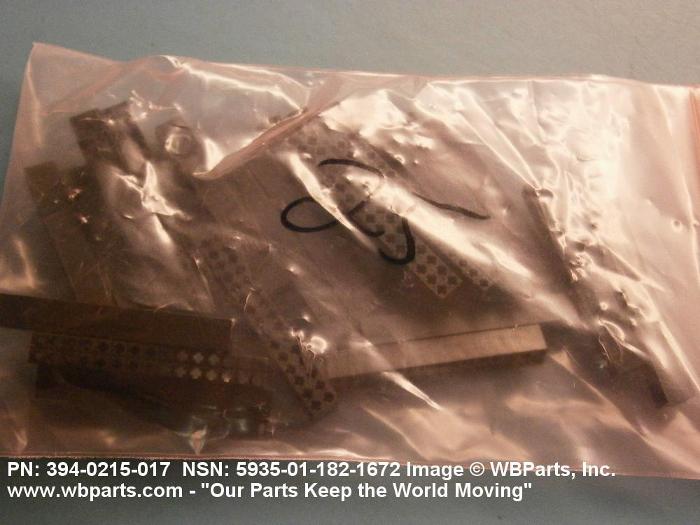

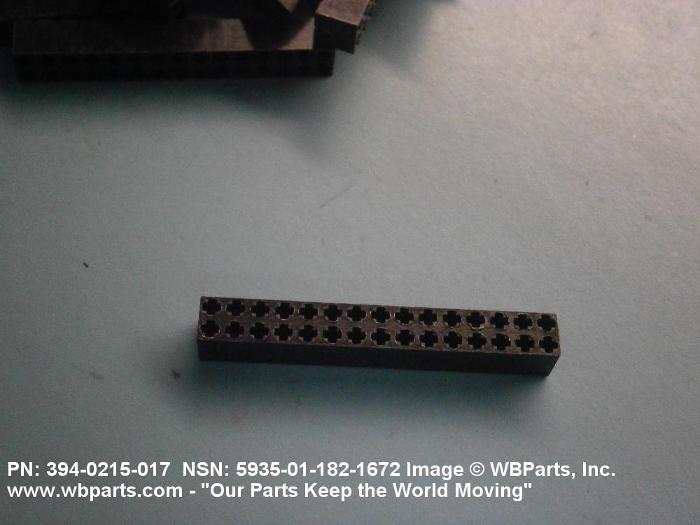

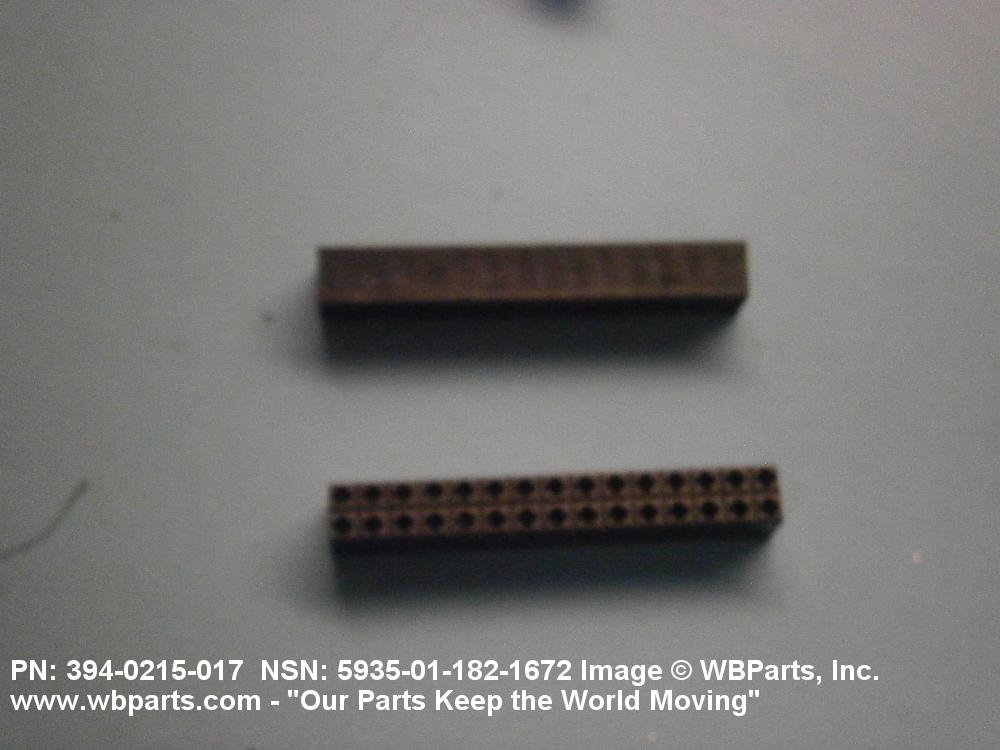

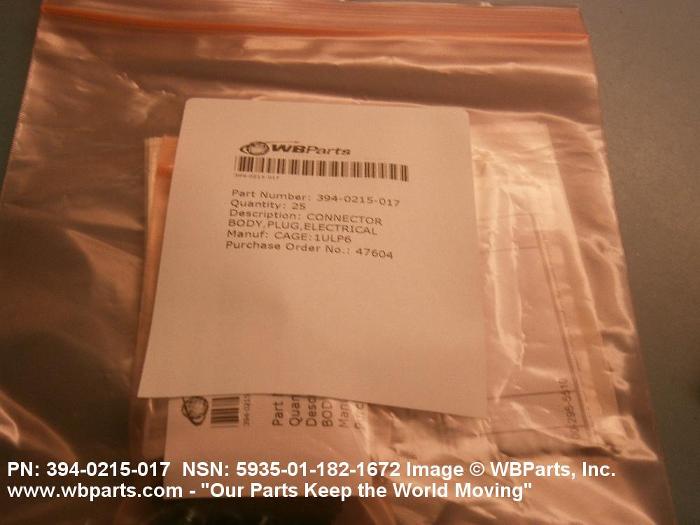

Drawings & Photos | NSN 5935-01-182-1672



Demand History | NSN 5935-01-182-1672


Part Number Request Date QTY Origin
3940215017 2015-02-24 6 US
5935-01-182-1672 2013-02-17 15 DIBBS
5935-01-182-1672 2013-01-30 3 DIBBS
3940215017 2012-05-03 25 United States
3940215017 2012-05-03 95 United States
3940215017 2012-05-03 25 United States
3940215017 2012-05-03 95 United States

Cross Reference | NSN 5935-01-182-1672


Part Number Cage Code Manufacturer
3130232G002 28527 EXELIS INC. DBA ELECTRONIC SYSTEMS, INTEGRATED
394-0215-017 31413 AMPHENOL CORPORATION DBA AMPHENOL TCS
394-0215-017 77820 AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 5935-01-182-1672


Technical Data | NSN 5935-01-182-1672


Characteristic Specifications
BODY STYLE 28A STRAIGHT SHAPE
OVERALL LENGTH 1.500 INCHES NOMINAL
OVERALL HEIGHT 0.200 INCHES NOMINAL
OVERALL WIDTH 0.200 INCHES NOMINAL
MATING END QUANTITY 1
CONTACT POSITION ARRANGEMENT STYLE AAAE 2 ROWS OF CONTACTS NON-INSERTED BOARD SINGLE MATING END
INSERT MATERIAL PLASTIC POLYESTER SINGLE MATING END
MISSING CONTACT TYPE AND QUANTITY 30 HERMAPHRODITE SINGLE MATING END SINGLE CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE

Restrictions/Controls & Freight Information | NSN 5935-01-182-1672


Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 061680 ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 658 unknown
Originating Activity Code TX Defense Supply Center Columbus
Columbus, OH 43218
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5935-01-182-1672


Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
