NSN 5950-01-090-9130 C88393, C8839-3, X1214
Product Details | PULSE TRANSFORMER
5950-01-090-9130 A transformer designed to transfer pulses of nonsinusoidal wave forms between circuits without basically changing the wave forms.
Part Alternates: C88393, C8839-3, X1214, X12141, X-1214-1, 92323, 9-232-3, 93053, 9-305-3, 5950-01-090-9130, 01-090-9130, 5950010909130, 010909130
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 FEB 1980 | 01-090-9130 | 00208 ( TRANSFORMER, PULSE ) |

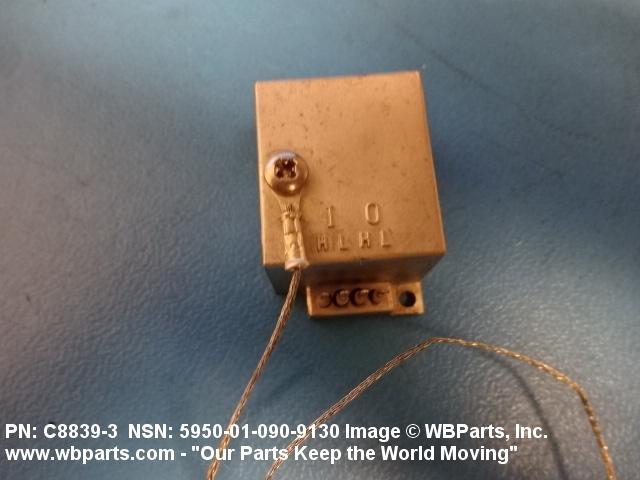

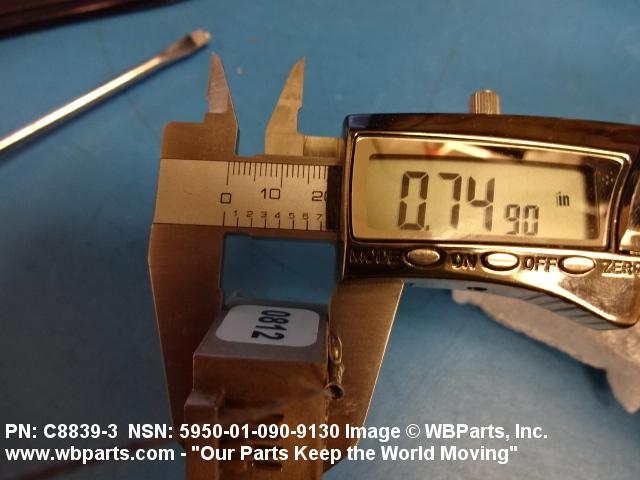

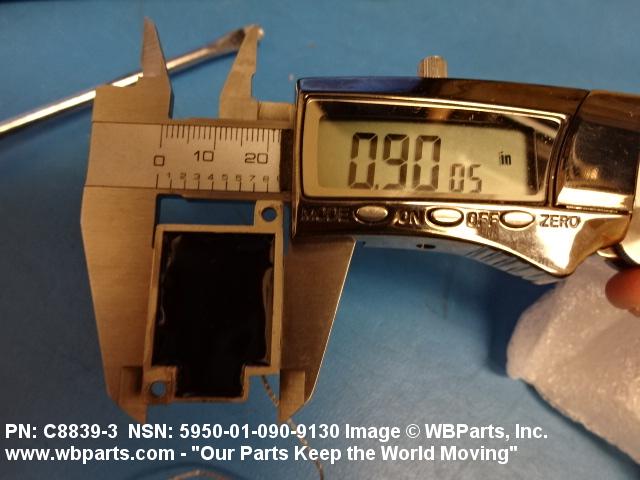

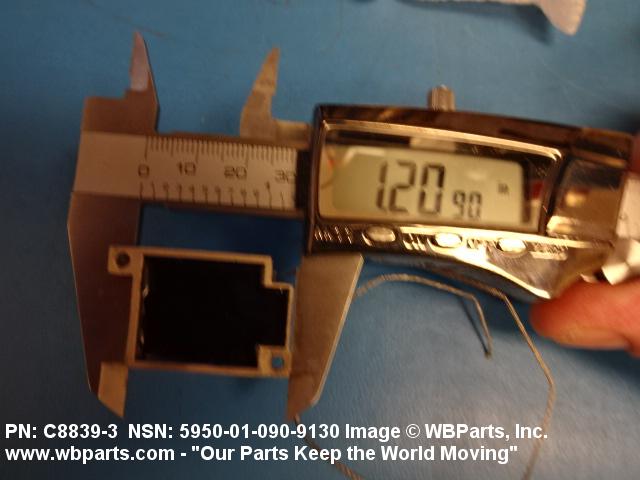

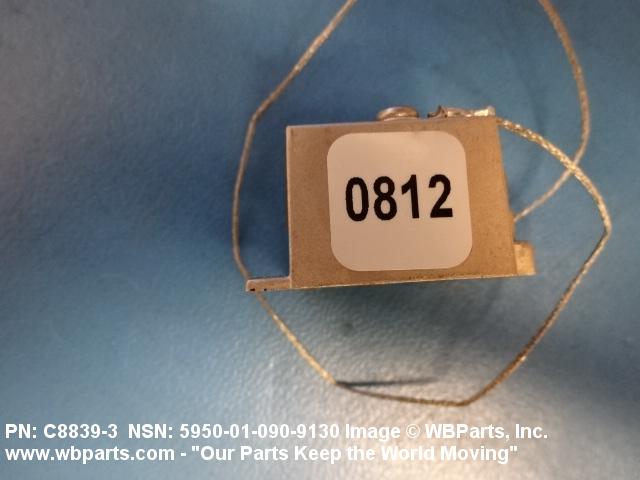

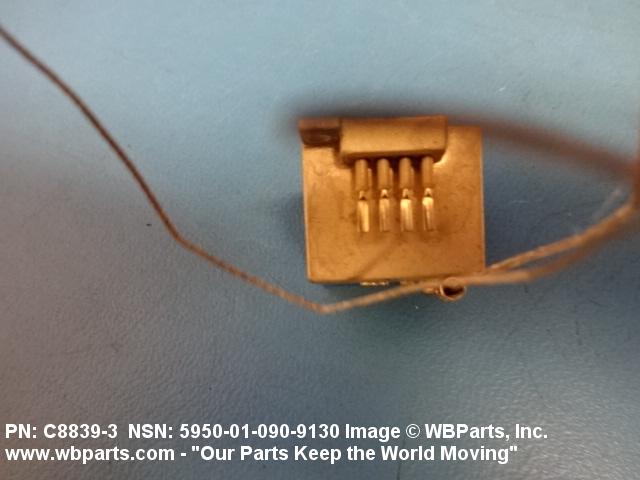

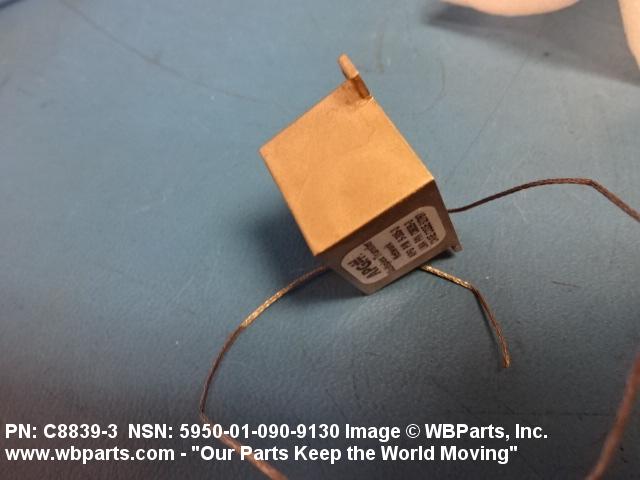

Drawings & Photos | NSN 5950-01-090-9130
Demand History | NSN 5950-01-090-9130
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9-305-3 | 2024-04-116 | 250 | DIBBS |
| C8839-3 | 2024-04-116 | 250 | DIBBS |
| X-1214-1 | 2024-04-116 | 250 | DIBBS |
| 9-305-3 | 2022-03-76 | 315 | DIBBS |
| C8839-3 | 2022-03-76 | 315 | DIBBS |
| X-1214-1 | 2022-03-76 | 315 | DIBBS |
| 5950-01-090-9130 | 2021-08-238 | 5 | Taiwan |
| 9-305-3 | 2021-06-172 | 7 | DIBBS |
| C8839-3 | 2021-06-172 | 7 | DIBBS |
| X-1214-1 | 2021-06-172 | 7 | DIBBS |
| 9-305-3 | 2021-06-153 | 7 | DIBBS |
| C8839-3 | 2021-06-153 | 7 | DIBBS |
| X-1214-1 | 2021-06-153 | 7 | DIBBS |
| 9-305-3 | 2021-05-129 | 52 | DIBBS |
| C8839-3 | 2021-05-129 | 52 | DIBBS |
| X-1214-1 | 2021-05-129 | 52 | DIBBS |
| 9-305-3 | 2021-01-14 | 239 | DIBBS |
| C8839-3 | 2021-01-14 | 239 | DIBBS |
| X-1214-1 | 2021-01-14 | 239 | DIBBS |
| 9-305-3 | 2021-01-03 | 239 | DIBBS |
| C8839-3 | 2021-01-03 | 239 | DIBBS |
| X-1214-1 | 2021-01-03 | 239 | DIBBS |
| 9-305-3 | 2020-11-328 | 120 | DIBBS |
| C8839-3 | 2020-11-328 | 120 | DIBBS |
| X-1214-1 | 2020-11-328 | 120 | DIBBS |
| 9-305-3 | 2020-11-313 | 120 | DIBBS |
| C8839-3 | 2020-11-313 | 120 | DIBBS |
| X-1214-1 | 2020-11-313 | 120 | DIBBS |
| 5950-01-090-9130 | 2020-02-38 | 2 | Taiwan |
| 9-305-3 | 2020-01-30 | 108 | DIBBS |
| C8839-3 | 2020-01-30 | 108 | DIBBS |
| X-1214-1 | 2020-01-30 | 108 | DIBBS |
| 9-305-3 | 2019-08-213 | 130 | DIBBS |
| C8839-3 | 2019-08-213 | 130 | DIBBS |
| X-1214-1 | 2019-08-213 | 130 | DIBBS |
| 5950-01-090-9130 | 2019-04-118 | 5 | Taiwan |
| 5950-01-090-9130 | 2019-02-51 | 45 | TW |
| 5950-01-090-9130 | 2018-12-361 | 454 | DIBBS |
| 5950-01-090-9130 | 2018-11-317 | 243 | DIBBS |
| 5950-01-090-9130 | 2018-11-305 | 243 | DIBBS |
| 5950-01-090-9130 | 2018-08-221 | 166 | DIBBS |
| 5950-01-090-9130 | 2018-05-151 | 271 | DIBBS |
| 5950-01-090-9130 | 2015-06-159 | 237 | DIBBS |
| 5950-01-090-9130 | 2015-01-28 | 202 | DIBBS |
| 5950-01-090-9130 | 2014-11-322 | 130 | DIBBS |
| 5950-01-090-9130 | 2011-11-325 | 103 | DIBBS |
| 5950-01-090-9130 | 2011-06-166 | 243 | DIBBS |
| 5950-01-090-9130 | 2006-06-171 | 119 | DIBBS |
Cross Reference | NSN 5950-01-090-9130
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9-232-3 | 52797 | AUTOMATION PRODUCTS GROUP, INC. |
| 9-305-3 | 52797 | AUTOMATION PRODUCTS GROUP, INC. |
| C8839-3 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| X-1214-1 | 90095 | PULSE ELECTRONICS CORPORATION DBA PULSE COMPONENTS DIVISION |
| X1214 | 90095 | PULSE ELECTRONICS CORPORATION DBA PULSE COMPONENTS DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5950-01-090-9130
Related Products | NSN 5950-01-090-9130
Technical Data | NSN 5950-01-090-9130
| Characteristic | Specifications |
|---|---|
| TERMINAL TYPE AND QUANTITY | 4 TAB, SOLDER LUG |
| (NON-CORE DATA) PEAK VOLTAGE RATING | 1.5 VOLTS SINGLE COMPONENT SINGLE PRIMARY 6.0 VOLTS SINGLE COMPONENT SINGLE SECONDARY |
| DC RESISTANCE RATING IN OHMS | 6.000 SINGLE COMPONENT SINGLE PRIMARY 6.000 SINGLE COMPONENT SINGLE SECONDARY |
| INDUCTANCE RATING | 20.00 MILLIHENRIES NOMINAL SINGLE COMPONENT SINGLE PRIMARY |
| IMPEDANCE RATING IN OHMS | 2000.0 NOMINAL SINGLE COMPONENT SINGLE PRIMARY 75.0 NOMINAL SINGLE COMPONENT SINGLE SECONDARY |
| FREQUENCY RATING | 1.0 MEGAHERTZ NOMINAL SINGLE COMPONENT |
| PRIMARY TO SECONDARY TURN RATIO | 1 TO 1 SINGLE COMPONENT |
| WINDING FUNCTION AND QUANTITY | 1 PRIMARY AND 1 SECONDARY SINGLE COMPONENT |
| MOUNTING METHOD | UNTHREADED HOLE SINGLE GROUP |
| MOUNTING FACILITY QUANTITY | 2 SINGLE GROUP |
| MOUNTING HOLE DIAMETER | 0.090 INCHES NOMINAL SINGLE GROUP |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.190 INCHES MINIMUM AND 1.210 INCHES MAXIMUM SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.670 INCHES MINIMUM AND 0.690 INCHES MAXIMUM SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| INCLOSURE TYPE | FULLY INCLOSED |
| BODY LENGTH | 1.390 INCHES MINIMUM AND 1.410 INCHES MAXIMUM |
| BODY WIDTH | 0.865 INCHES MINIMUM AND 0.895 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.830 INCHES MAXIMUM |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III MAXIMUM OPERATING TEMP | 125.0 DEG CELSIUS |
| (NON-CORE DATA) CUBIC MEASURE | 1.0 CUBIC INCHES |
Restrictions/Controls & Freight Information | NSN 5950-01-090-9130
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063420 | TRANSFORMERS,NOI,OR TRANSFORMER PAR |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 595 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5950-01-090-9130
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
