NSN 5950-01-161-7372 M39010/09-A2R7KM, M3901009A2R7KM, MIL-C-39010/9

Product Details | RADIO FREQUENCY COIL

5950-01-161-7372 An item consisting of a partial turn as one or more turns of wire or other conductive material which constitutes one continuous untapped winding. It may be wound or formed in other than a circular manner and may be self-supporting, requiring no coil form. It is specifically designed to furnish inductive reactance in a circuit carrying radio frequency current ranging from 20 kilohertz (kilocycles) and above. It may include tuning devices, integral resistors and capacitors; however, excludes FILTER (as modified). The coil has only two electrical terminals. For items having tapped winding or more than one winding - see TRANSFORMER, RADIO FREQUENCY. For coils wound on resistors, which are designed to be inserted in the circuit of a radio frequency stage to suppress high frequency parasitic oscillations, see SUPPRESSOR, PARASITIC.

Part Alternates: M39010/09-A2R7KM, M3901009A2R7KM, MIL-C-39010/9, MILC390109, LS35064A2C100, 5950-01-161-7372, 01-161-7372, 5950011617372, 011617372

Electrical and Electronic Equipment Components | Coils and Transformers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	09 SEP 1983	01-161-7372	06338 ( COIL, RADIO FREQUENCY )

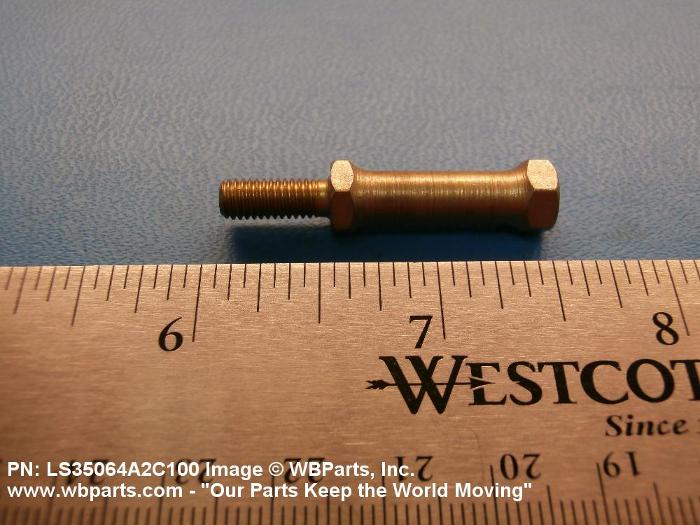

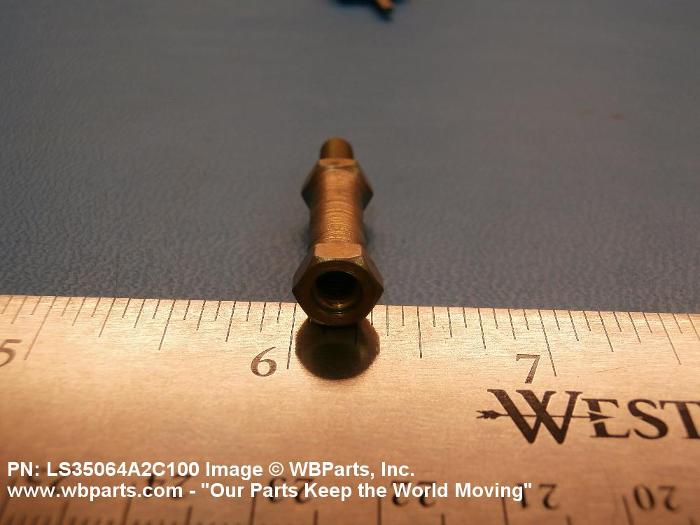

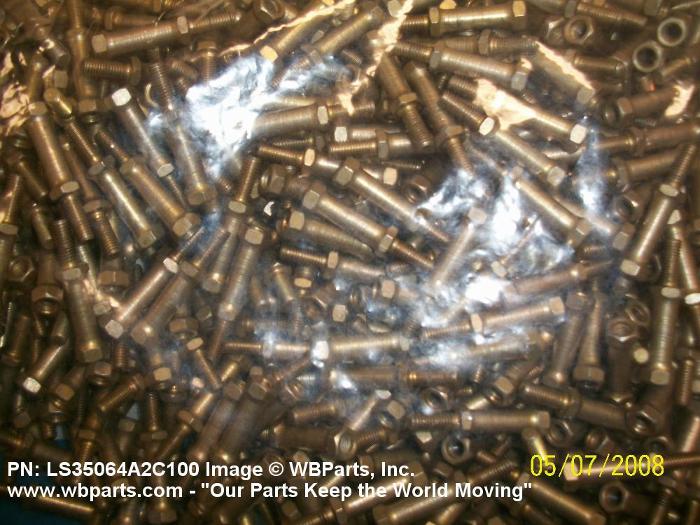

Drawings & Photos | NSN 5950-01-161-7372
