Product Details | ELECTRICAL DUMMY LOAD
5985-00-859-7059 A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL.
Part Alternates: 0300147000, 03-00147-000 , 1132, 25997, 5985-00-859-7059, 00-859-7059, 5985008597059, 008597059
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-859-7059 | 00335 ( DUMMY LOAD, ELECTRICAL ) |
Drawings & Photos | NSN 5985-00-859-7059
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5985-00-859-7059
5985-00-859-7965, 5985-00-859-7968, 5985-00-859-9361, 5985-00-859-9954, 5985-00-860-0841
Technical Data | NSN 5985-00-859-7059
| Characteristic | Specifications |
|---|---|

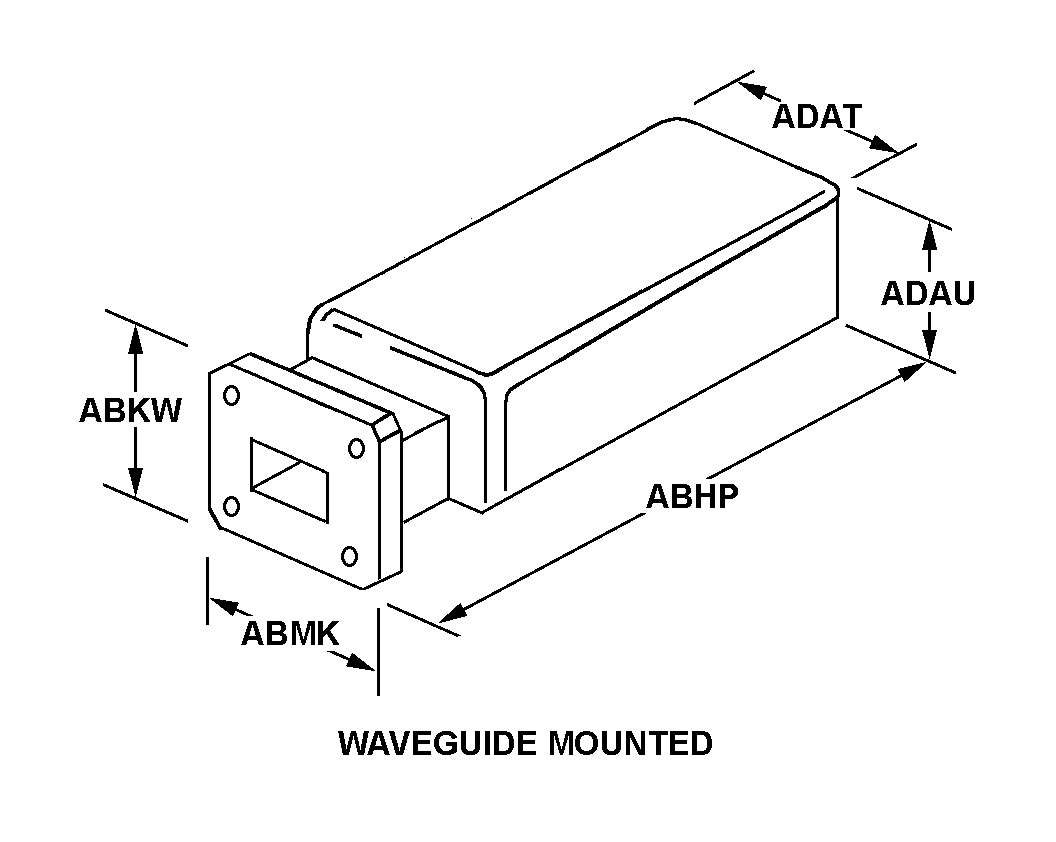

| STYLE DESIGNATOR | 23A WAVEGUIDE MOUNTED |
| OVERALL LENGTH | 5.266 INCHES MINIMUM AND 5.484 INCHES MAXIMUM |
| IMPEDANCE RATING IN OHMS | NOT RATED |
| TERMINATION TYPE | WAVEGUIDE FLANGE |
| WAVEGUIDE FLANGE DESIGNATION | UG-425/U |
| COOLING METHOD | SELF-COOLED |
| OPERATING POSITION | HORIZONTAL |
| SPECIAL FEATURES | HAS 0.687 IN. SLIDING ADJUSTMENT |
