Product Details | ELECTRICAL DUMMY LOAD
5985-01-112-0735 A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL.
Part Alternates: MDC91275112, MDC91275-112, 654VE48295, 654VE4829-5, 717, 112717, 112-717, 5985-01-112-0735, 01-112-0735, 5985011120735, 011120735
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 APR 1981 | 01-112-0735 | 00335 ( DUMMY LOAD, ELECTRICAL ) |

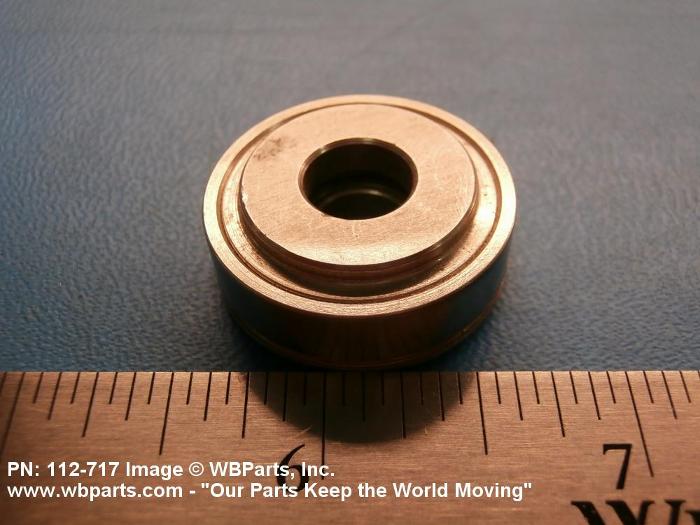

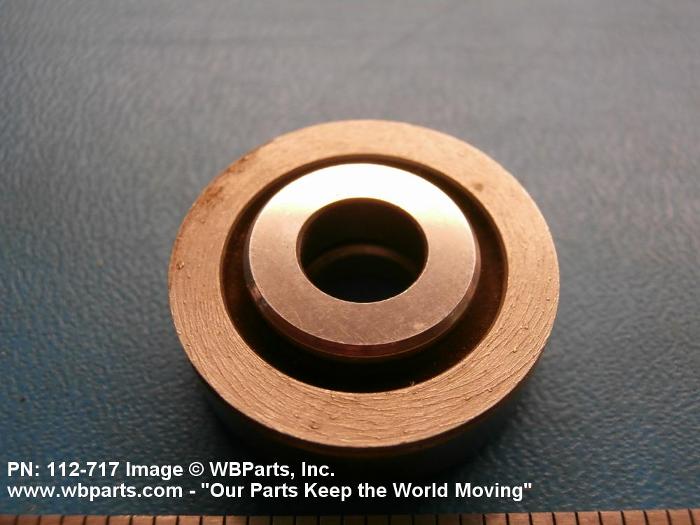

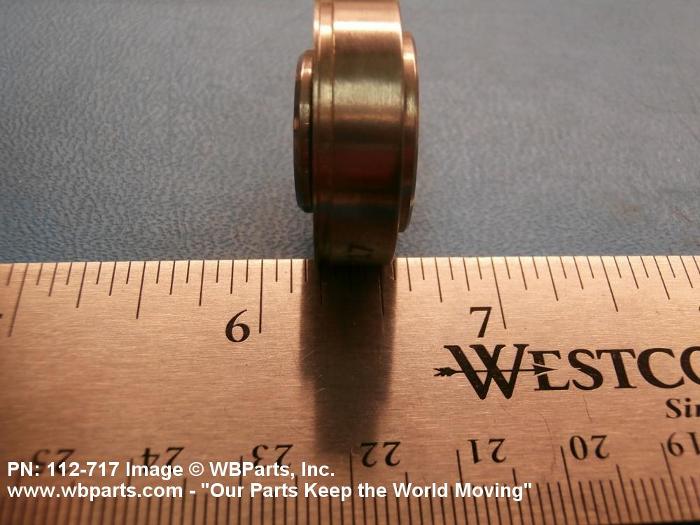

Drawings & Photos | NSN 5985-01-112-0735
Demand History | NSN 5985-01-112-0735
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 717 | 2022-01-24 | 6 | Malaysia |
| 717 | 2022-01-19 | 17 | Malaysia |
| 717 | 2021-04-12 | 1 | Malaysia |
| 717 | 2021-03-02 | 6 | Malaysia |
| 5985-01-112-0735 | 2010-08-27 | 5 | DIBBS |
| 5985-01-112-0735 | 2009-12-24 | 4 | DIBBS |
| 5985-01-112-0735 | 2008-08-19 | 2 | DIBBS |
| 5985-01-112-0735 | 2007-03-08 | 3 | DIBBS |
| 5985-01-112-0735 | 2005-12-01 | 2 | DIBBS |
Cross Reference | NSN 5985-01-112-0735
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 112-717 | 0R8N4 | ADVANCED TECHNICAL MATERIALS, INC. DBA A T M |
| 654VE4829-5 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| 717 | 15305 | OMEGA LABORATORIES INC |
| MDC91275-112 | 52335 | DAL-TECH DEVICES, INC. DBA MICROWAVE DISTRIBUTORS COMPANY |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5985-01-112-0735
5985-01-112-0747, 5985-01-112-1136, 5985-01-112-1223, 5985-01-112-1284, 5985-01-112-1285
Technical Data | NSN 5985-01-112-0735
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 18A WAVEGUIDE MOUNTED |
| OVERALL LENGTH | 7.500 INCHES NOMINAL |
| OVERALL HEIGHT | 3.000 INCHES NOMINAL |
| OVERALL WIDTH | 3.000 INCHES NOMINAL |
| FREQUENCY RANGE RATING | 7.050 TO 10.000 GIGAHERTZ |
| POWER RATING | 325.000 WATTS AVERAGE AND 300.000 KILOWATTS PEAK |
| IMPEDANCE RATING IN OHMS | NOT RATED |
| VOLTAGE STANDING WAVE RATIO | 1.10 |
| VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE | 7.050 TO 10.000 GIGAHERTZ |
| TERMINATION TYPE | WAVEGUIDE FLANGE |
| INTERNAL OPERATING PRESSURE | 30.0 POUNDS PER SQUARE INCH GAGE |
| WAVEGUIDE FLANGE DESIGNATION | UG-138/U |
| COOLING METHOD | SELF-COOLED |
| OPERATING POSITION | ALL POSITIONS |
Restrictions/Controls & Freight Information | NSN 5985-01-112-0735
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-112-0735
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
