5985-01-039-8437 A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL.
Part Alternates: 010398437
Communication, Detection, and Coherent Radiation Equipment | Radar Equipment, Airborne
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
58 | 01-039-8437 | 00335 ( DUMMY LOAD, ELECTRICAL ) |
Drawings & Photos | NSN 5841-01-039-8437
Demand History | NSN 5985-01-039-8437
Request a Quote
Comments | What our customers are saying...
Related Products | NSN 5985-01-039-8437
5841-01-039-8470, 5841-01-039-8471, 5841-01-039-8583, 5841-01-039-8584, 5841-01-039-8587
Technical Data | NSN 5985-01-039-8437
Characteristic | Specifications |
---|---|

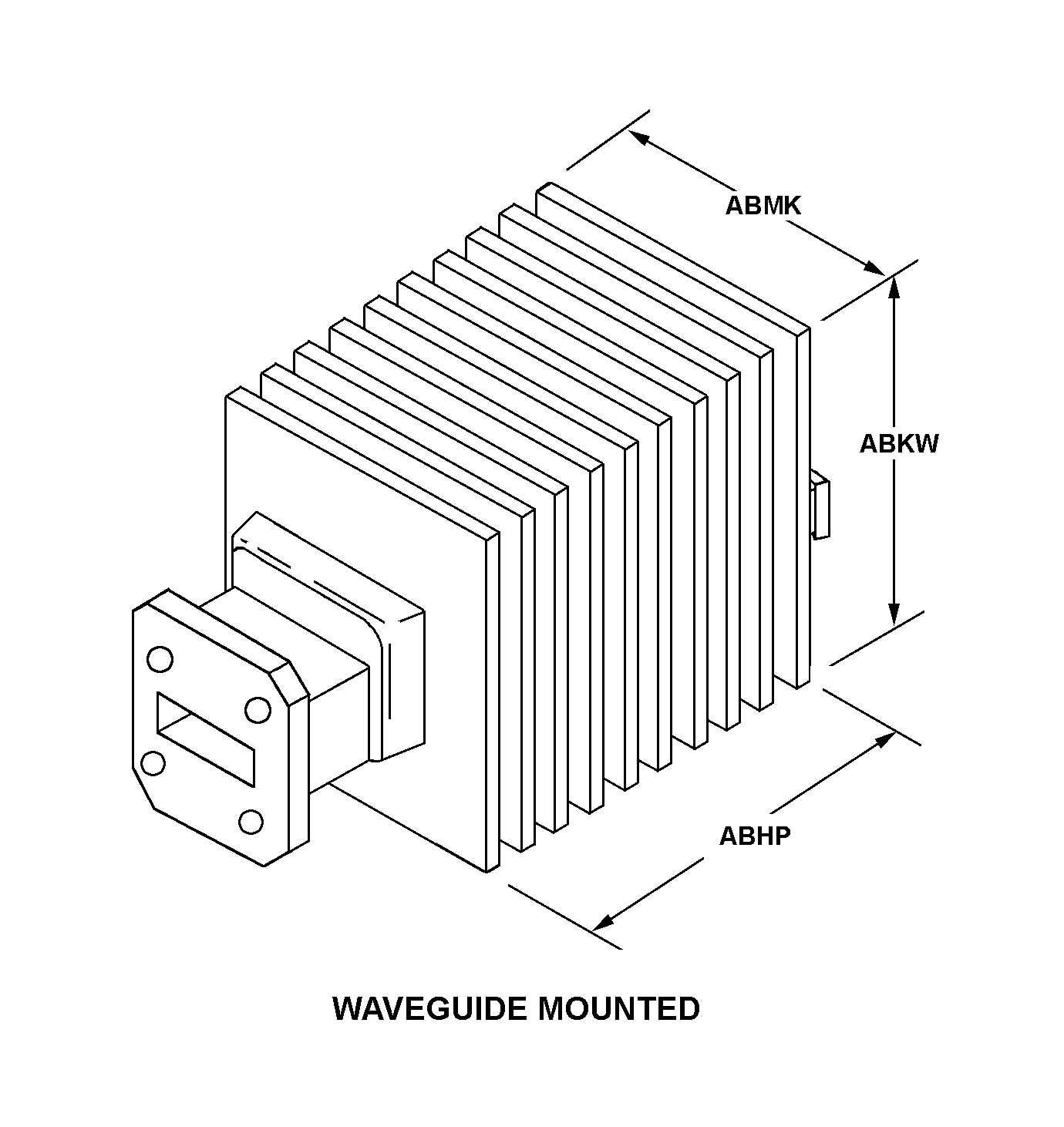

STYLE DESIGNATOR | 18A WAVEGUIDE MOUNTED |
OVERALL LENGTH | 6.340 INCHES NOMINAL |
OVERALL WIDTH | 2.500 INCHES NOMINAL |
TERMINATION TYPE | WAVEGUIDE FLANGE |
COOLING METHOD | SELF-COOLED |
III FSC APPLICATION DATA | RADAR SET,FIRE CONTROL SYSTEM,AIRBORNE |
MANUFACTURERS CODE | 21845 |
DESIGN CONTROL REFERENCE | 12874 |
