NSN 5999-00-922-4894 10247DAP, 10247-DAP, 11041047
Product Details | ELECTRICAL-ELECTRONIC COMPONENT MOUNTING PAD
5999-00-922-4894 An item fabricated from electrically nonconductive material specifically designed to provide a support for mounting an electrical and/or an electronic component such as a semiconductor device, relay, or resistor into the next higher assembly. It isolates the component from the mounting surface of the next higher assembly, it may act as a strain relief to avoid damage to the component seal, and it may permit soldering of the component to the next higher assembly without damage. It includes holes, notches, or other provisions for physical alignment and spacing of electrical leads and/or other mounting facilities projecting from the component it mounts. It may also afford protection from shock or vibration. It may be either nonthermally conductive which protects the component from temperature changes in the next higher assembly or it may be thermally conductive which permits heat generated in the component to be drained out to a heat sink. For items whose function is electrical insulation only, see INSULATOR, (as modified). Excludes HOLDER, (as modified); RETAINER, (as modified), and SPACER, PLATE.
Part Alternates: 10247DAP, 10247-DAP, 11041047, 11041047-1, 12677141, 1267714-1, 14090330-4, 16600171004, 16600171-004, 2626576, 262657-6, 3851111, 385111-1, 5L.5591.002.83, 5L559100283, 60903361, 6090336-1, 771730DAP, 7717-30DAP, 810AS4634, 810AS463-4, 86009711, 860097-11, 5999-00-922-4894, 00-922-4894, 5999009224894, 140903304, 110410471, 009224894
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 APR 1968 | 00-922-4894 | 61934 ( MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT ) |
Drawings & Photos | NSN 5999-00-922-4894
Cross Reference | NSN 5999-00-922-4894
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10247-DAP | 07047 | ROSS MILTON CO THE |
| 10247DAP | 10247 | CADILLAC STAMP CO |
| 11041047 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 11041047-1 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 1267714-1 | 70143 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN ELECTRONIC |
| 14090330-4 | F6151 | SAFRAN |
| 14090330-4 | FAQ15 | SAGEM DEFENSE SECURITE - GROUPESAFRAN |
| 16600171-004 | 28009 | SYPRIS ELECTRONICS, LLC DIV SYPRIS ELECTRONICS, LLC - |
| 262657-6 | 01534 | RAYTHEON COMPANY DBA RAYTHEON |
| 385111-1 | 00752 | EDO CORPORATION DIV EDO CORPORATION AP&T |
| 5L.5591.002.83 | D1901 | AIRBUS DEFENCE AND SPACE GMBH DIV SEPS |
| 5L.5591.002.83 | D6513 | TELEFUNKEN RADIO COMMUNICATIONSYSTEMS GMBH & CO. KG |
| 6090336-1 | 03640 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 7717-30DAP | 13103 | THERMALLOY CO INC |
| 7717-30DAP | C7407 | IV-ELECTRONIC KLAUS VESPERMANN KG |
| 810AS463-4 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 860097-11 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 860097-11 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-00-922-4894
Technical Data | NSN 5999-00-922-4894
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 22B DISK |
| OVERALL HEIGHT | 0.075 INCHES NOMINAL |
| OVERALL DIAMETER | 0.375 INCHES NOMINAL |
| COLOR | BLACK |
| MATERIAL | PLASTIC DIALLYL PHTHALATE MINERAL FILLED |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14F,TYPE SDG MIL SPEC SINGLE MATERIAL RESPONSE |

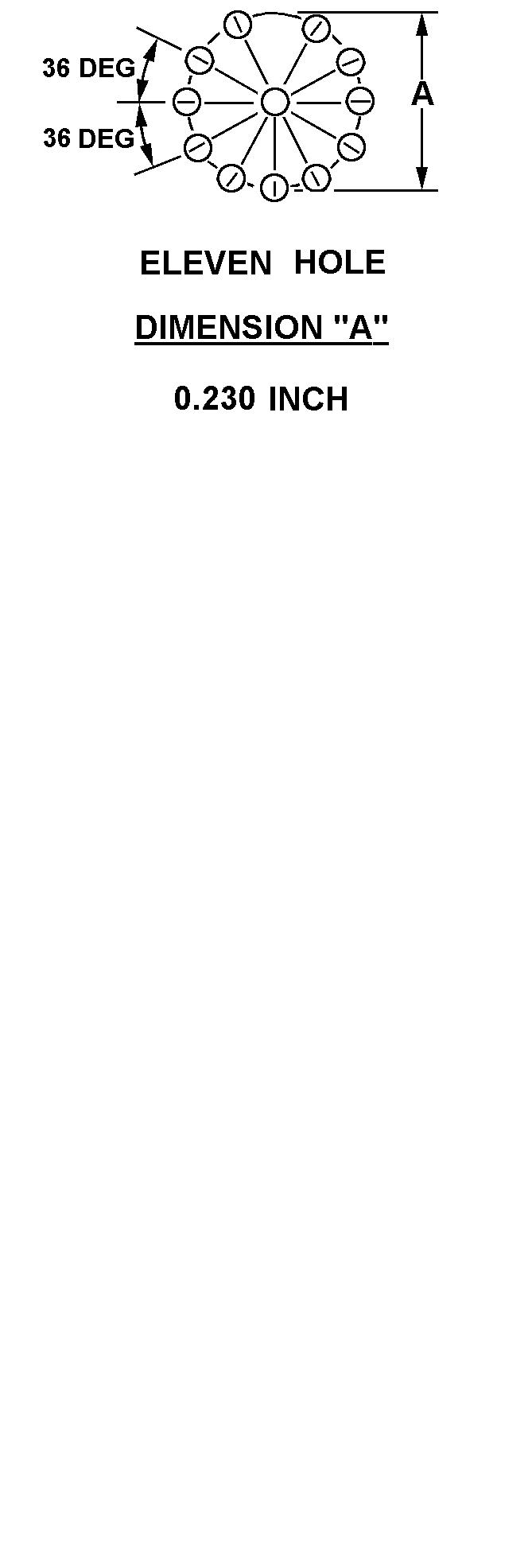

| ACCOMMODATED DEVICE MOUNTING HOLE PATTERN STYLE | 1101B ELEVEN HOLE - 0.230 INCH |
| ACCOMMODATED DEVICE MOUNTING HOLE QUANTITY | 11 |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 UNTHREADED HOLE FIRST MOUNTING FACILITY 10 UNTHREADED HOLE SECOND MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.160 INCHES NOMINAL FIRST MOUNTING FACILITY 0.036 INCHES NOMINAL SECOND MOUNTING FACILITY |
| SPECIFICATION/STANDARD DATA | 18876-11041047 MANUFACTURERS SPECIFICATION CONTROL |
Restrictions/Controls & Freight Information | NSN 5999-00-922-4894
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093600 | BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-00-922-4894
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
