Product Details | ELECTRICAL-ELECTRONIC COMPONENT MOUNTING PAD
5999-00-925-6521 An item fabricated from electrically nonconductive material specifically designed to provide a support for mounting an electrical and/or an electronic component such as a semiconductor device, relay, or resistor into the next higher assembly. It isolates the component from the mounting surface of the next higher assembly, it may act as a strain relief to avoid damage to the component seal, and it may permit soldering of the component to the next higher assembly without damage. It includes holes, notches, or other provisions for physical alignment and spacing of electrical leads and/or other mounting facilities projecting from the component it mounts. It may also afford protection from shock or vibration. It may be either nonthermally conductive which protects the component from temperature changes in the next higher assembly or it may be thermally conductive which permits heat generated in the component to be drained out to a heat sink. For items whose function is electrical insulation only, see INSULATOR, (as modified). Excludes HOLDER, (as modified); RETAINER, (as modified), and SPACER, PLATE.
Part Alternates: MP220501DAP, MP-22-050-1DAP, A10091DAP, B4013195, S3006D, SMA7313326, SMA731332-6, SMB653121, L200018295, 530706-001, 102370-003, 105148, 10514-8, 11176133, 640047P1, 7109171002, 7109171-002, 7717203, 7717-203, 7717203DAP, 7717-203-DAP, 9044044, 904404-4, 9354211, 935421-1, 9520801, 952080-1, 99984303001, 9998-4303-001, 10091, 10091A, 10091DAP, 10139416, 10222669-1, 11176133-1, 12310302, 2504629091, 2504629-091, 34503473, 3450347-3, 4036005001, 403-6005-001, 4147962, 414796-2, 5999-00-925-6521, 00-925-6521, 5999009256521, 111761331, 009256521, 102370003, 102226691, 530706001
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 JAN 1966 | 00-925-6521 | 61934 ( MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT ) |
Drawings & Photos | NSN 5999-00-925-6521
Demand History | NSN 5999-00-925-6521
Cross Reference | NSN 5999-00-925-6521
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10091 | 07047 | ROSS MILTON CO THE |
| 10091A | 07047 | ROSS MILTON CO THE |
| 10091DAP | 07047 | ROSS MILTON CO THE |
| 10222669-1 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 102370-003 | 91417 | HARRIS CORPORATION DBA GOVERNMENT COMMUNICATIONS |
| 10514-8 | 47496 | THE DEWEY ELECTRONICS CORPORATION DIV PITOMETER LOG DIVISION |
| 11176133 | 17773 | BALLISTIC MISSILE DEFENSE SYSTEMS COMMAND |
| 11176133-1 | 17773 | BALLISTIC MISSILE DEFENSE SYSTEMS COMMAND |
| 12310302 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 2504629-091 | 07187 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 3450347-3 | 93346 | SENSOR AND ANTENNA SYSTEMS, LANSDALE, INC. |
| 403-6005-001 | 97896 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 414796-2 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 530706-001 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 530706-001 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 640047P1 | 94117 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 7109171-002 | 93322 | GE AVIATION SYSTEMS LLC DBA GE AVIATION |
| 7717-203 | 13103 | THERMALLOY CO INC |
| 7717-203 | C7407 | IV-ELECTRONIC KLAUS VESPERMANN KG |
| 7717-203-DAP | 13103 | THERMALLOY CO INC |
| 7717-203-DAP | C7407 | IV-ELECTRONIC KLAUS VESPERMANN KG |
| 904404-4 | 05257 | GENERAL DYNAMICS CANADA LTD |
| 935421-1 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| 952080-1 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 9998-4303-001 | 93346 | SENSOR AND ANTENNA SYSTEMS, LANSDALE, INC. |
| A10091DAP | 07047 | ROSS MILTON CO THE |
| B4013195 | 36090 | LOCKHEED MARTIN LIBRASCOPE CORP |
| B4013195 | 56996 | DEPARTMENT OF THE ARMY HQ UNITED STATES ARMY COMMUNICATIONS |
| L200018295 | 36090 | LOCKHEED MARTIN LIBRASCOPE CORP |
| MP-22-050-1DAP | 31223 | MICRO PLASTICS INC. |
| S3006D | 31221 | SPEC PLASTICS INC |
| SMA731332-6 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| SMB653121 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5999-00-925-6521
5999-00-925-7758, 5999-00-925-8009, 5999-00-925-8020, 5999-00-925-8052, 5999-00-925-8548
Technical Data | NSN 5999-00-925-6521
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 20B DISK |
| OVERALL HEIGHT | 0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.220 INCHES MINIMUM AND 0.230 INCHES MAXIMUM |
| COLOR | BLACK |
| MATERIAL | PLASTIC DIALLYL PHTHALATE |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TYPE SDG MIL SPEC SINGLE MATERIAL RESPONSE |

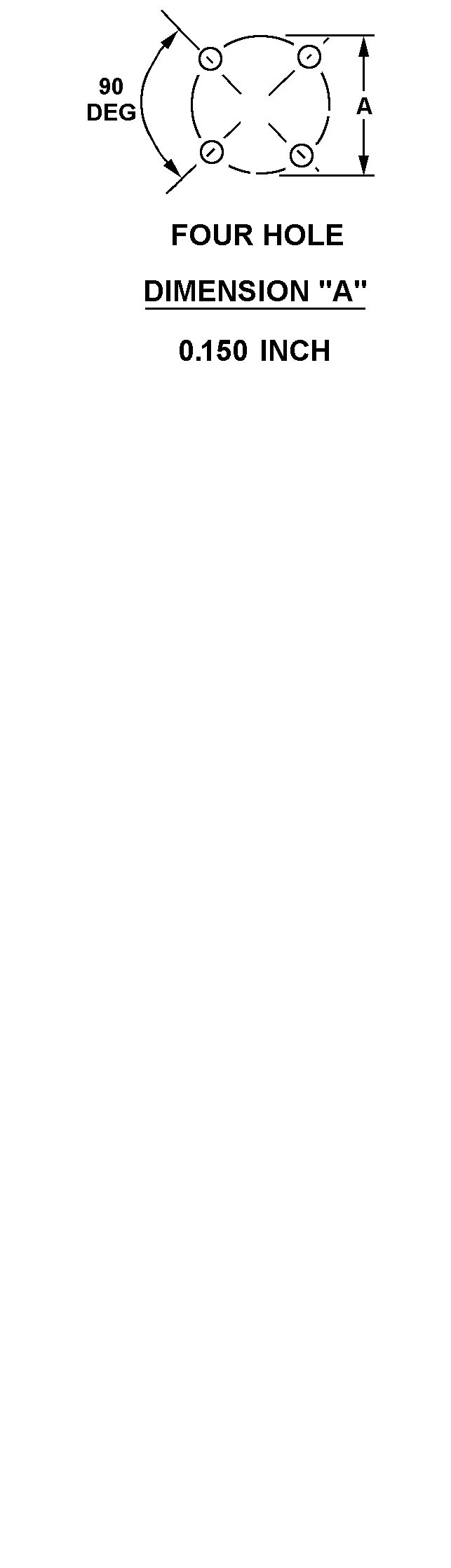

| ACCOMMODATED DEVICE MOUNTING HOLE PATTERN STYLE | 417B FOUR HOLE - 0.150 INCH |
