NSN 5999-01-095-1141 11663091-1, 771719, 7717-19
Product Details | ELECTRICAL-ELECTRONIC COMPONENT MOUNTING PAD
5999-01-095-1141 An item fabricated from electrically nonconductive material specifically designed to provide a support for mounting an electrical and/or an electronic component such as a semiconductor device, relay, or resistor into the next higher assembly. It isolates the component from the mounting surface of the next higher assembly, it may act as a strain relief to avoid damage to the component seal, and it may permit soldering of the component to the next higher assembly without damage. It includes holes, notches, or other provisions for physical alignment and spacing of electrical leads and/or other mounting facilities projecting from the component it mounts. It may also afford protection from shock or vibration. It may be either nonthermally conductive which protects the component from temperature changes in the next higher assembly or it may be thermally conductive which permits heat generated in the component to be drained out to a heat sink. For items whose function is electrical insulation only, see INSULATOR, (as modified). Excludes HOLDER, (as modified); RETAINER, (as modified), and SPACER, PLATE.
Part Alternates: 11663091-1, 771719, 7717-19, 5999-01-095-1141, 01-095-1141, 5999010951141, 116630911, 010951141
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 MAY 1980 | 01-095-1141 | 61934 ( MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT ) |

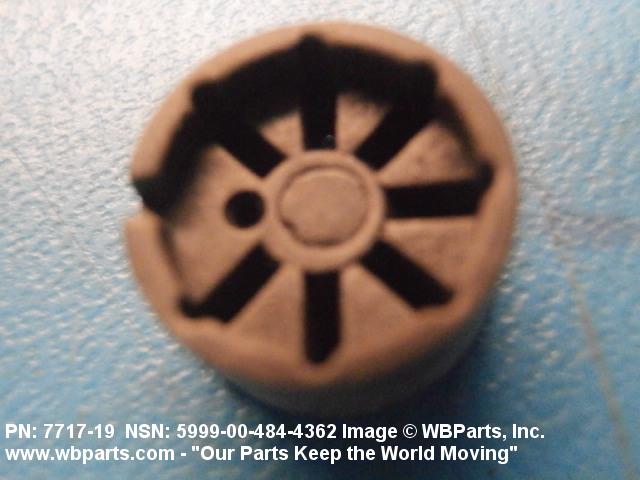

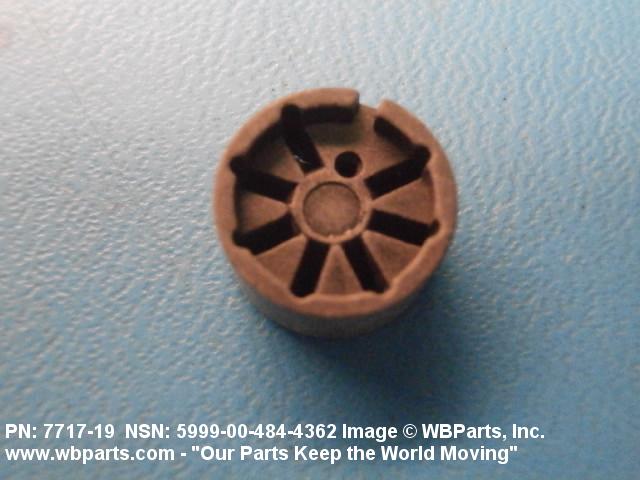

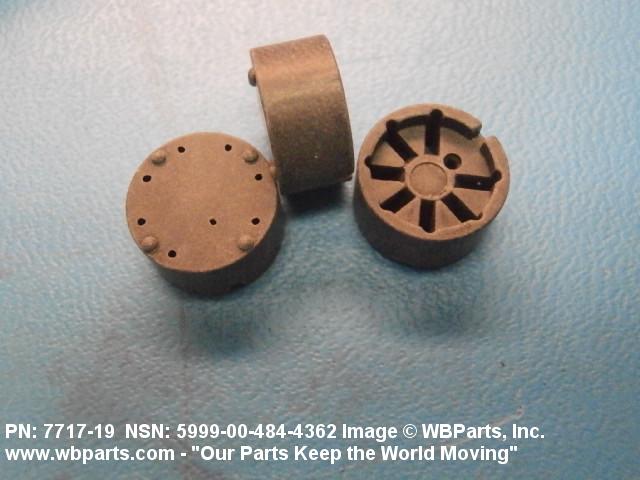

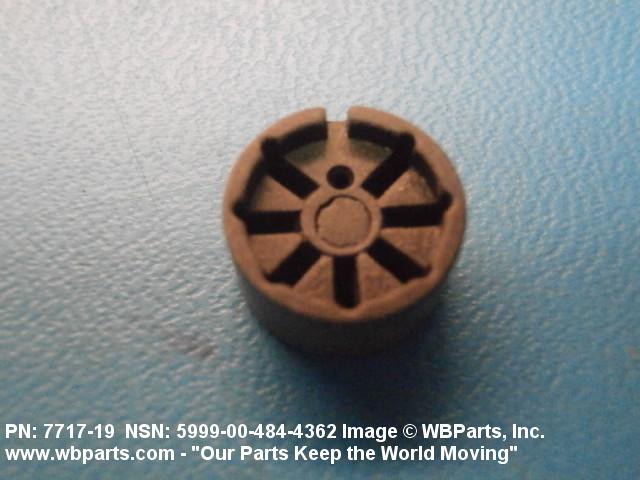

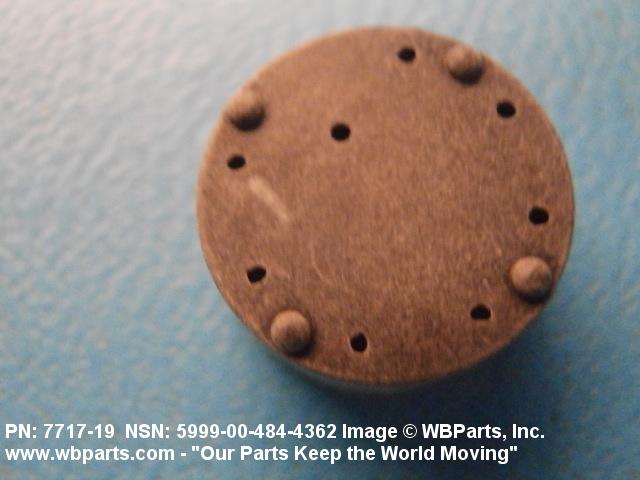

Drawings & Photos | NSN 5999-01-095-1141
Demand History | NSN 5999-01-095-1141
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5999-01-095-1141 | 2024-07-192 | 370 | US |
| 771719 | 2015-03-75 | 100 | United States |
| 771719 | 2015-03-72 | 100 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-01-095-1141
Technical Data | NSN 5999-01-095-1141
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 22B DISK |

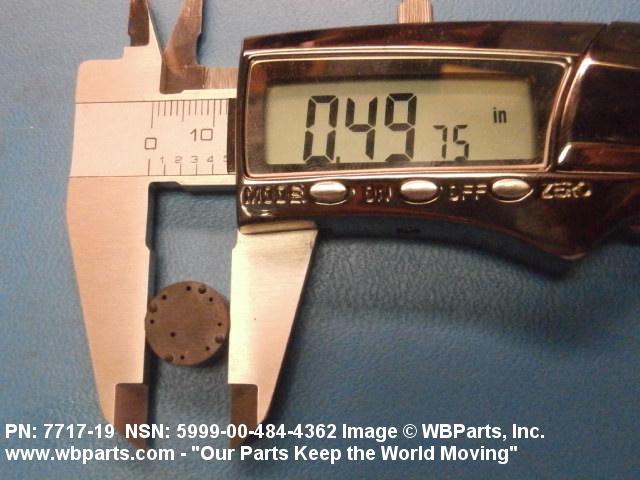

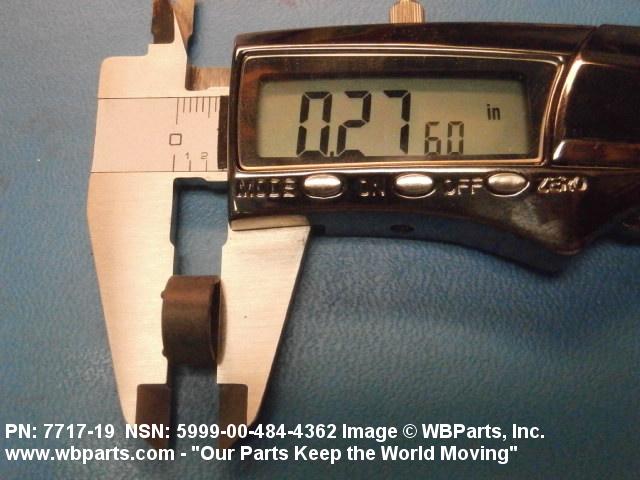

| OVERALL HEIGHT | 0.275 INCHES NOMINAL |
| OVERALL DIAMETER | 0.500 INCHES NOMINAL |
| COLOR | NATURAL |
| MATERIAL | PLASTIC POLYAMIDE |

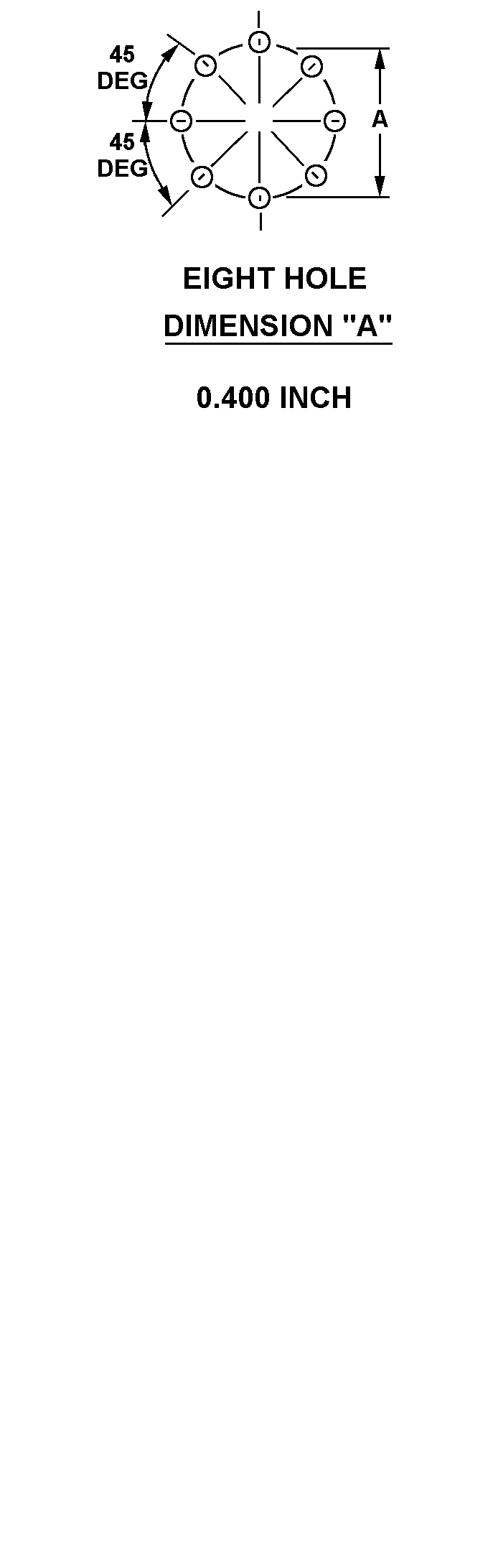

| ACCOMMODATED DEVICE MOUNTING HOLE PATTERN STYLE | 829B EIGHT HOLE - 0.400 INCH |
| ACCOMMODATED DEVICE MOUNTING HOLE QUANTITY | 8 |
| MOUNTING FACILITY TYPE AND QUANTITY | 8 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.022 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| SPECIFICATION/STANDARD DATA | 19207-11663091 MANUFACTURERS SPECIFICATION CONTROL |
| MANUFACTURERS CODE | 19207 |
| MFR SOURCE CONTROLLING REFERENCE | 11663091-1 |
Restrictions/Controls & Freight Information | NSN 5999-01-095-1141
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 1 | Analog CPUs, ADP Central Processing Units for Computers Analog. Represents only CPUs that accept as input the electrical equivalent of physical conditions such as flow, temperature, pressure, angular position, or voltage and perform computations by manipulating these electrical equivalents to produce results for further use. NOTE: An analog is a representation of one form of a physical condition existing in another form (e.g., the level of mercury in a tube represents temperature in a thermometer; the angular position of a needle represents speed on a speedometer). Excludes CPUs that have both analog and digital capability. (See code 3) |
