NSN 3020-00-738-2700 7382700, 00-738-2700, 007382700
Product Details | BEVEL GEAR
3020-00-738-2700 A gear in the form of a frustum of a cone, with straight, skewed, or curved teeth, cut on the external face. See also GEAR, ANTIBACKLASH, BEVEL.
Part Alternates: 7382700, 3020-00-738-2700, 00-738-2700, 3020007382700, 007382700
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-738-2700 | 05463 ( GEAR, BEVEL ) |
Drawings & Photos | NSN 3020-00-738-2700
Cross Reference | NSN 3020-00-738-2700
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7382700 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-738-2700
Technical Data | NSN 3020-00-738-2700
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-13048,COMP C1040 THRU C1050 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 34.0 ROCKWELL C MINIMUM AND 38.0 ROCKWELL C MAXIMUM TEETH |
| TEETH QUANTITY | 30 |
| TEETH TYPE | HYPOID |
| PRESSURE ANGLE | 65.0000 DEGREES |

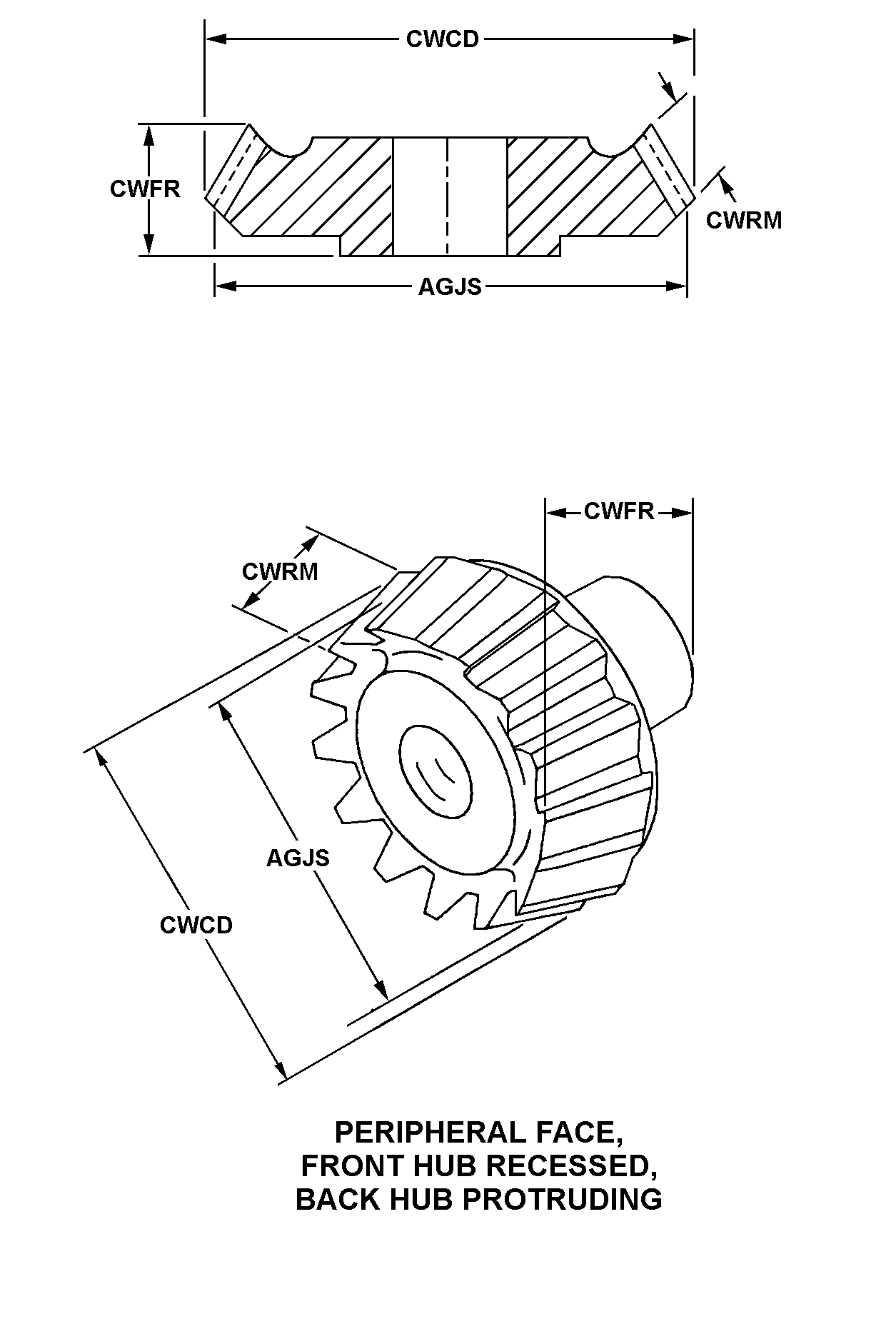

| STYLE DESIGNATOR | 42 PERIPHERAL FACE, FRONT HUB RECESSED, BACK HUB PROTRUDING |
| PITCH DIAMETER | 2.5000 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 2.682 INCHES |
| FACE NOMINAL WIDTH | 0.375 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 2.238 INCHES SECOND END |
| BODY RECESS NOMINAL DEPTH | 0.0850 INCHES FIRST END |
| BORE NOMINAL DIAMETER | 0.258 INCHES BOTH ENDS |
| HUB STYLE DESIGNATOR | 1 PLAIN FIRST END 4A 1 STEP SECOND END |
| HUB NOMINAL DIAMETER | 0.438 INCHES FIRST END |
| END NOMINAL LENGTH | 1.536 INCHES SECOND END |
| END NOMINAL DIAMETER | 0.749 INCHES SECOND END |
| FIRST STEP NOMINAL LENGTH | 0.562 INCHES SECOND END |
| FIRST STEP NOMINAL DIAMETER | 0.788 INCHES SECOND END |
| SECOND STEP NOMINAL LENGTH | 0.141 INCHES SECOND END |
| SECOND STEP NOMINAL DIAMETER | 1.031 INCHES SECOND END |
| BODY STYLE | 1 PLAIN, SOLID |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 7382700 |
Restrictions/Controls & Freight Information | NSN 3020-00-738-2700
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197339 | WHEELS COG/GEAR/PINION I/S |
| Less than car load rating | S | 60 |
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
