Product Details | FLEXIBLE SHAFT ASSEMBLY

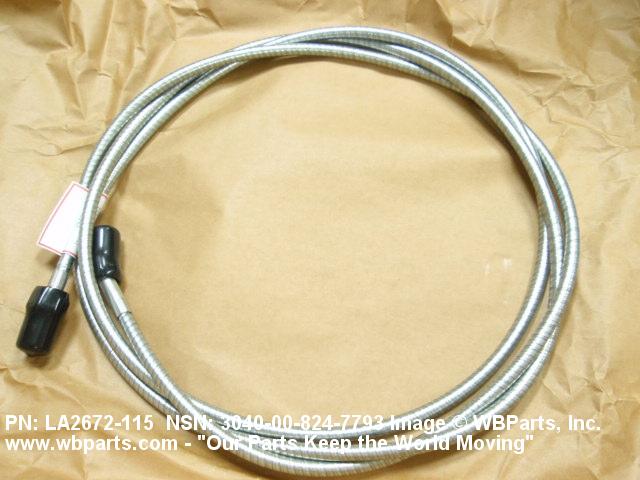

3040-00-824-7793 An item consisting of a casing with fittings and attachments on each end and a spirally wound wire core with formed end(s) and/or crimped on end fittings. It is designed to transmit rotary motion around bends from a motor or other power source to drive various types of equipment, such as tachometers, speedometers, remote controls, instruments, and the like, which are located at an angle and/or distance from the power source. See also CONTROL ASSEMBLY, PUSH-PULL.20316800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment66800078Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
Part Alternates: LA2672115, LA2672-115, 031213468Y000, 0312-13468Y00-0, 13468Y, 3040-00-824-7793, 00-824-7793, 3040008247793, 008247793
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-824-7793 | 20315 ( SHAFT ASSEMBLY, FLEXIBLE ) |

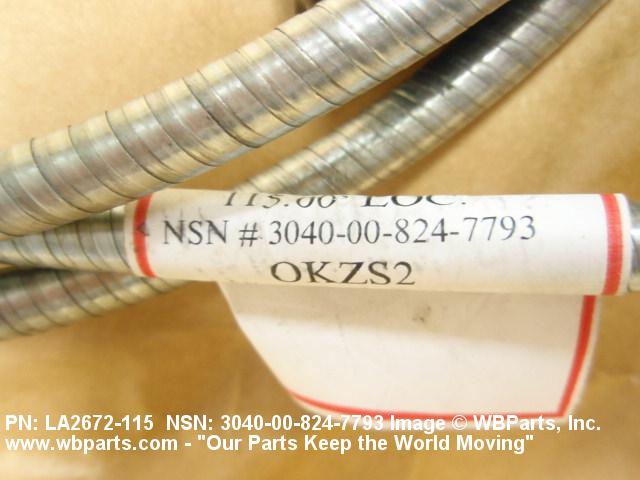

Drawings & Photos | NSN 3040-00-824-7793
Demand History | NSN 3040-00-824-7793
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-00-824-7793 | 2009-11-314 | 1 | United States |
| 3040-00-824-7793 | 2009-11-314 | 1 | United States |
Cross Reference | NSN 3040-00-824-7793
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0312-13468Y00-0 | 0KZS2 | S.S. WHITE TECHNOLOGIES INC. |
| 0312-13468Y00-0 | 97945 | PENNWALT CORP S S WHITE INDUSTRIAL PRODUCTS DIV |
| 13468Y | 97945 | PENNWALT CORP S S WHITE INDUSTRIAL PRODUCTS DIV |
| LA2672-115 | 0KZS2 | S.S. WHITE TECHNOLOGIES INC. |
| LA2672-115 | 97945 | PENNWALT CORP S S WHITE INDUSTRIAL PRODUCTS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-824-7793
Technical Data | NSN 3040-00-824-7793
| Characteristic | Specifications |
|---|---|
| CASING MATERIAL | STEEL |
| CASING SURFACE TREATMENT | ZINC COATED |
| CASING LENGTH BETWEEN FERRULES | 109.000 INCHES NOMINAL |
| CASING OUTSIDE DIAMETER | 0.360 INCHES NOMINAL |
| END CONNECTION TYPE | SHOULDERED FERRULE BOTH ENDS |
| END OVERALL DIAMETER | 0.593 INCHES NOMINAL BOTH ENDS |
| SHANK OUTSIDE DIAMETER | 0.500 INCHES NOMINAL BOTH ENDS |
| SHOULDER OUTSIDE DIAMETER | 0.593 INCHES NOMINAL BOTH ENDS |
| SWIVEL END | NOT PROVIDED BOTH ENDS |
| WRENCHING FACILITY TYPE | HEXAGON BOTH ENDS |
| WIDTH ACROSS FLATS | 0.438 INCHES NOMINAL BOTH ENDS |
| LUBRICATION FITTING | NOT PROVIDED BOTH ENDS |
| CORE MATERIAL | STEEL |
| CORE SURFACE TREATMENT | ZINC COATED |
| CORE OVERALL LENGTH | 115.000 INCHES NOMINAL |
| CORE DIAMETER | 0.187 INCHES NOMINAL |
| CORE ROTATION DIRECTION | CLOCKWISE |
| END TYPE | ROUND, INTERNAL SPLINED BOTH ENDS |
| TIP LENGTH | 0.437 INCHES NOMINAL BOTH ENDS |
| CROSS SECTION SIZE AND LOCATION | 0.406 INCHES NOMINAL DIAMETER BOTH ENDS |
| SETSCREW | NOT INCLUDED BOTH ENDS |
| SPLINE TYPE | INVOLUTE BOTH ENDS |
| SPLINE QUANTITY | 12 BOTH ENDS |
| SPLINE MAJOR DIAMETER | 0.292 INCHES NOMINAL BOTH ENDS |
| SPLINE MINOR DIAMETER | 0.203 INCHES NOMINAL BOTH ENDS |
| SPLINE LENGTH | 0.250 INCHES NOMINAL BOTH ENDS |
| PITCH DIAMETER | 0.250 INCHES NOMINAL BOTH ENDS |
| SPLINE PRESSURE ANGLE IN DEG | 14.5 BOTH ENDS |
| CORE REMOVABILITY | NONREMOVABLE |
| OVERALL LENGTH | 115.870 INCHES NOMINAL |
| TORSIONAL DEFLECTION RATING | 2 DEG FT-LB WINDING AND 4 DEG FT-LB UNWINDING TORSIONAL DEFLECTION |
| MINIMUM OPERATING RADIUS | 3.500 INCHES |
| III FSC APPLICATION DATA | CONTROL INSTL,PRIMARY FLIGHT,WING,AIRFRAME |
| MANUFACTURERS CODE | 0KZS2 |
| DESIGN CONTROL REFERENCE | LA2672-115 |
