NSN 3110-01-171-9436 DFSS22, DFSS-22, DFSS22XX
Product Details | ANNULAR BALL BEARING
3110-01-171-9436 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: DFSS22, DFSS-22, DFSS22XX, DFSS-22XX, DFSS2XX, DFSS-2XX, 3153601-20, 3110-01-171-9436, 01-171-9436, 3110011719436, 315360120, 011719436
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 15 FEB 1984 | 01-171-9436 | 00014 ( BEARING, BALL, ANNULAR ) |

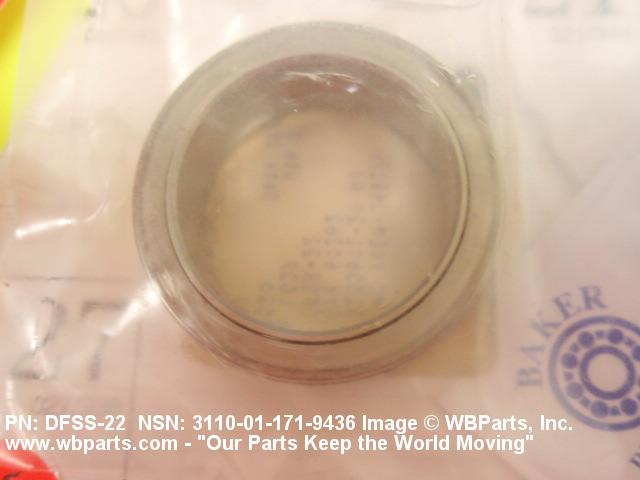

Drawings & Photos | NSN 3110-01-171-9436
Demand History | NSN 3110-01-171-9436
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-171-9436 | 2012-01-18 | 10 | Germany |
| 3110-01-171-9436 | 2009-11-329 | 25 | Germany |
Cross Reference | NSN 3110-01-171-9436
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3153601-20 | 60225 | L-3 COMMUNICATIONS CORPORATION DBA L3 OCEAN SYSTEMS |
| 3153601-20 | 77068 | ALLIED-SIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO |
| DFSS-22 | 40920 | MPB CORPORATION DBA TIMKEN SUPER PRECISION |
| DFSS-22 | 78118 | MPB CORPORATION DBA TIMKEN AEROSPACE |
| DFSS-22XX | 40920 | MPB CORPORATION DBA TIMKEN SUPER PRECISION |
| DFSS-2XX | 78118 | MPB CORPORATION DBA TIMKEN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-01-171-9436
Technical Data | NSN 3110-01-171-9436
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL COMP 430 RETAINER STEEL COMP 1330 SHIELD |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE J404 ASSN STD ALL MATERIAL RESPONSES OVERALL |
| STYLE DESIGNATOR | 30A NON-LOADING GROOVE, NON-SEPARABLE |
| BORE DIAMETER | 1.3745 INCHES MINIMUM AND 1.3750 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 1.8750 INCHES MINIMUM AND 1.8755 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.5550 INCHES MINIMUM AND 0.5650 INCHES MAXIMUM |
| INNER RING WIDTH | 0.6200 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM |
| INTERNAL FIT-UP CONTACT ANGULAR DIRECTION | PRIMARILY RADIAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | STAMPED |
| SHIELD QUANTITY | 2 |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| BEARING PRELOAD RATING | 1800.0 POUNDS NOMINAL |
| SPECIFICATION/STANDARD DATA | 77068-3153601 MANUFACTURERS SPECIFICATION CONTROL |
| III END ITEM IDENTIFICATION | BENDIX DETECTING-RANGING SET,SONAR,MODEL AN/AQS-13 |
| III FUNCTIONAL DESCRIPTION | PRELOADED PAIR FACE TO FACE |
| III TYPE/MODEL DESIGNATION | DFSS |
| III REFERENCE DATA AND LITERATURE | MFR GEN ENG CAT 3-350-81 |
Restrictions/Controls & Freight Information | NSN 3110-01-171-9436
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
