NSN 3120-00-058-1469 AR4E1002, AR4E-1002, BRE4458

Product Details | ROD END PLAIN BEARING

3120-00-058-1469 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.

Part Alternates: AR4E1002, AR4E-1002, BRE4458, KBE449CR, KBE4-49CR, 1372229002, 137-222-9002, 3120-00-058-1469, 00-058-1469, 3120000581469, 000581469

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	13 JUN 1967	00-058-1469	13209 ( BEARING, PLAIN, ROD END )

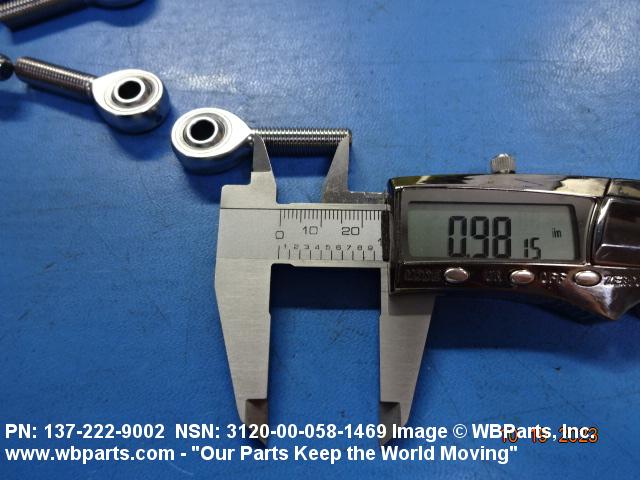

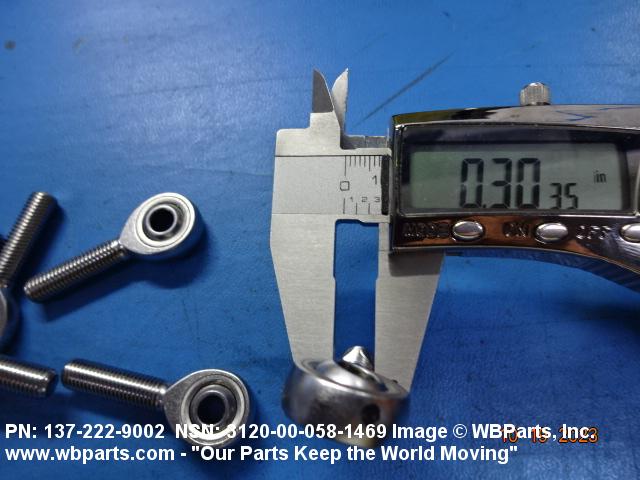

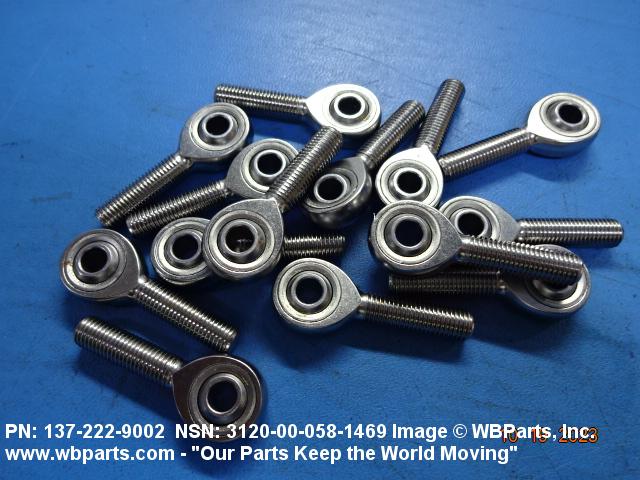

Drawings & Photos | NSN 3120-00-058-1469

Part Number	Request Date	QTY	Origin
137-222-9002	2024-06-177	16	DIBBS
3120-00-058-1469	2024-06-165	1	Saudi Arabia
3120-00-058-1469	2024-03-87	1	United States
3120-00-058-1469	2024-03-85	1	Saudi Arabia
137-222-9002	2023-09-269	14	DIBBS
137-222-9002	2023-09-261	14	DIBBS
3120-00-058-1469	2023-07-206	14	United States
3120-00-058-1469	2023-05-122	20	United States
3120-00-058-1469	2023-04-111	20	United States
1372229002	2022-04-115	20	United States
3120-00-058-1469	2009-07-208	97	DIBBS

Cross Reference | NSN 3120-00-058-1469

Part Number	Cage Code	Manufacturer
137-222-9002	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION
137-222-9002	50830	CABCO INDUSTRIES INC.
137-222-9002	70210	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
137-222-9002	81376	RBC SOUTHWEST PRODUCTS, INC.
137-222-9002	97613	DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING
AR4E-1002	50294	NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB
BRE4458	81376	RBC SOUTHWEST PRODUCTS, INC.
KBE4-49CR	97613	DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-00-058-1469

Compare

Related Products | NSN 3120-00-058-1469

3120-00-058-1475, 3120-00-058-1740, 3120-00-058-1820, 3120-00-058-1821, 3120-00-058-2031

Technical Data | NSN 3120-00-058-1469

Characteristic	Specifications
MATERIAL	STEEL COMP 440C INNER MEMBER STEEL CORROSION RESISTING RACE INSERT STEEL CORROSION RESISTING ROD END BODY
SURFACE TREATMENT	CHROMIUM INNER MEMBER
STYLE DESIGNATOR	6 BALL TYPE

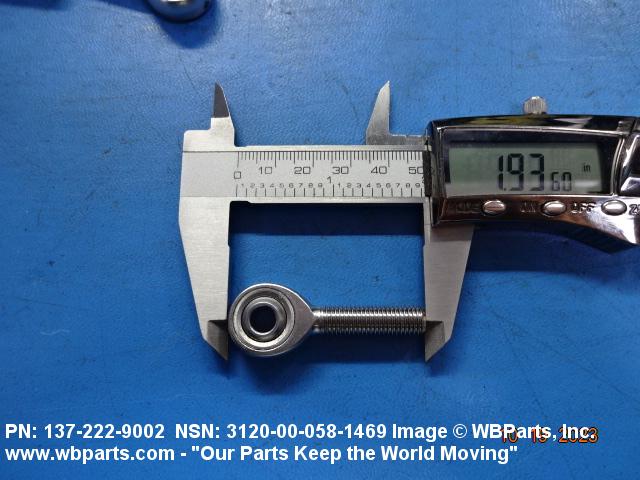

OVERALL LENGTH	1.9370 INCHES NOMINAL

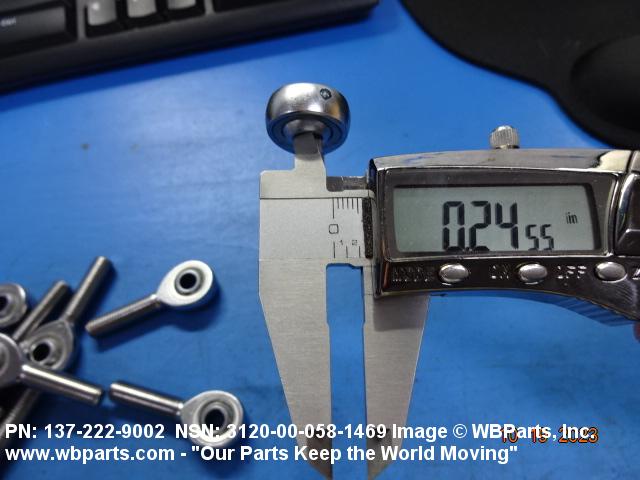

BORE DIAMETER	0.2495 INCHES MINIMUM AND 0.2515 INCHES MAXIMUM

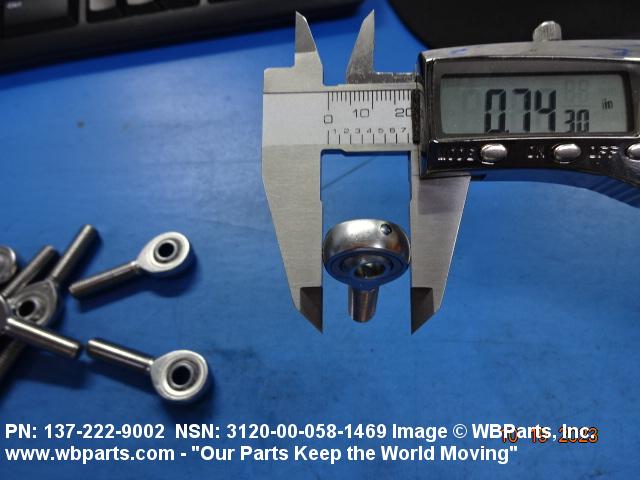

OUTER MEMBER OUTSIDE DIAMETER	0.7400 INCHES MINIMUM AND 0.7600 INCHES MAXIMUM
BORE CENTER TO SHANK END DISTANCE	1.5520 INCHES MINIMUM AND 1.5720 INCHES MAXIMUM
OUTER MEMBER WIDTH	0.2760 INCHES MINIMUM AND 0.2860 INCHES MAXIMUM
INNER MEMBER WIDTH	0.3700 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM
STATIC RADIAL LOAD RATING	4100 POUNDS
SHANK STYLE	1 EXTERNALLY THREADED
SHANK THREAD LENGTH	1.0620 INCHES NOMINAL
THREAD SERIES DESIGNATOR	UNF
THREAD DIAMETER	0.312 INCHES NOMINAL
THREAD QUANTITY PER INCH	24
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
