NSN 3120-00-385-6619 ARH8ECRFW, ARH8EFCRW, 00-385-6619

Product Details | ROD END PLAIN BEARING

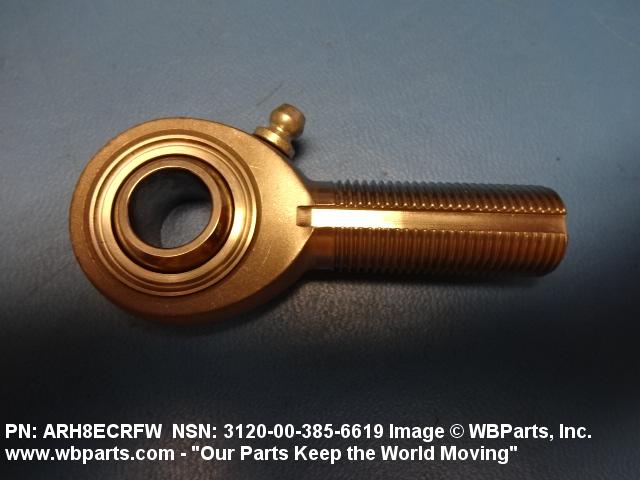

3120-00-385-6619 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.

Part Alternates: ARH8ECRFW, ARH8EFCRW, 3120-00-385-6619, 00-385-6619, 3120003856619, 003856619

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	25 MAR 1974	00-385-6619	13209 ( BEARING, PLAIN, ROD END )

Drawings & Photos | NSN 3120-00-385-6619

Part Number	Request Date	QTY	Origin
3120-00-385-6619	2024-12-351	1	United States
3120-00-385-6619	2024-12-351	1	United States
3120-00-385-6619	2017-12-345	23	DIBBS
3120-00-385-6619	2017-01-26	8	United States
3120-00-385-6619	2016-09-259	8	DIBBS
3120-00-385-6619	2016-09-251	8	DIBBS
3120-00-385-6619	2015-09-252	28	DIBBS
3120-00-385-6619	2014-03-80	15	DIBBS
3120-00-385-6619	2014-03-72	15	DIBBS
3120-00-385-6619	2013-12-352	6	DIBBS
3120-00-385-6619	2013-12-344	6	DIBBS
3120-00-385-6619	2013-06-171	6	DIBBS
3120-00-385-6619	2010-09-272	27	DIBBS
3120-00-385-6619	2009-12-337	12	DIBBS
3120-00-385-6619	2009-02-36	4	PT

Cross Reference | NSN 3120-00-385-6619

Part Number	Cage Code	Manufacturer
ARH8ECRFW	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION
ARH8EFCRW	50294	NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-00-385-6619

Compare

Related Products | NSN 3120-00-385-6619

3120-00-385-6621, 3120-00-385-6669, 3120-00-385-7476, 3120-00-385-7478, 3120-00-385-7719

Technical Data | NSN 3120-00-385-6619

Characteristic	Specifications
MATERIAL	STEEL COMP 440C INNER MEMBER STEEL CORROSION RESISTING RACE INSERT STEEL CORROSION RESISTING ROD END BODY
STYLE DESIGNATOR	6 BALL TYPE

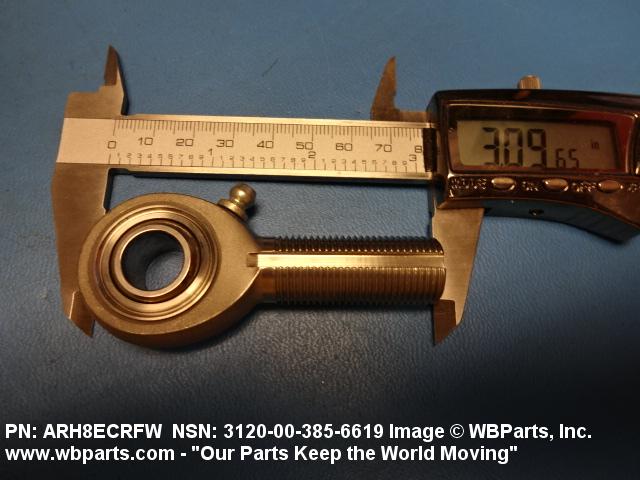

OVERALL LENGTH	3.0915 INCHES MINIMUM AND 3.1215 INCHES MAXIMUM

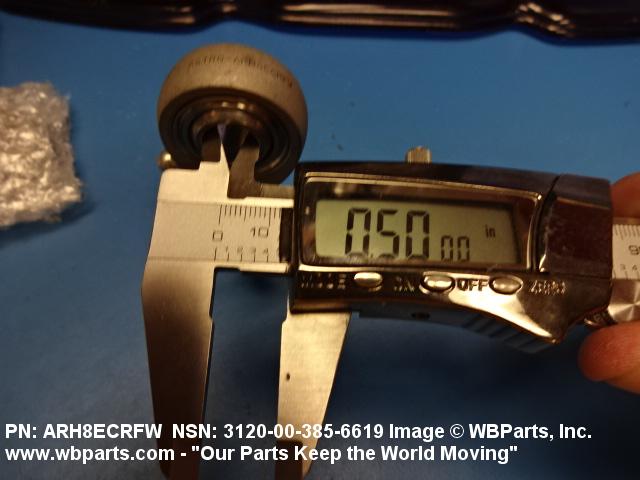

BORE DIAMETER	0.5000 INCHES MINIMUM AND 0.5015 INCHES MAXIMUM
OUTER MEMBER OUTSIDE DIAMETER	1.3270 INCHES MINIMUM AND 1.3470 INCHES MAXIMUM
BORE CENTER TO SHANK END DISTANCE	2.4280 INCHES MINIMUM AND 2.4480 INCHES MAXIMUM

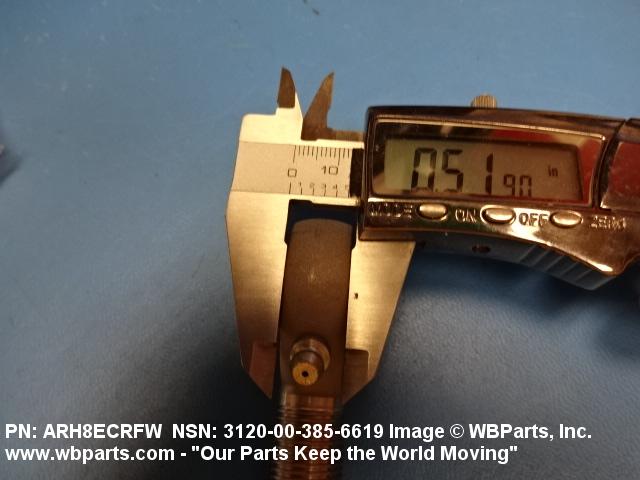

OUTER MEMBER WIDTH	0.5100 INCHES MINIMUM AND 0.5200 INCHES MAXIMUM

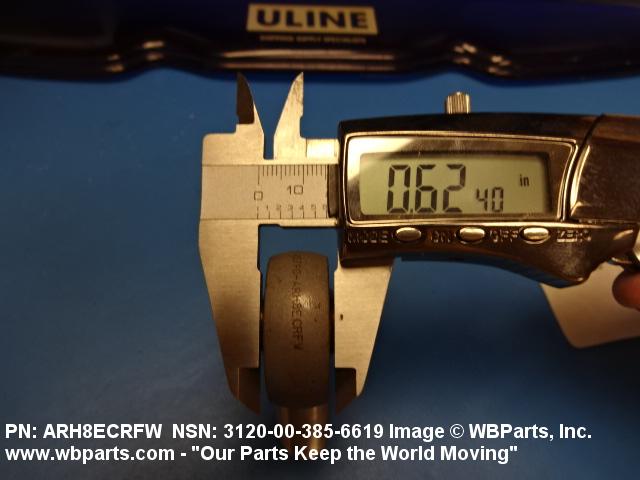

INNER MEMBER WIDTH	0.6200 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM
