Product Details | ROD END PLAIN BEARING

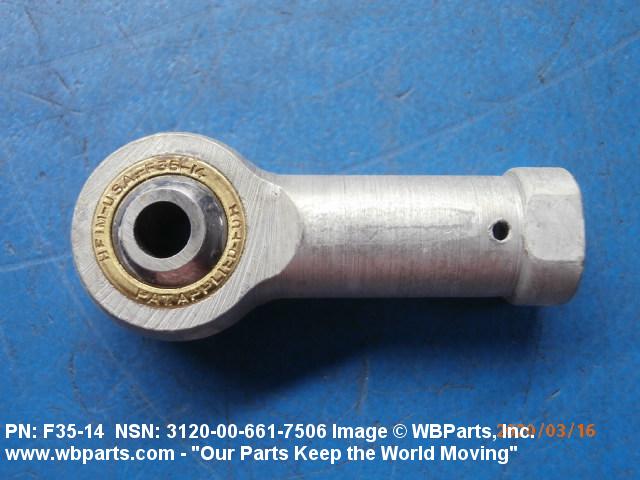

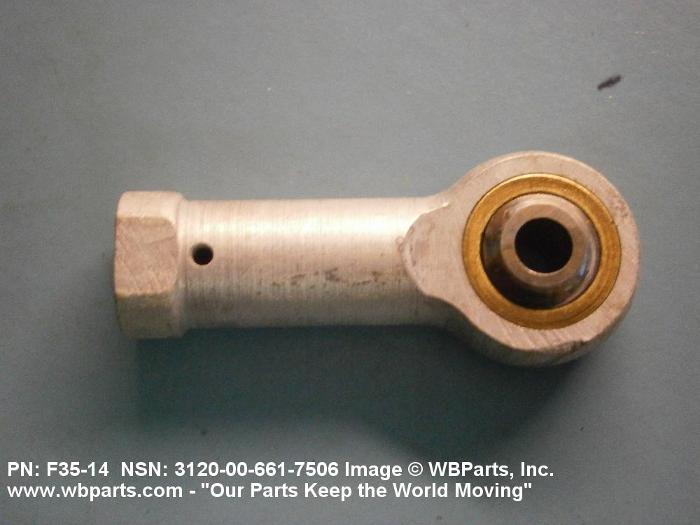

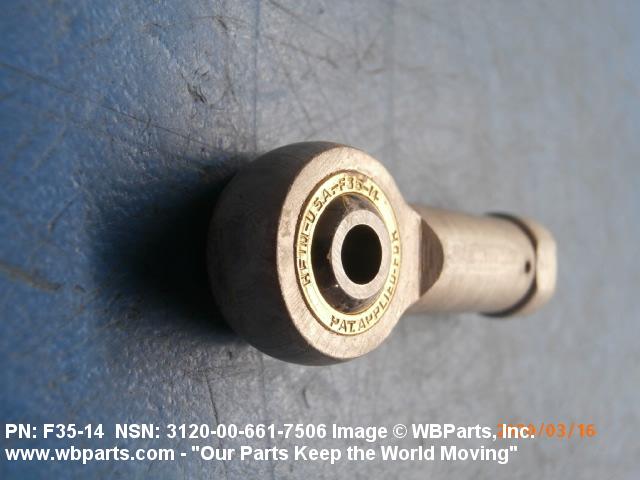

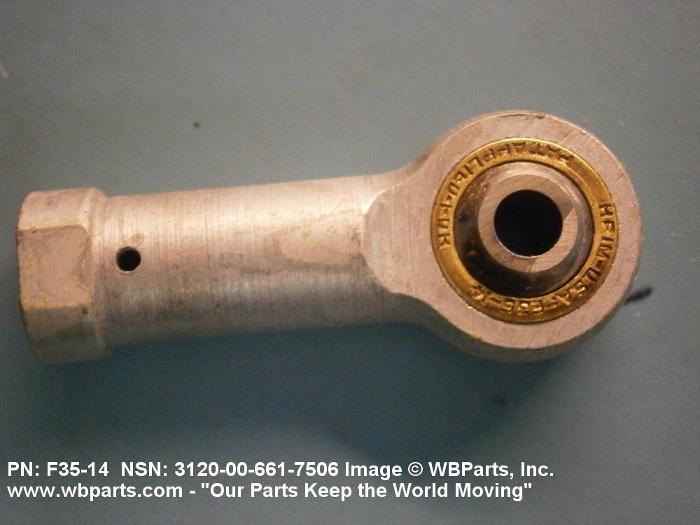

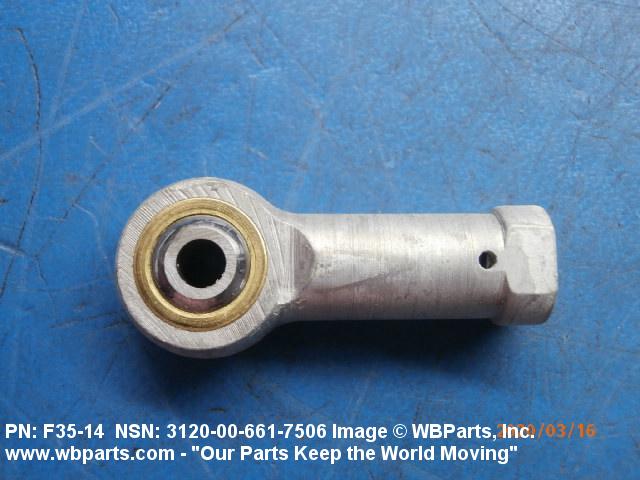

3120-00-661-7506 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.

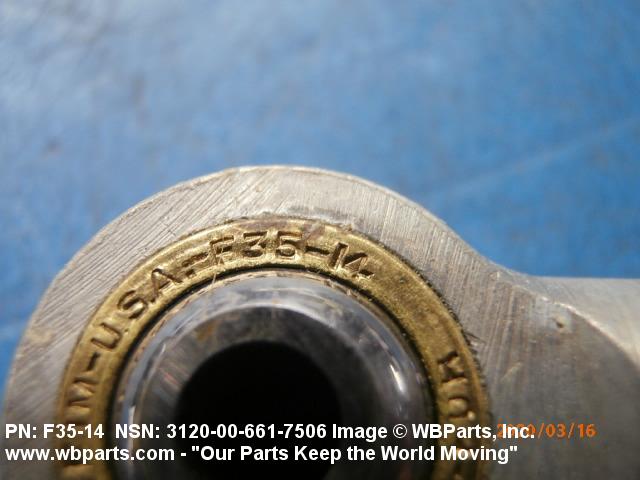

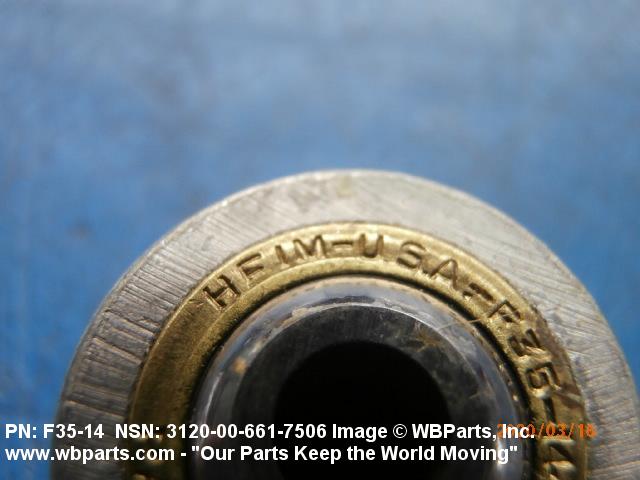

Part Alternates: NAS37, F3514, F35-14, F3514M, F35-14M, 3120-00-661-7506, 00-661-7506, 3120006617506, 006617506
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-661-7506 | 13209 ( BEARING, PLAIN, ROD END ) |
Drawings & Photos | NSN 3120-00-661-7506
Demand History | NSN 3120-00-661-7506
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-661-7506 | 2023-10-285 | 5 | Taiwan |
| F3514 | 2020-03-62 | 1 | Taiwan |
| F3514 | 2020-02-58 | 1 | Taiwan |
| F3514 | 2012-06-153 | 10 | Taiwan |
| F3514 | 2012-05-142 | 10 | us |
| 3120-00-661-7506 | 2009-01-08 | 26 | DIBBS |
| NAS37 | 2009-01-06 | 6 | US |
| NAS37 | 2009-01-05 | 6 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-661-7506
Related Products | NSN 3120-00-661-7506
Technical Data | NSN 3120-00-661-7506

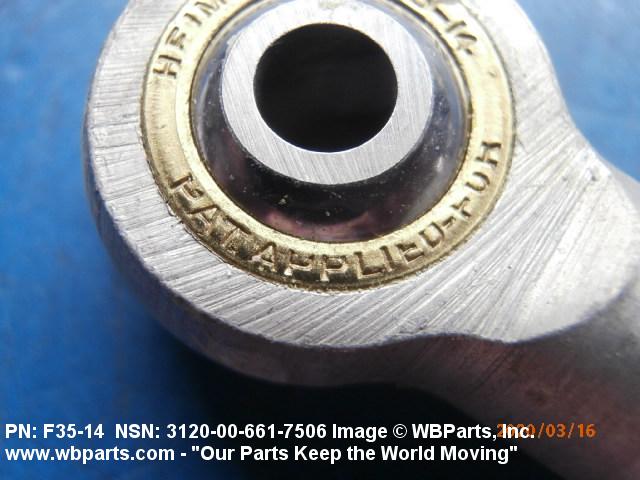

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 INNER MEMBER COPPER ALLOY RACE INSERT STEEL COMP 1018 ROD END BODY |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | 6 BALL TYPE |

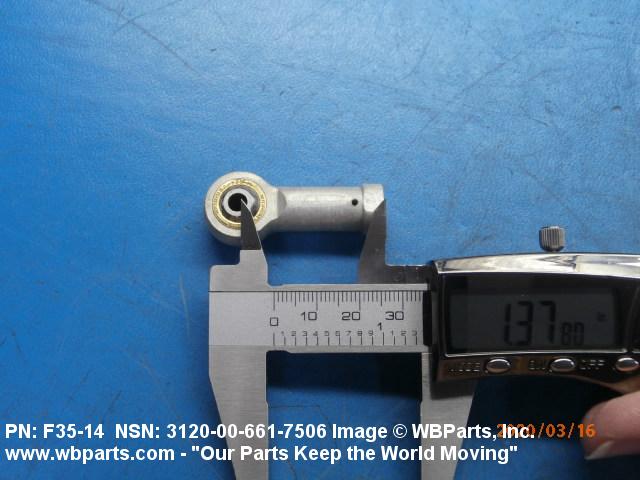

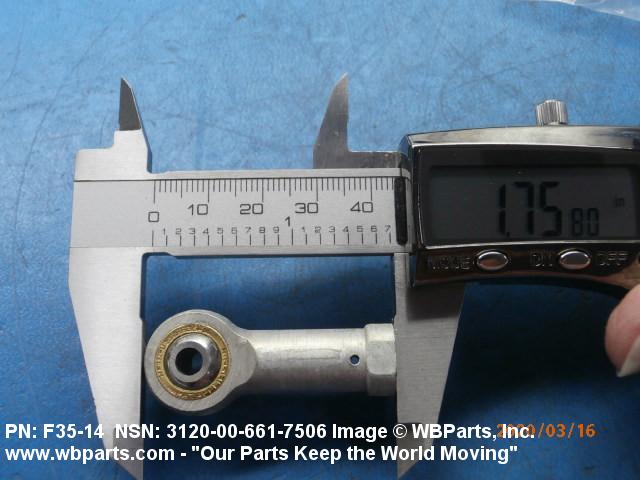

| OVERALL LENGTH | 1.7500 INCHES NOMINAL |

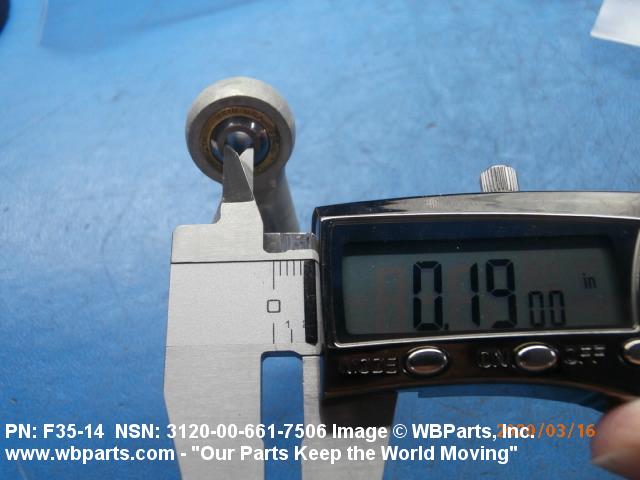

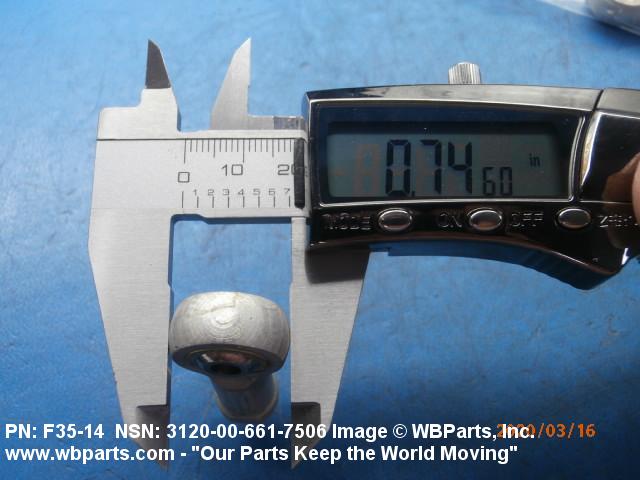

| BORE DIAMETER | 0.1895 INCHES MINIMUM AND 0.1915 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 0.7500 INCHES NOMINAL |
| BORE CENTER TO SHANK END DISTANCE | 1.3750 INCHES NOMINAL |

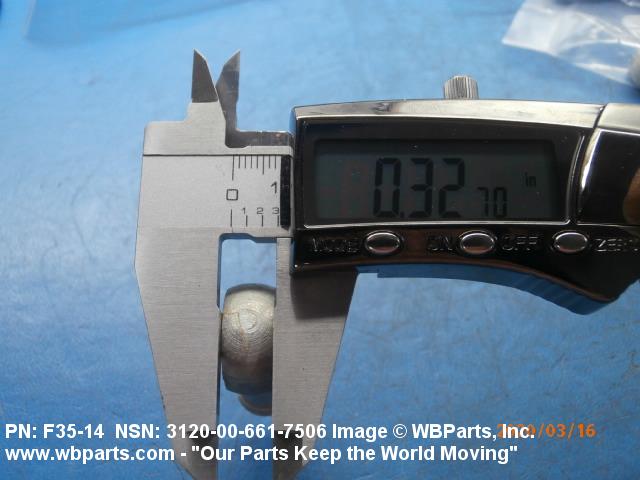

| OUTER MEMBER WIDTH | 0.3330 INCHES MAXIMUM |

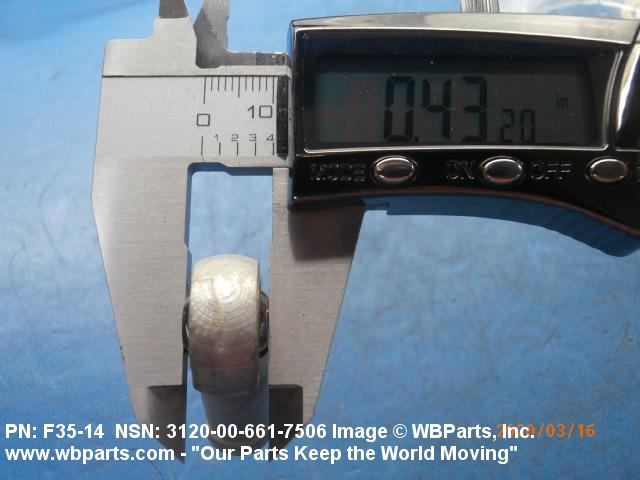

| INNER MEMBER WIDTH | 0.4320 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM |
| LUBRICATION FEATURE | GROOVE EXTERNAL INNER MEMBER |

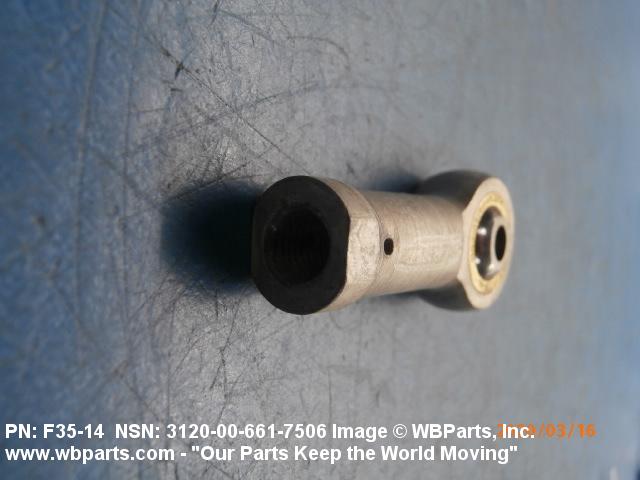

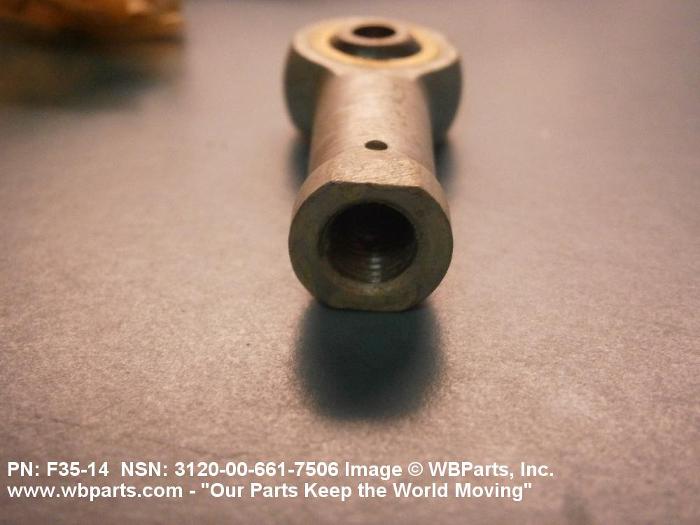

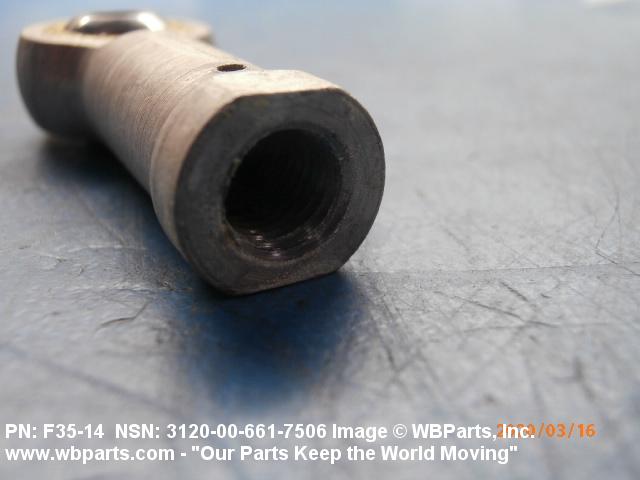

| SHANK STYLE | 5 INTERNALLY THREADED W/BEAD AND WRENCH FLATS AND INSPECTION HOLE |
