NSN 3120-00-662-6000 HMX4EFG, 046513532W, 04-651-353-2W
Product Details | ROD END PLAIN BEARING
3120-00-662-6000 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: HMX4EFG, 046513532W, 04-651-353-2W, 3120-00-662-6000, 00-662-6000, 3120006626000, 006626000
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1961 | 00-662-6000 | 13209 ( BEARING, PLAIN, ROD END ) |

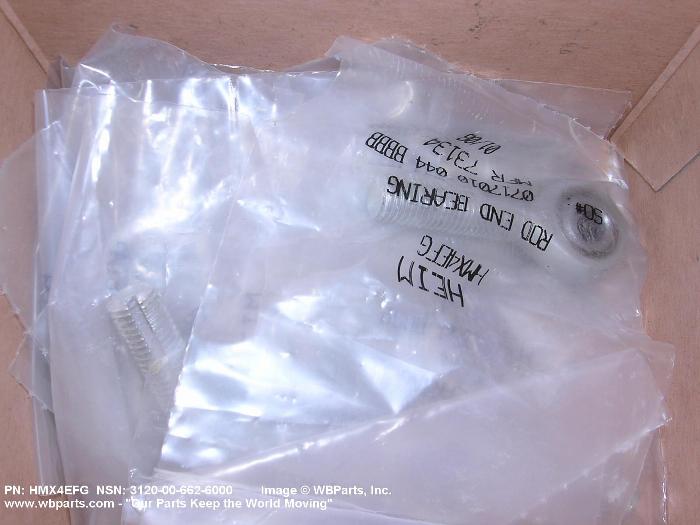

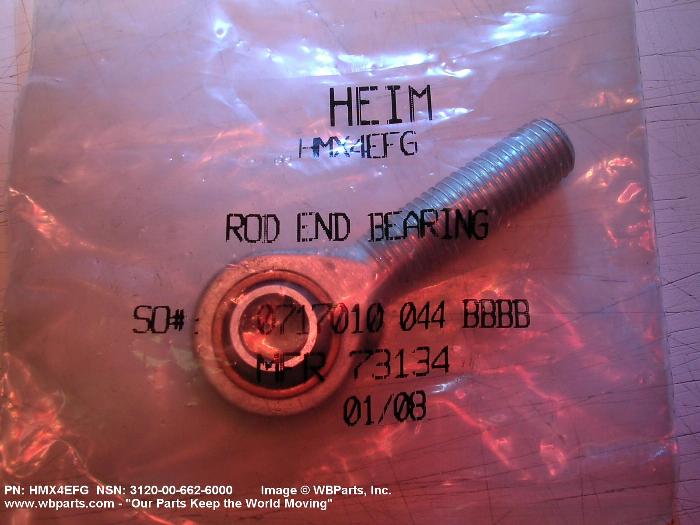

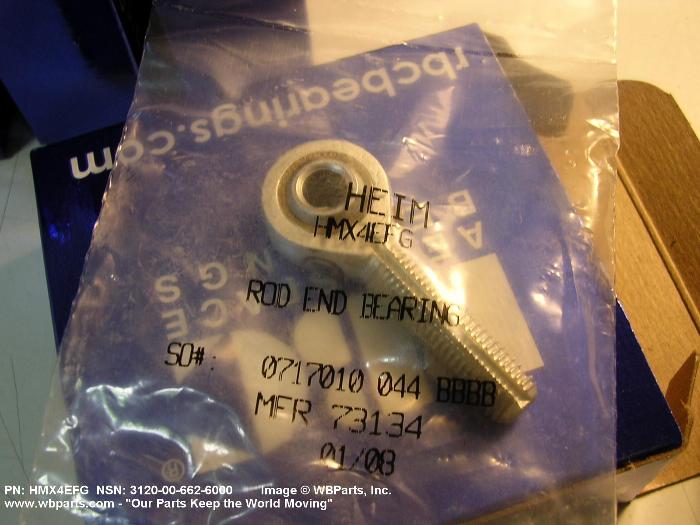

Drawings & Photos | NSN 3120-00-662-6000
Demand History | NSN 3120-00-662-6000
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-662-6000 | 2018-03-74 | 257 | DIBBS |
| 3120-00-662-6000 | 2018-03-66 | 257 | DIBBS |
| 3120-00-662-6000 | 2017-11-319 | 75 | DIBBS |
| 3120-00-662-6000 | 2017-11-311 | 75 | DIBBS |
| 3120-00-662-6000 | 2017-10-304 | 17 | DIBBS |
| 3120-00-662-6000 | 2017-10-296 | 17 | DIBBS |
| 3120-00-662-6000 | 2016-03-86 | 8 | PK |
| 3120-00-662-6000 | 2009-05-133 | 914 | DIBBS |
| 3120-00-662-6000 | 2009-04-105 | 875 | DIBBS |
| 3120-00-662-6000 | 2009-01-07 | 39 | DIBBS |
| 3120-00-662-6000 | 2008-11-324 | 250 | DIBBS |
| 3120-00-662-6000 | 2008-09-252 | 250 | DIBBS |
| 3120-00-662-6000 | 2008-07-206 | 306 | DIBBS |
| 3120-00-662-6000 | 2008-05-144 | 2 | DIBBS |
| 3120-00-662-6000 | 2008-04-112 | 270 | DIBBS |
| HMX4EFG | 2008-04-108 | 20 | United Kingdom |
| HMX4EFG | 2008-03-71 | 10 | United Kingdom |
| 3120-00-662-6000 | 2008-02-36 | 109 | DIBBS |
| HMX4EFG | 2007-12-341 | 10 | United Kingdom |
| 3120-00-662-6000 | 2007-11-333 | 75 | DIBBS |
| 3120-00-662-6000 | 2007-05-125 | 149 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-662-6000
Related Products | NSN 3120-00-662-6000
Technical Data | NSN 3120-00-662-6000
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL INNER MEMBER STEEL OUTER RACE MEMBER COPPER ALLOY 614 RACE INSERT |
| SURFACE TREATMENT | CHROMIUM INNER MEMBER CADMIUM OUTER RACE MEMBER |
| STYLE DESIGNATOR | 6 BALL TYPE |
| OVERALL LENGTH | 1.9370 INCHES NOMINAL |
| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2515 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 0.7500 INCHES NOMINAL |
| BORE CENTER TO SHANK END DISTANCE | 1.5620 INCHES NOMINAL |
| OUTER MEMBER WIDTH | 0.2810 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.3700 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM |
| LUBRICATION FEATURE | GROOVE EXTERNAL INNER MEMBER |
| STATIC RADIAL LOAD RATING | ANY ACCEPTABLE |
| SHANK STYLE | 1 EXTERNALLY THREADED |
| SHANK THREAD LENGTH | 1.0000 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| THREAD DIAMETER | 0.3125 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| FEATURES PROVIDED | FLUSH LUBRICATION FITTING |
| SPECIAL FEATURES | 0.0670 IN. WIDE KEYWAY SLOT IN SHANK |
Restrictions/Controls & Freight Information | NSN 3120-00-662-6000
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-662-6000
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
