NSN 3120-00-949-6293 REM10ATC10, REM10ATC10ZM, 00-949-6293
Product Details | ROD END PLAIN BEARING

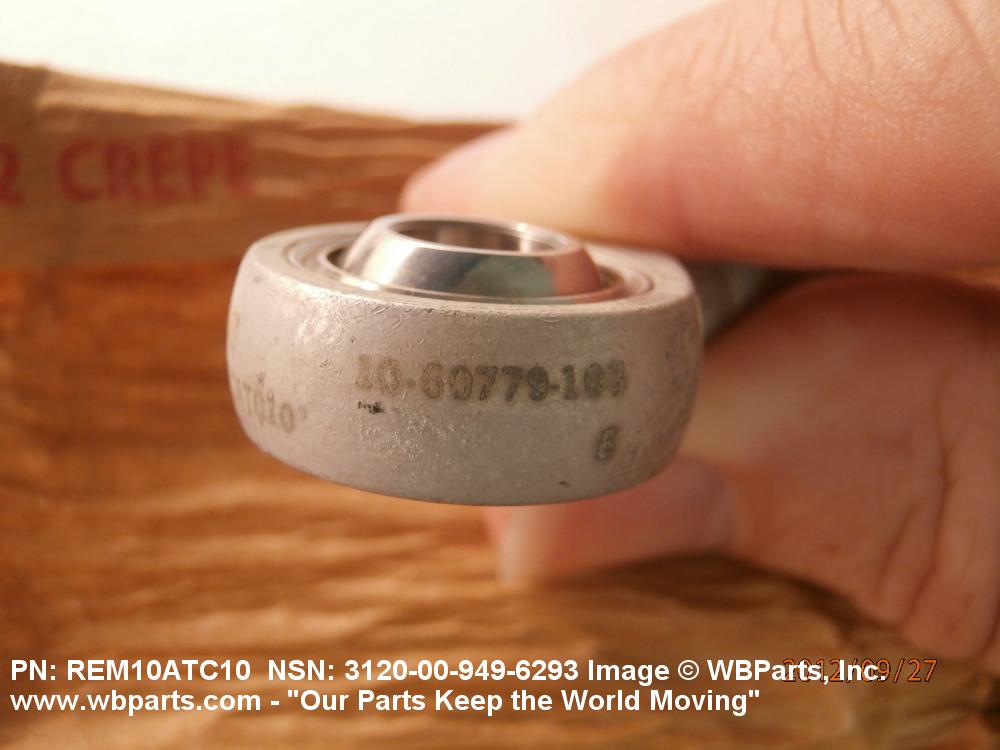

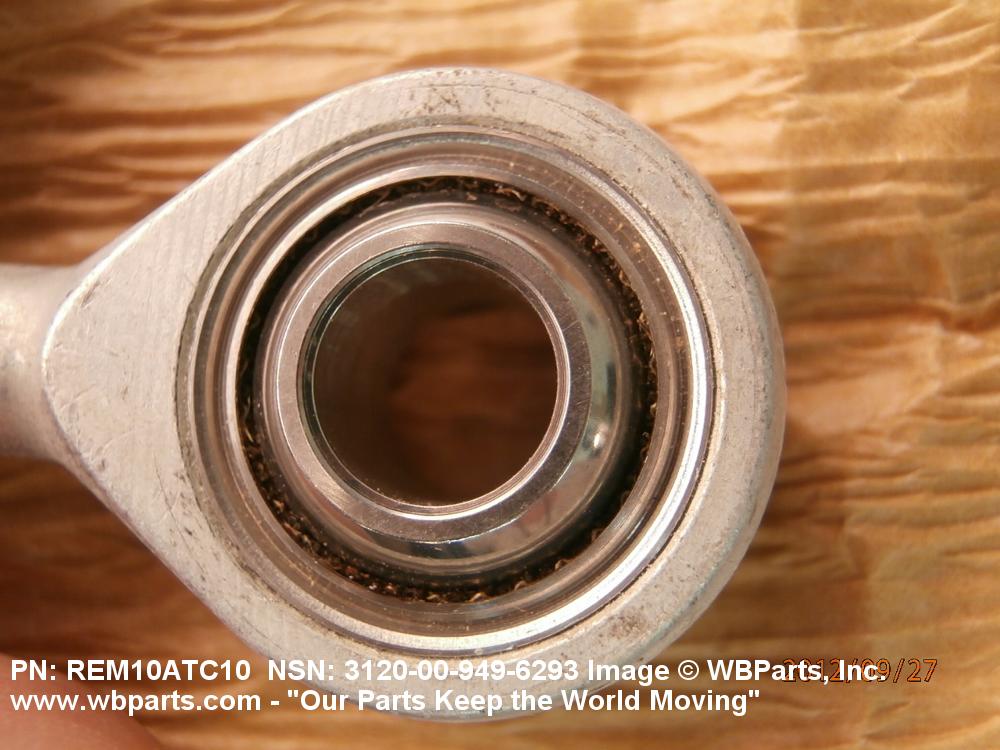

3120-00-949-6293 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: REM10ATC10, REM10ATC10ZM, 3120-00-949-6293, 00-949-6293, 3120009496293, 009496293
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 20 APR 1966 | 00-949-6293 | 13209 ( BEARING, PLAIN, ROD END ) |

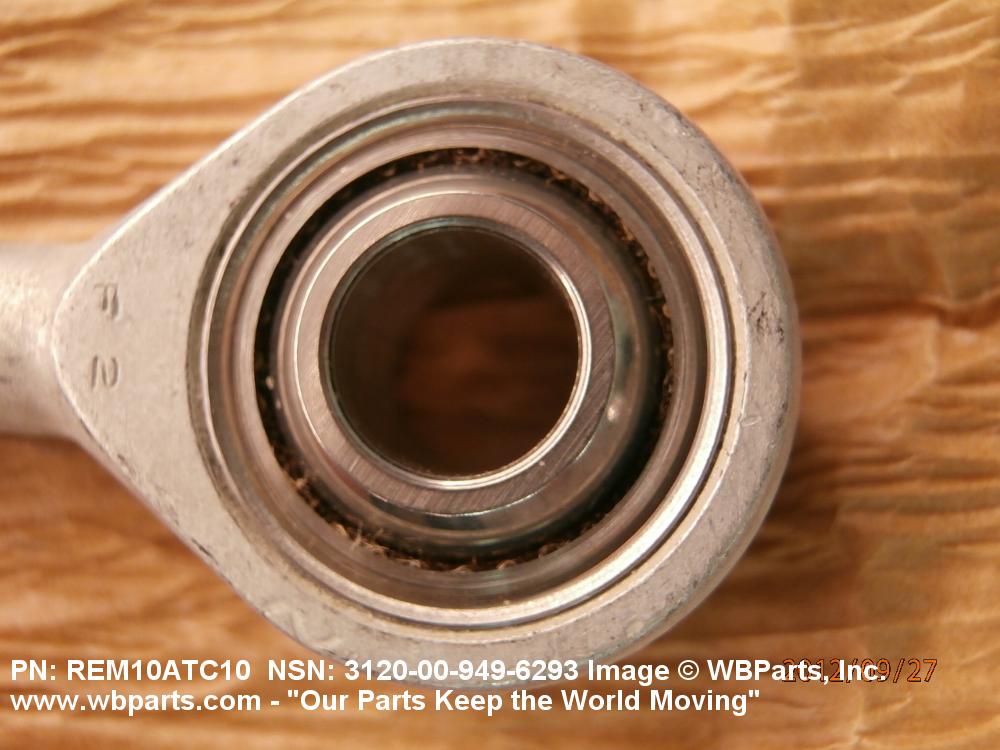

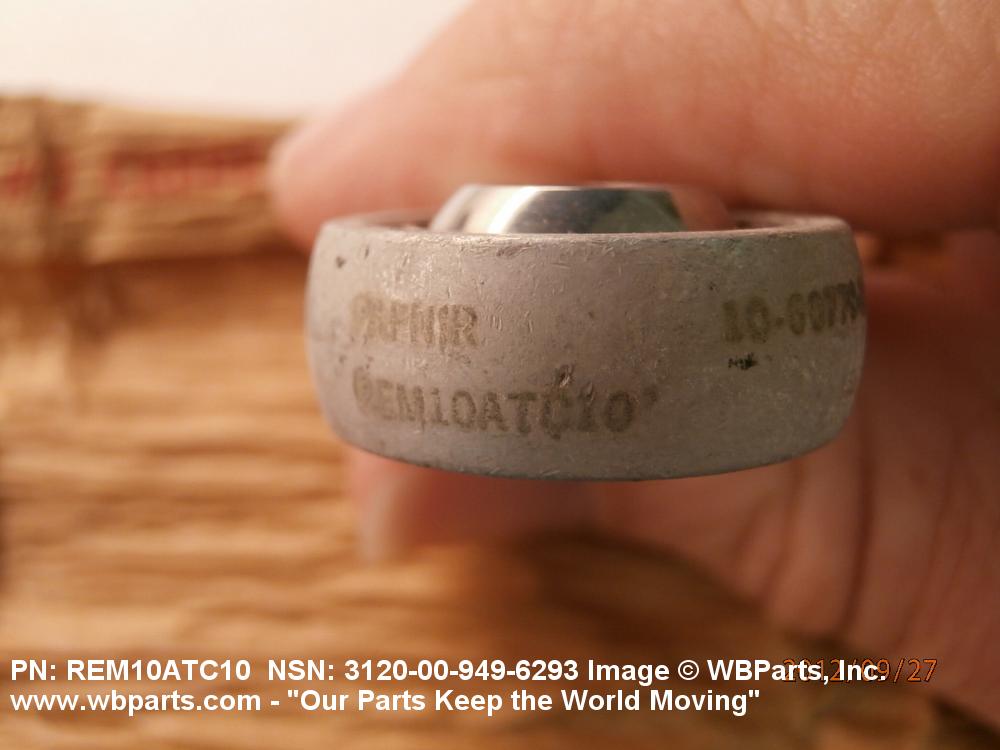

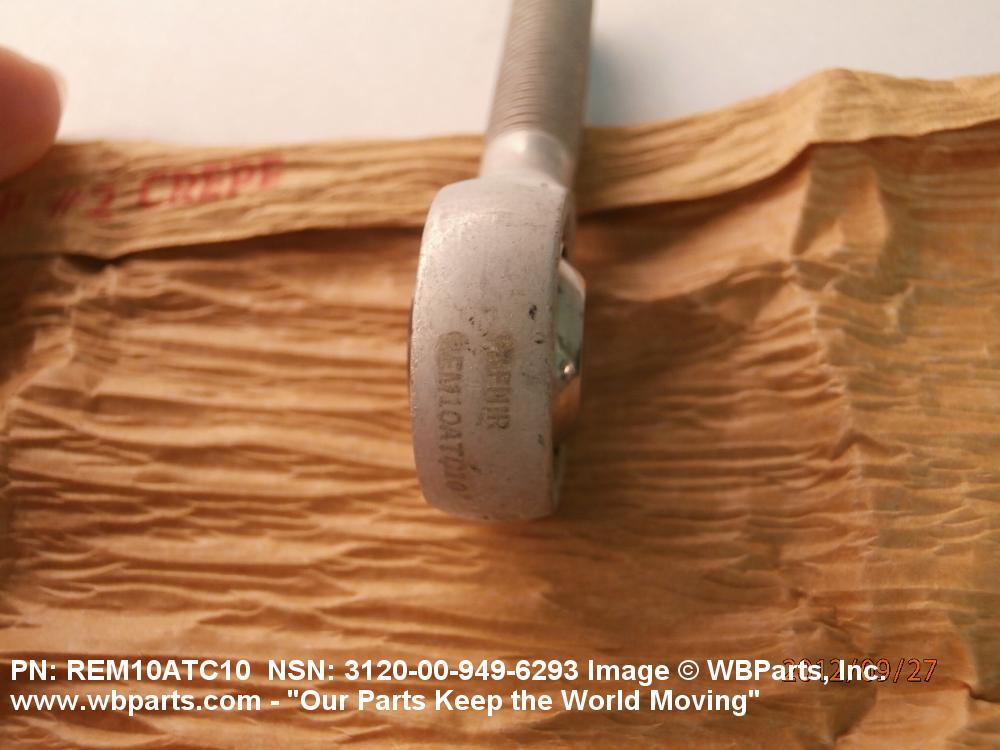

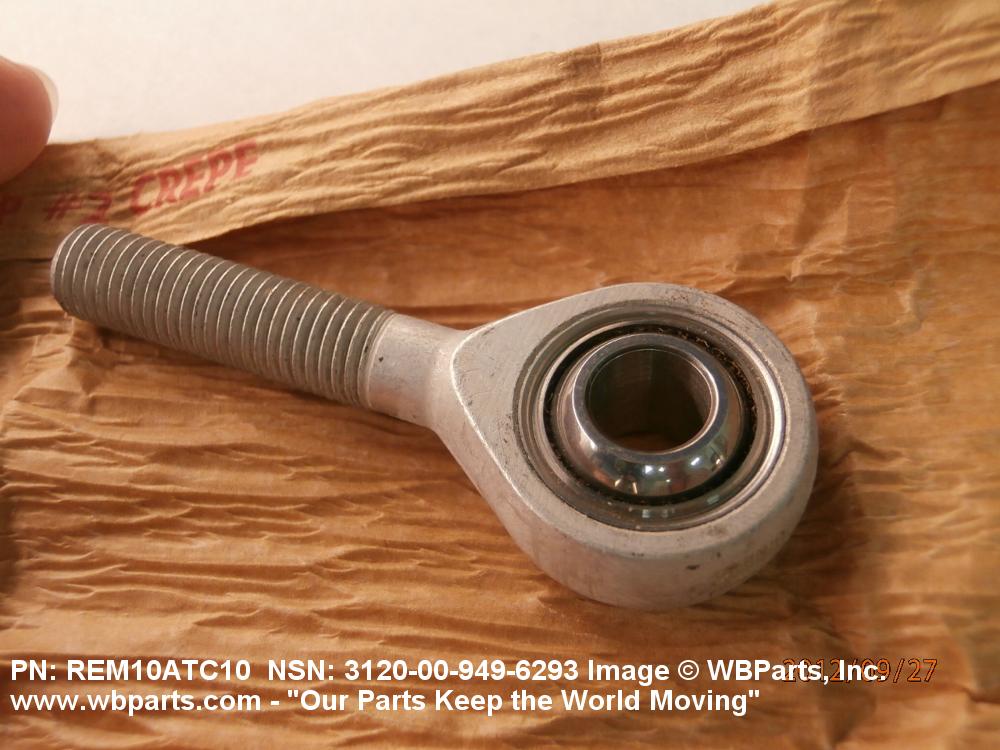

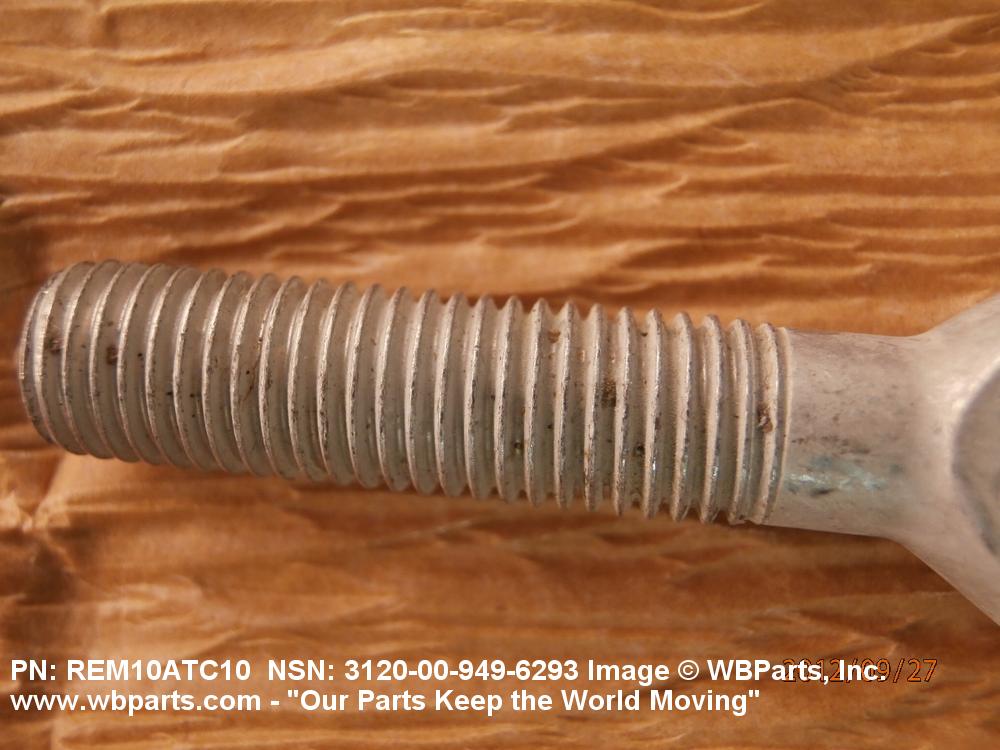

Drawings & Photos | NSN 3120-00-949-6293
Demand History | NSN 3120-00-949-6293
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-949-6293 | 2012-09-257 | 4 | United States |
| REM10ATC10ZM | 2008-05-134 | 1 | ZA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-949-6293
Related Products | NSN 3120-00-949-6293
Technical Data | NSN 3120-00-949-6293
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER STEEL COMP 4130 OUTER RACE MEMBER STEEL COMP 410 RACE INSERT PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER |
| HARDNESS RATING | 58.0 ROCKWELL C MINIMUM INNER MEMBER |
| SURFACE TREATMENT | CADMIUM ROD END BODY |
| STYLE DESIGNATOR | 6 BALL TYPE |
| OVERALL LENGTH | 2.3120 INCHES NOMINAL |
| BORE DIAMETER | 0.3125 INCHES MINIMUM AND 0.3126 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 0.8750 INCHES NOMINAL |
| BORE CENTER TO SHANK END DISTANCE | 1.8750 INCHES NOMINAL |
| OUTER MEMBER WIDTH | 0.3220 INCHES MINIMUM AND 0.3320 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.4355 INCHES MINIMUM AND 0.4375 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 5970 POUNDS |
| SHANK STYLE | 1 EXTERNALLY THREADED |
| SHANK THREAD LENGTH | 1.2900 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| THREAD DIAMETER | 0.312 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIAL FEATURES | PERMISSIBLE MISALIGNMENT IN EITHER DIRECTION 14 DEGREES |
