NSN 3120-01-024-8533 MSSR4514BAC, MSSR45-14BAC, NHNE4201

Product Details | ROD END PLAIN BEARING

3120-01-024-8533 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.

Part Alternates: MSSR4514BAC, MSSR45-14BAC, NHNE4201, NHNE4-201, ADNE4201, ADNE4-201, ART4E125, ART4E-125, DREM4057, DREM-4-057, DREM8014, DREM-8-014, KBDE 4-31, KBDE431, KBDE431A, KBDE4-31A, REM8ATC10, REM8ATC10Z, YTM124B, YTM-124-B, 1060779102, 10-60779-102, 3120-01-024-8533, 01-024-8533, 01-727-0250, 3120010248533, 010248533, 017270250

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	21 JUL 1976	01-024-8533	13209 ( BEARING, PLAIN, ROD END )

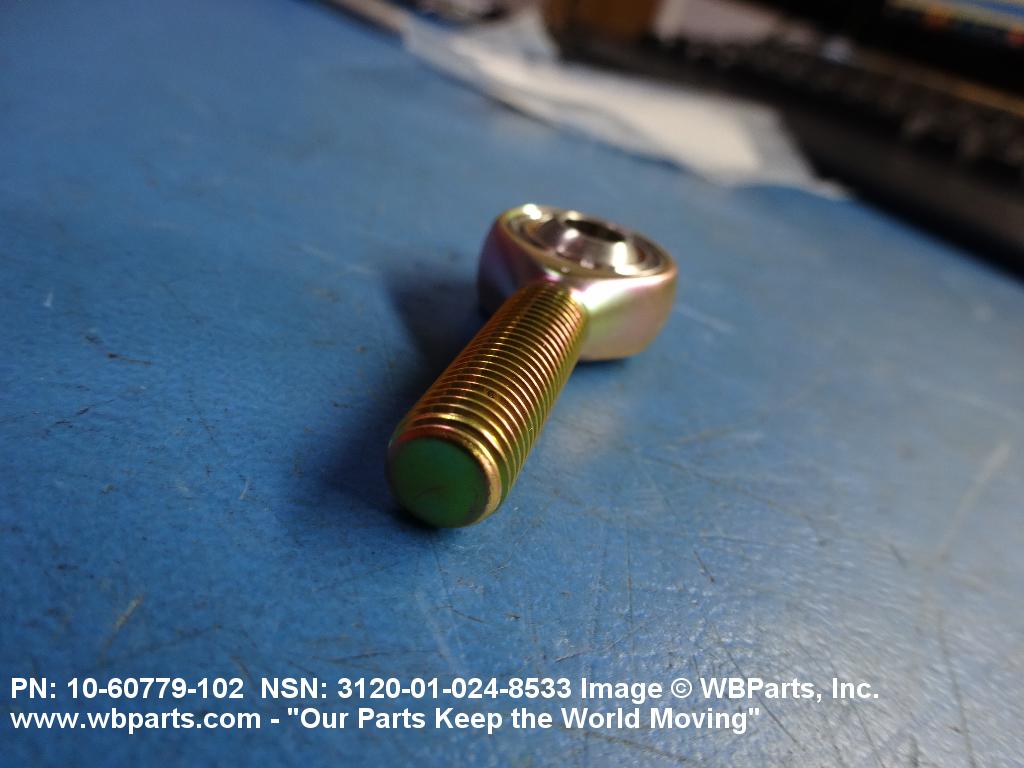

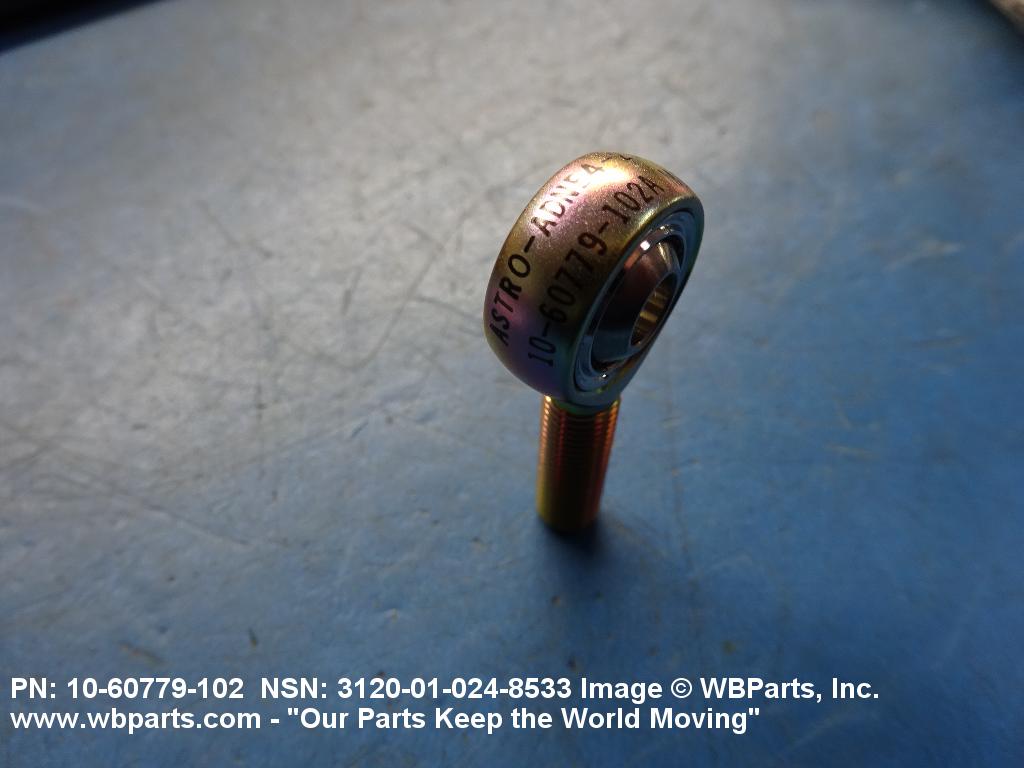

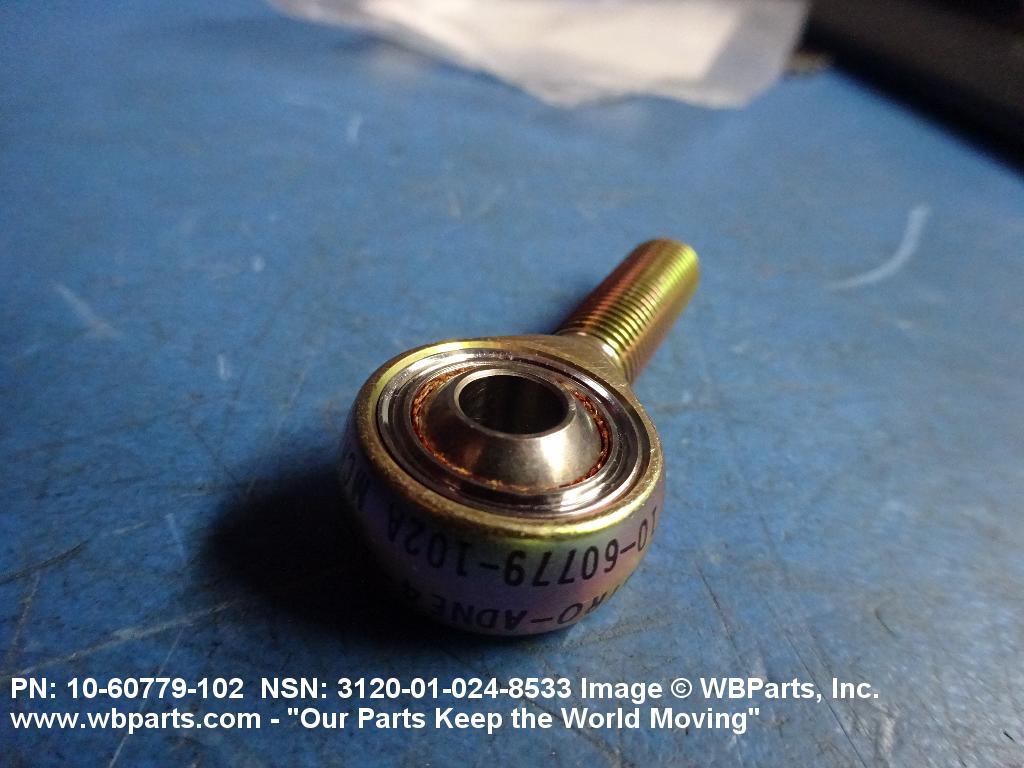

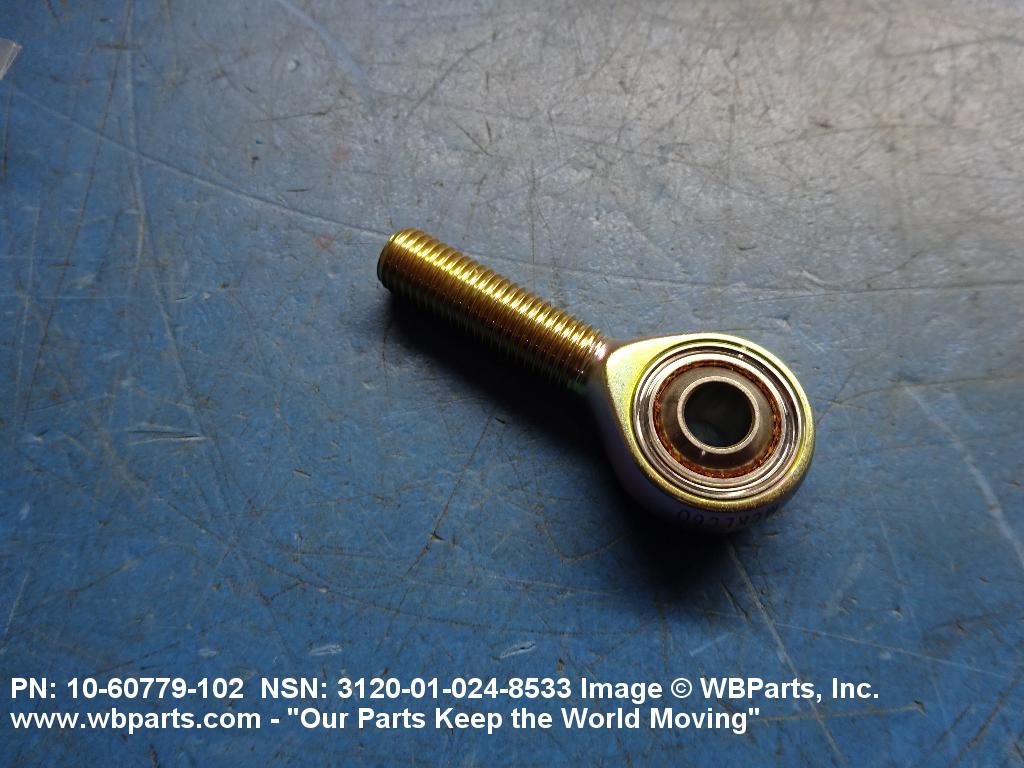

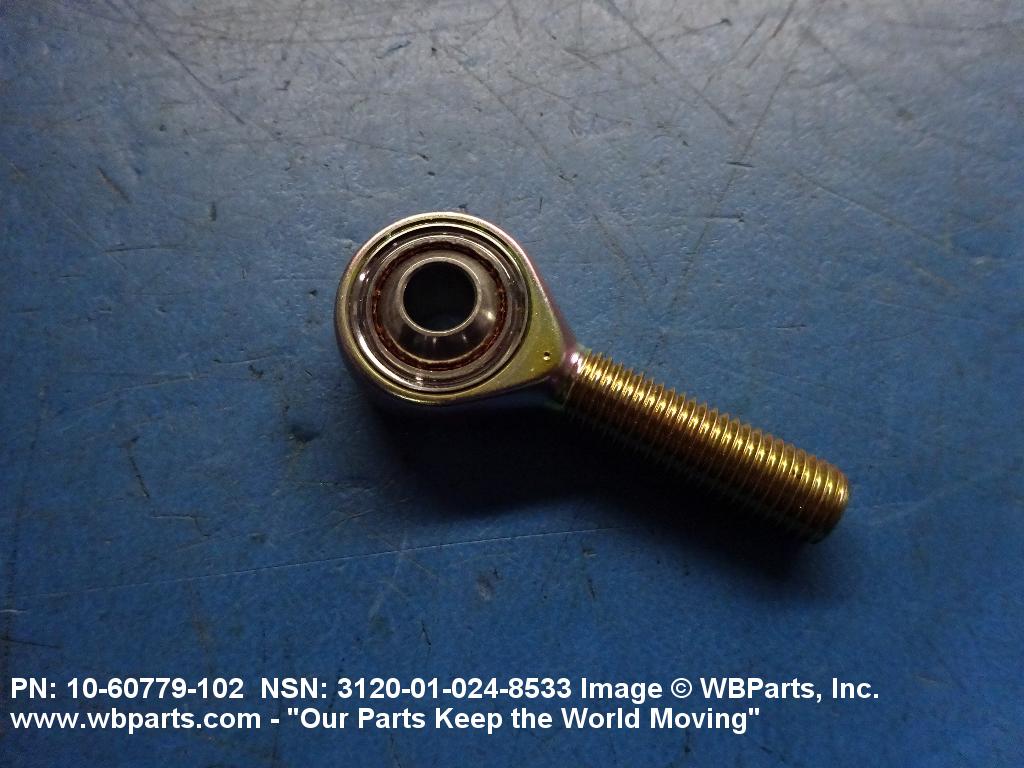

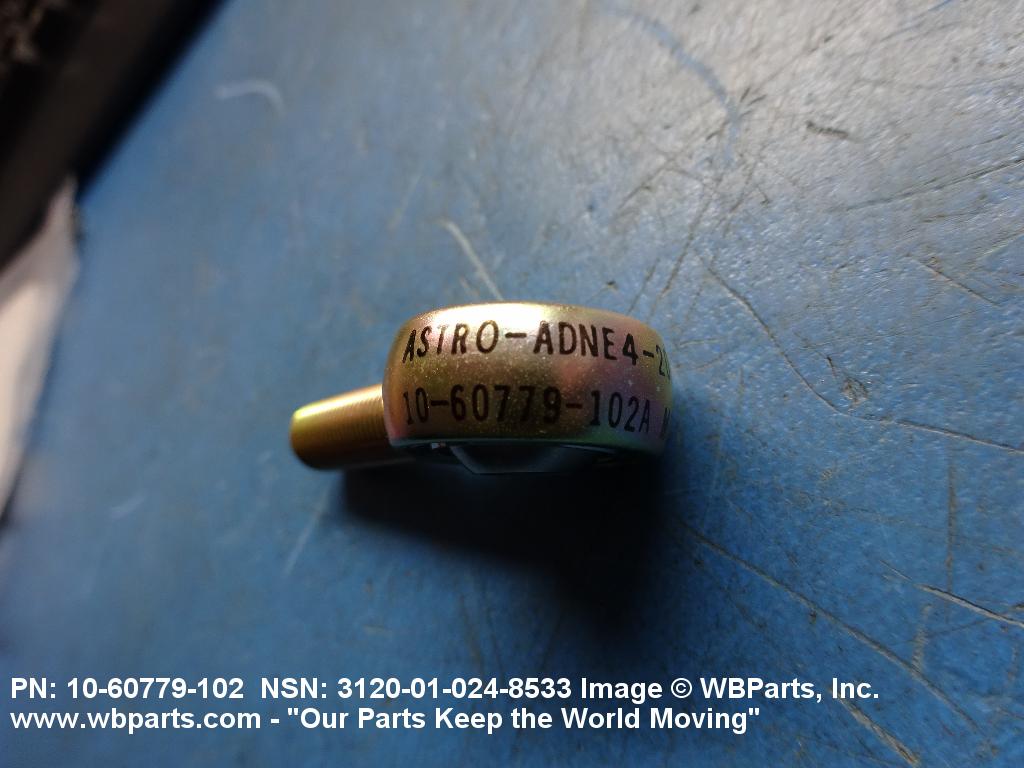

Drawings & Photos | NSN 3120-01-024-8533

Part Number	Request Date	QTY	Origin
10-60779-102	2025-09-254	61	DIBBS
10-60779-102	2024-10-298	33	DIBBS
10-60779-102	2024-10-290	33	DIBBS
10-60779-102	2023-10-289	13	DIBBS
3120-01-024-8533	2022-12-336	6	Czech Republic
3120-01-024-8533	2022-12-336	12	Czech Republic
10-60779-102	2022-05-124	23	DIBBS
10-60779-102	2022-04-109	23	DIBBS
10-60779-102	2022-04-102	107	DIBBS
10-60779-102	2022-03-79	13	DIBBS
10-60779-102	2021-10-300	66	DIBBS
10-60779-102	2021-10-291	28	DIBBS
10-60779-102	2021-10-290	66	DIBBS
10-60779-102	2021-10-280	28	DIBBS
10-60779-102	2021-07-196	13	DIBBS
10-60779-102	2021-03-74	66	DIBBS
KBDE431	2021-02-33	1	US
10-60779-102	2020-10-281	66	DIBBS
10-60779-102	2020-09-255	16	DIBBS
10-60779-102	2020-08-229	13	DIBBS
10-60779-102	2020-07-203	16	DIBBS
10-60779-102	2020-07-189	71	DIBBS
3120-01-024-8533	2017-07-194	141	DIBBS
3120-01-024-8533	2017-07-186	141	DIBBS
3120-01-024-8533	2017-02-43	37	DIBBS
3120-01-024-8533	2016-01-06	45	DIBBS
3120-01-024-8533	2013-11-311	113	DIBBS
3120-01-024-8533	2013-10-303	113	DIBBS
3120-01-024-8533	2013-05-121	61	DIBBS
3120-01-024-8533	2013-03-69	58	DIBBS
1060779102	2012-04-116	3	United States
3120-01-024-8533	2012-03-63	8	CZ
3120-01-024-8533	2011-05-133	361	DIBBS
3120-01-024-8533	2011-04-104	355	DIBBS
3120-01-024-8533	2008-10-282	72	DIBBS
NHNE4201	2008-09-255	10	US
3120-01-024-8533	2008-04-109	11	DIBBS
1060779102	2008-03-78	110	United States
3120-01-024-8533	2007-09-249	28	DIBBS
REM8ATC10	2007-07-187	5	United States
3120-01-024-8533	2007-05-150	28	DIBBS

Cross Reference | NSN 3120-01-024-8533

Part Number	Cage Code	Manufacturer
01-727-0250	09455	RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS
10-60779-102	09455	RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS
10-60779-102	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION
10-60779-102	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
10-60779-102	50294	NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB
10-60779-102	56644	AURORA BEARING COMPANY
10-60779-102	73134	ROLLER BEARING COMPANY OF AMERICA, INC.
10-60779-102	81205	THE BOEING COMPANY DBA BOEING
10-60779-102	81376	RBC SOUTHWEST PRODUCTS, INC.
10-60779-102	97613	DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING
ADNE4-201	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION
ART4E-125	50294	NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB
DREM-4-057	81376	RBC SOUTHWEST PRODUCTS, INC.
DREM-8-014	81376	RBC SOUTHWEST PRODUCTS, INC.
KBDE 4-31	97613	DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING
KBDE4-31A	97613	DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING
MSSR45-14BAC	73134	ROLLER BEARING COMPANY OF AMERICA, INC.
NHNE4-201	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION
REM8ATC10	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
REM8ATC10	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
REM8ATC10Z	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
YTM-124-B	77896	REXNORD INDUSTRIES, LLC DIV BEARING OPERATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-01-024-8533

Compare

Related Products | NSN 3120-01-024-8533

3120-01-024-9167, 3120-01-024-9168, 3120-01-024-9503, 3120-01-024-9619, 3120-01-024-9708

Technical Data | NSN 3120-01-024-8533

Characteristic	Specifications
MATERIAL	STEEL COMP 440C INNER MEMBER STEEL CORROSION RESISTING RACE INSERT PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER STEEL COMP 4340 OR STEEL COMP 630 ROD END BODY
HARDNESS RATING	55.0 ROCKWELL C MINIMUM AND 61.0 ROCKWELL C MAXIMUM INNER MEMBER 39.0 ROCKWELL C MINIMUM AND 44.0 ROCKWELL C MAXIMUM ROD END BODY
SURFACE TREATMENT	CADMIUM OR PASSIVATE ROD END BODY
STYLE DESIGNATOR	6 BALL TYPE

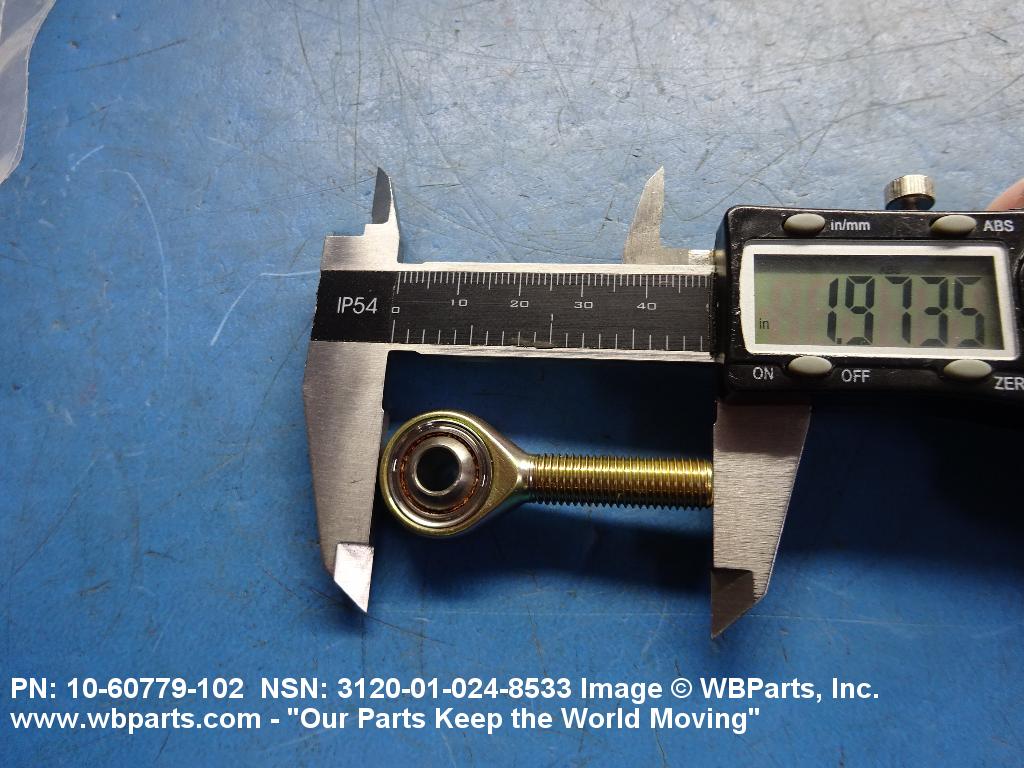

OVERALL LENGTH	1.9500 INCHES MINIMUM AND 1.9800 INCHES MAXIMUM

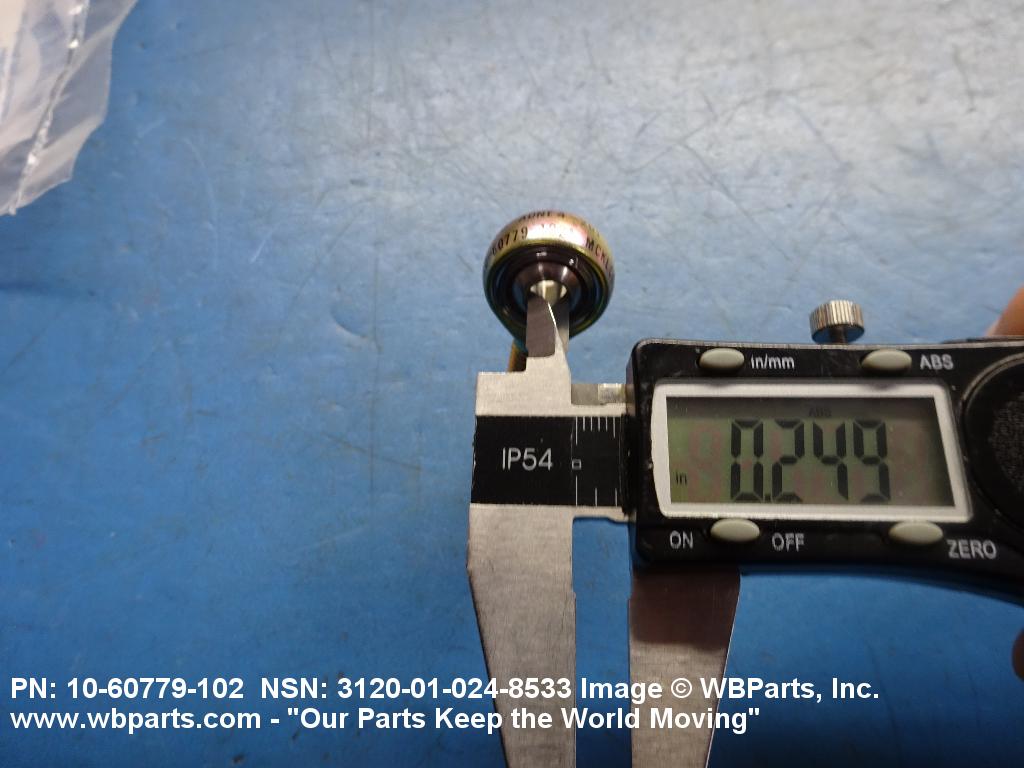

BORE DIAMETER	0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM

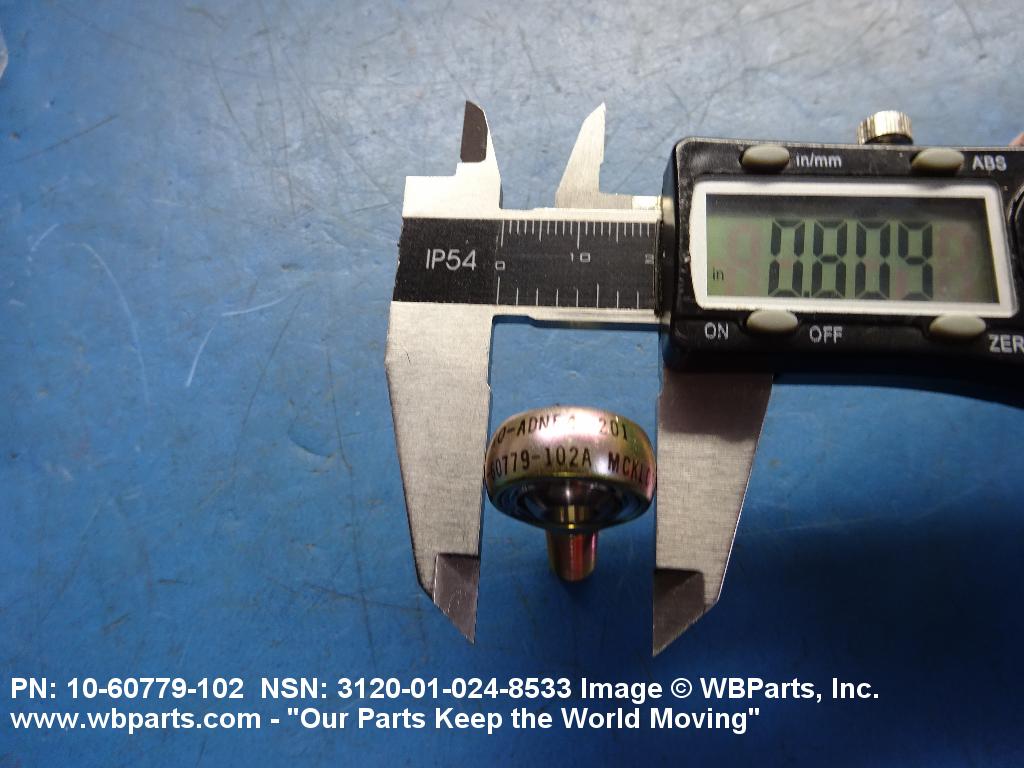

OUTER MEMBER OUTSIDE DIAMETER	0.7960 INCHES MINIMUM AND 0.8160 INCHES MAXIMUM

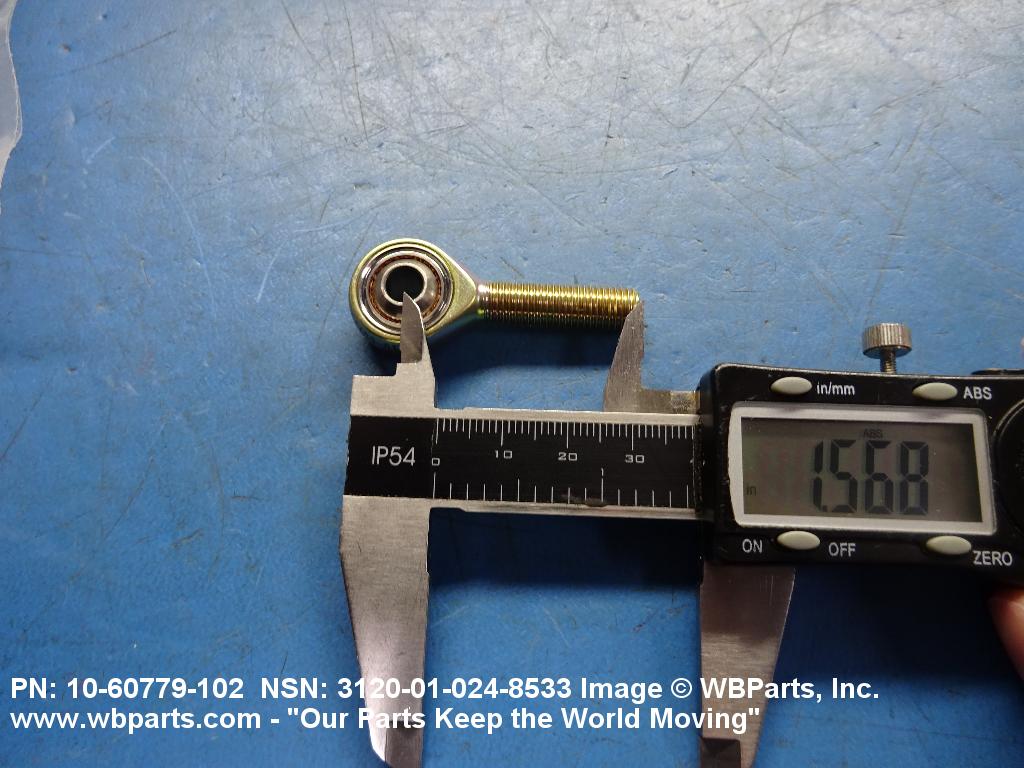

BORE CENTER TO SHANK END DISTANCE	1.5520 INCHES MINIMUM AND 1.5720 INCHES MAXIMUM
OUTER MEMBER WIDTH	0.3320 INCHES MINIMUM AND 0.3420 INCHES MAXIMUM

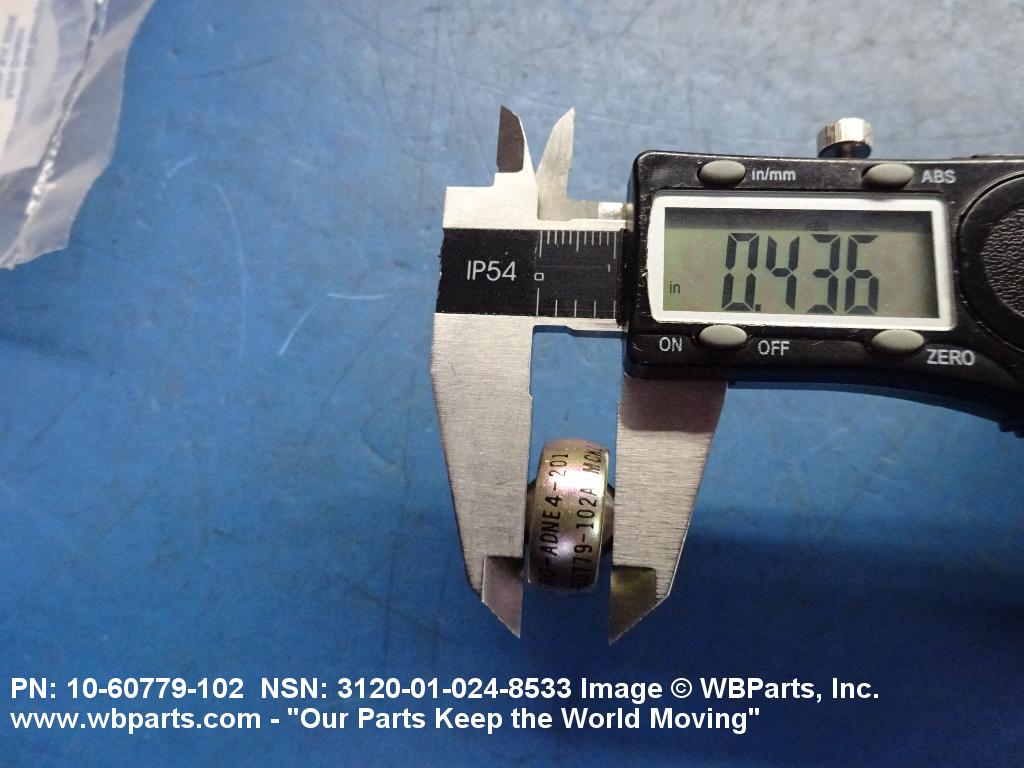

INNER MEMBER WIDTH	0.4350 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM
STATIC RADIAL LOAD RATING	6700 POUNDS
SHANK STYLE	1 EXTERNALLY THREADED
SHANK THREAD LENGTH	0.9690 INCHES MINIMUM AND 1.0620 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNF

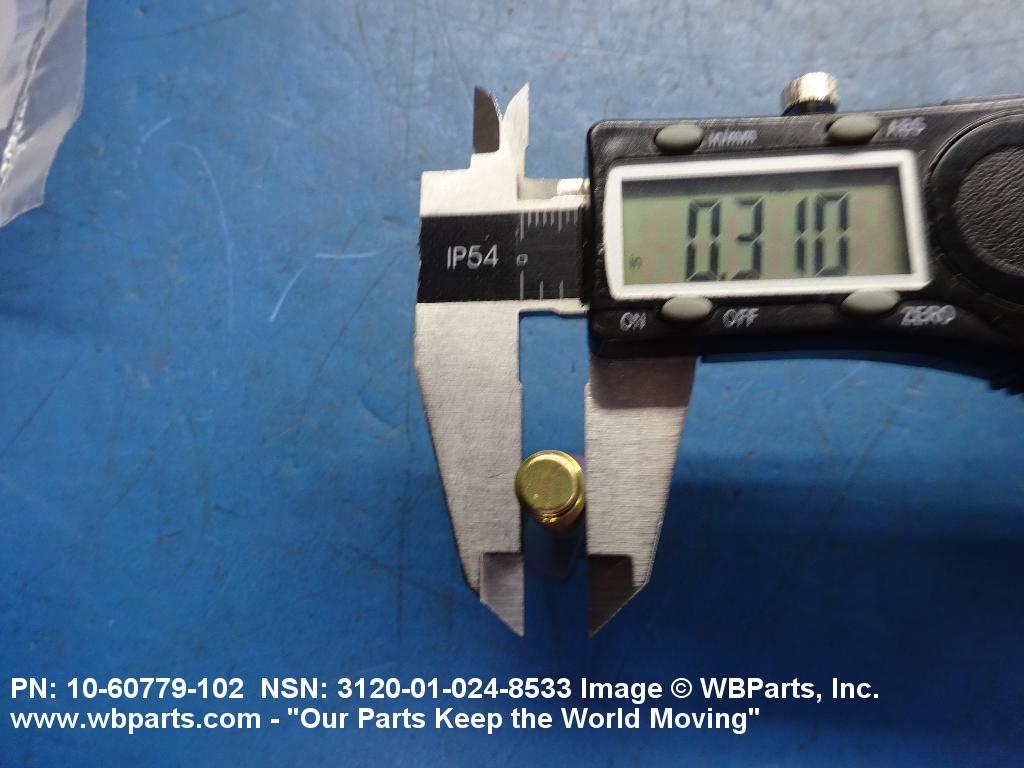

THREAD DIAMETER	0.312 INCHES NOMINAL
THREAD QUANTITY PER INCH	24
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
MANUFACTURERS CODE	81205
MFR SOURCE CONTROLLING REFERENCE	10-60779-102

Restrictions/Controls & Freight Information | NSN 3120-01-024-8533

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	156600	PLASTIC/RUBBER ARTICLE VIZ:
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3120-01-024-8533

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
