NSN 3120-01-094-2263 MS2124210, MS21242-10, MS21242S10
Product Details | ROD END PLAIN BEARING
3120-01-094-2263 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: MS2124210, MS21242-10, MS21242S10, M81935/1-10, M81935110, AS81935, MIL-B-81935/1, MILB819351, 3120-01-094-2263, 01-094-2263, 3120010942263, 010942263
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 06 MAY 1980 | 01-094-2263 | 13209 ( BEARING, PLAIN, ROD END ) |

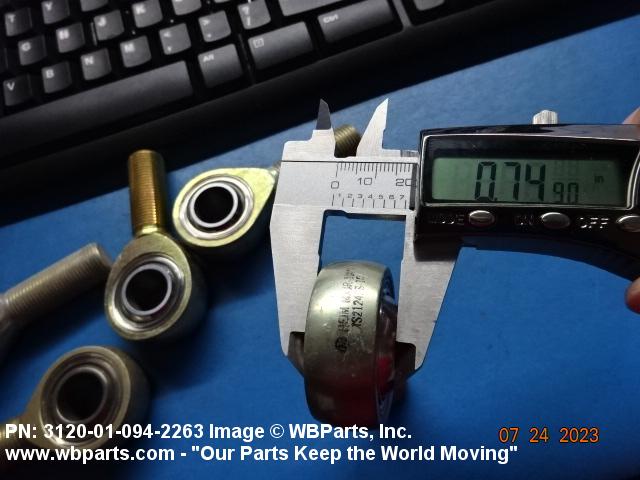

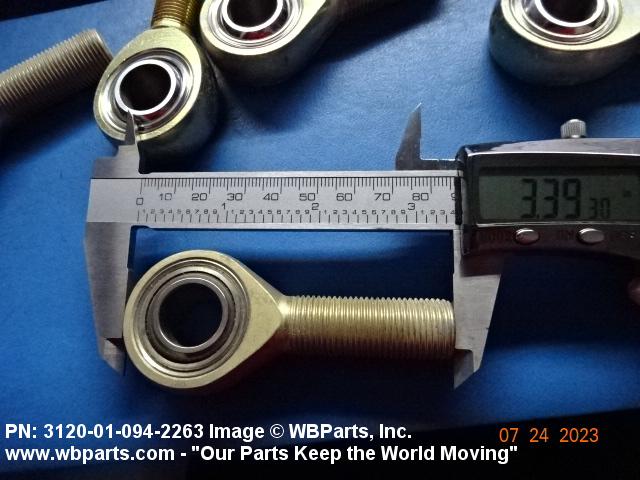

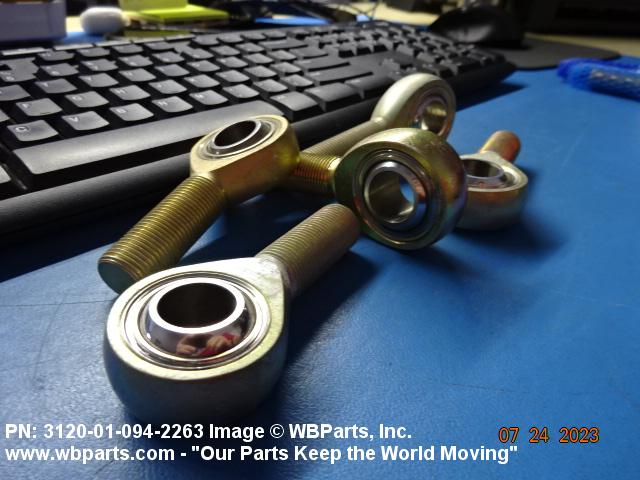

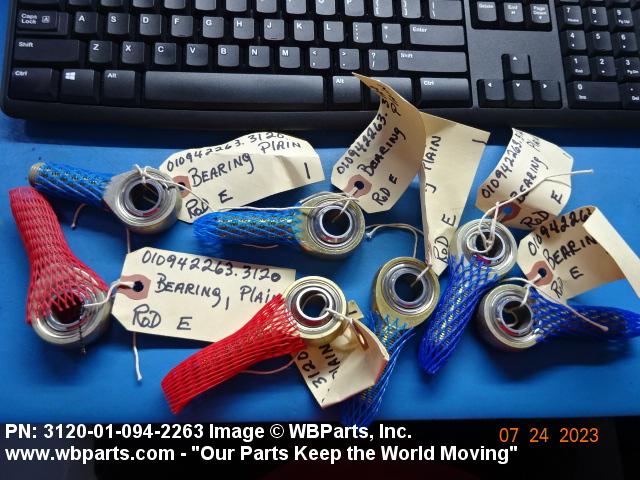

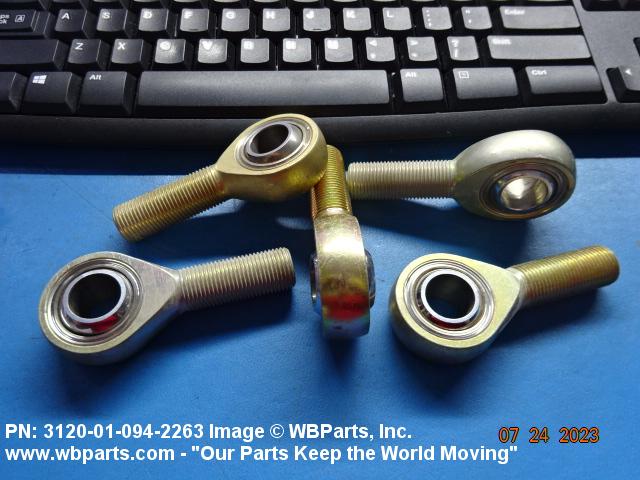

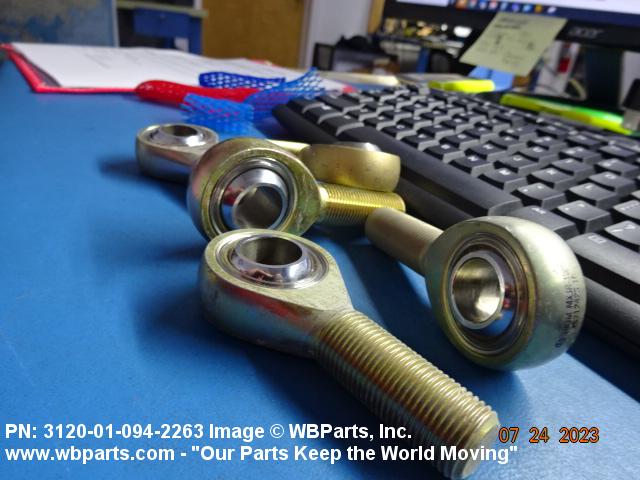

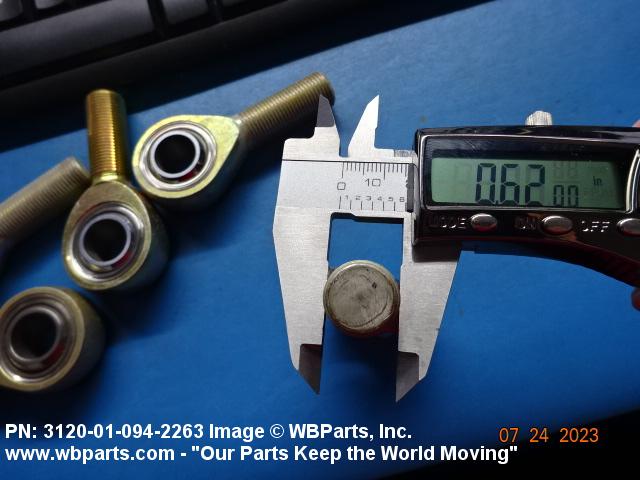

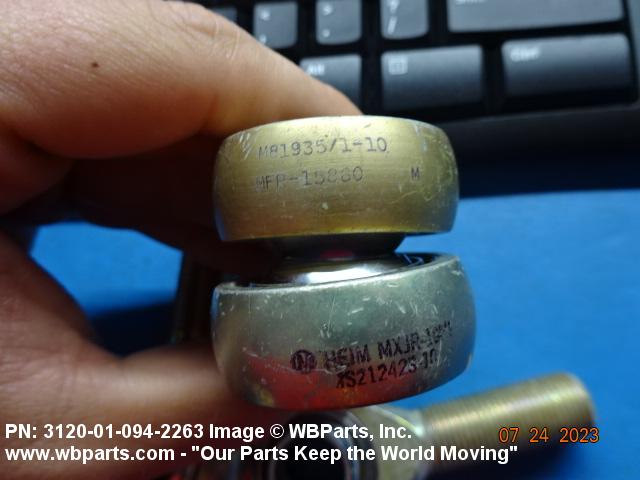

Drawings & Photos | NSN 3120-01-094-2263
Demand History | NSN 3120-01-094-2263
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-094-2263 | 2025-12-342 | 34 | DIBBS |
| 3120-01-094-2263 | 2024-08-219 | 13 | DIBBS |
| 3120-01-094-2263 | 2024-07-211 | 13 | DIBBS |
| 3120-01-094-2263 | 2024-04-96 | 22 | DIBBS |
| 3120-01-094-2263 | 2024-03-77 | 22 | DIBBS |
| 3120-01-094-2263 | 2023-11-332 | 59 | DIBBS |
| 3120-01-094-2263 | 2023-09-262 | 1 | South Africa |
| 3120-01-094-2263 | 2023-09-250 | 1 | South Africa |
| 3120-01-094-2263 | 2023-07-212 | 1 | South Africa |
| 3120-01-094-2263 | 2023-07-194 | 4 | South Africa |
| 3120-01-094-2263 | 2023-07-191 | 8 | South Africa |
| 3120-01-094-2263 | 2023-06-170 | 12 | DIBBS |
| M81935110 | 2023-04-102 | 12 | South Africa |
| M81935110 | 2022-04-97 | 6 | us |
| M81935110 | 2021-12-349 | 10 | us |
| 3120-01-094-2263 | 2020-03-87 | 2 | United States |
| 3120-01-094-2263 | 2019-08-241 | 161 | DIBBS |
| 3120-01-094-2263 | 2019-08-233 | 161 | DIBBS |
| 3120-01-094-2263 | 2017-09-263 | 139 | DIBBS |
| 3120-01-094-2263 | 2017-09-250 | 139 | DIBBS |
| 3120-01-094-2263 | 2017-02-41 | 10 | US |
| 3120-01-094-2263 | 2013-08-217 | 84 | US |
| 3120-01-094-2263 | 2011-03-83 | 13 | US |
| MS21242S10 | 2009-04-93 | 12 | US |
| M81935110 | 2009-02-35 | 1 | US |
| M81935110 | 2008-11-316 | 74 | us |
| AS81935 | 2008-02-42 | 4 | US |
Cross Reference | NSN 3120-01-094-2263
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS81935 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M81935/1-10 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M81935/1-10 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-B-81935/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS21242-10 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21242S10 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-094-2263
Related Products | NSN 3120-01-094-2263
Technical Data | NSN 3120-01-094-2263
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER STEEL COMP 630 RACE INSERT PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER STEEL COMP E4340 ROD END BODY |
| HARDNESS RATING | 55.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER 28.0 ROCKWELL C MINIMUM AND 37.0 ROCKWELL C MAXIMUM RACE INSERT 39.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM ROD END BODY |
| SURFACE TREATMENT | CADMIUM AND CHROMATE ROD END BODY |
| STYLE DESIGNATOR | 6 BALL TYPE |
| OVERALL LENGTH | 3.3875 INCHES NOMINAL |

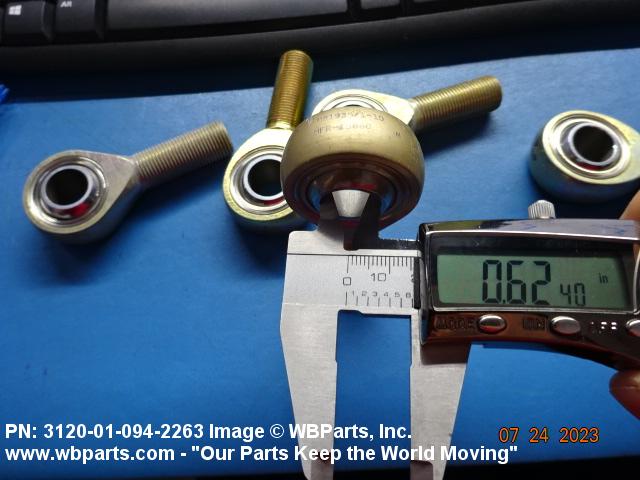

| BORE DIAMETER | 0.6245 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 1.5150 INCHES MINIMUM AND 1.5350 INCHES MAXIMUM |
| BORE CENTER TO SHANK END DISTANCE | 2.6150 INCHES MINIMUM AND 2.6350 INCHES MAXIMUM |

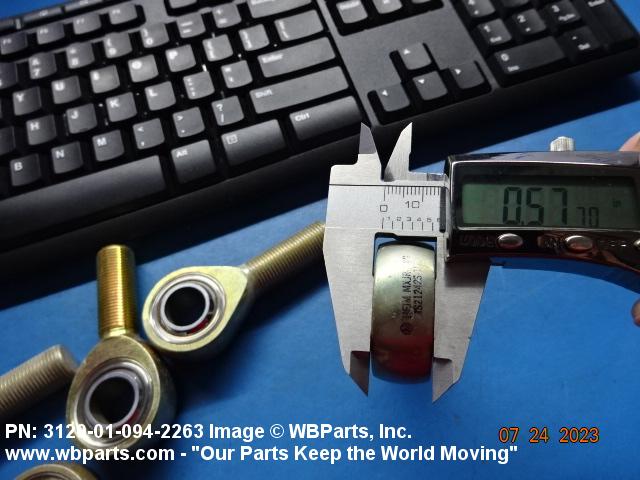

| OUTER MEMBER WIDTH | 0.5720 INCHES MINIMUM AND 0.5820 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.7480 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 21900 POUNDS |
| SHANK STYLE | 1 EXTERNALLY THREADED |
| SHANK THREAD LENGTH | 1.5310 INCHES MINIMUM AND 1.5930 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNF |

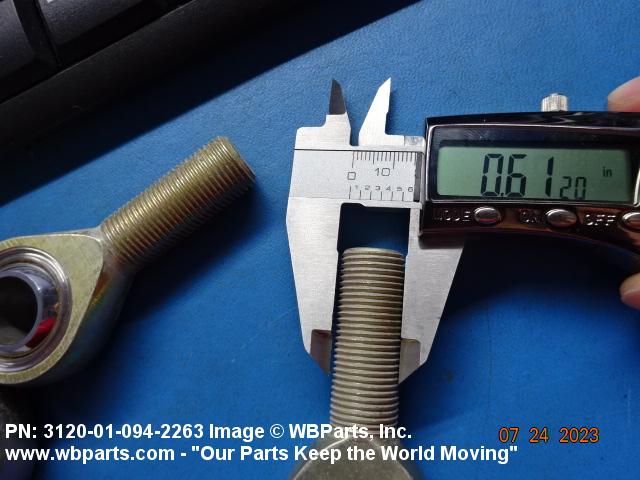

| THREAD DIAMETER | 0.625 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
Restrictions/Controls & Freight Information | NSN 3120-01-094-2263
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-094-2263
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | M | Armored Carriers |
| Weapons Systems/End Item or Homogeneous Group | MM | Infantry Fighting Vehicle (M2, M2A1, M2A2), Cavelry Fighting Vehicle (M3, M3A1, M3A2) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
