NSN 3120-01-119-3712 MW423, MW-4-23, HF-4M
Product Details | ROD END PLAIN BEARING
3120-01-119-3712 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: MW423, MW-4-23, HF-4M, TR4, HF4M, 11083, 3120-01-119-3712, 01-119-3712, 3120011193712, 011193712
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 23 SEP 1981 | 01-119-3712 | 13209 ( BEARING, PLAIN, ROD END ) |

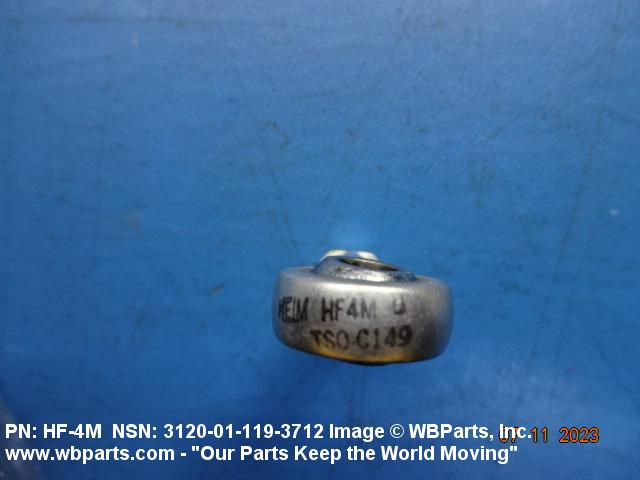

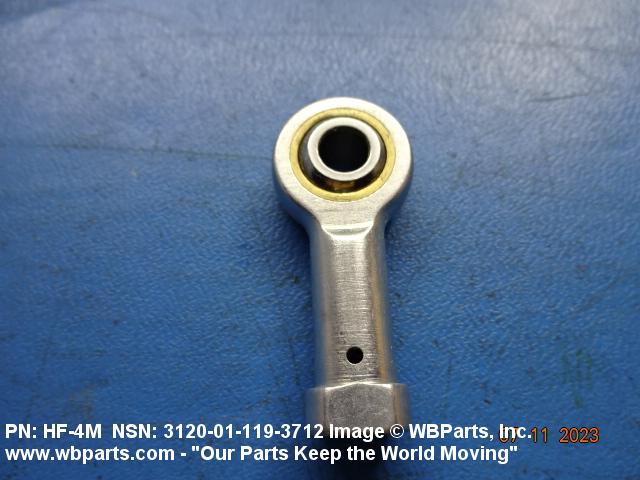

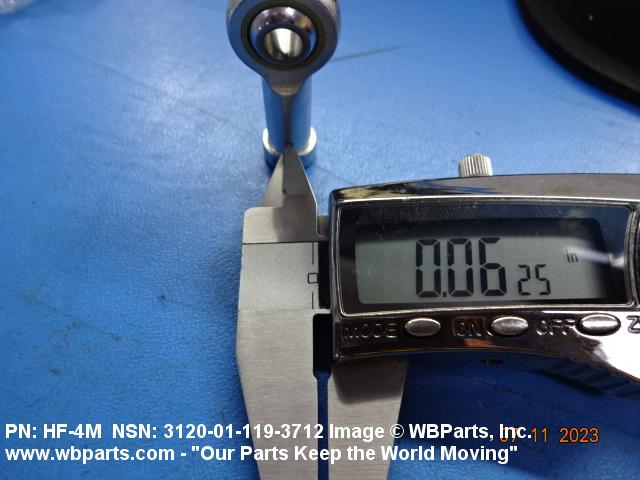

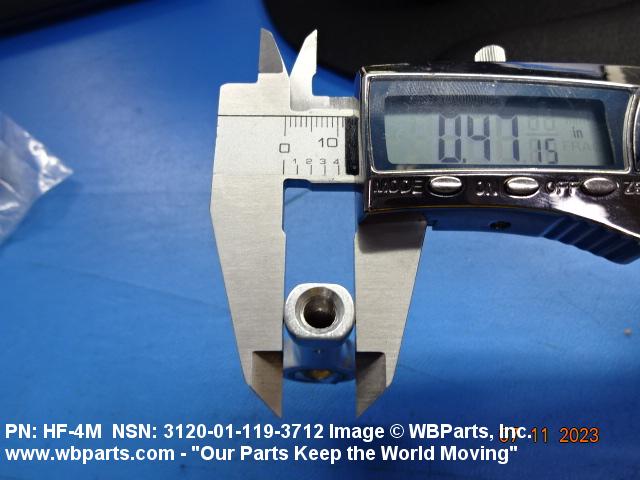

Drawings & Photos | NSN 3120-01-119-3712
Demand History | NSN 3120-01-119-3712
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 11083 | 2025-10-300 | 50 | DIBBS |
| HF-4M | 2025-10-300 | 50 | DIBBS |
| MW-4-23 | 2025-10-300 | 50 | DIBBS |
| 11083 | 2025-10-292 | 50 | DIBBS |
| HF-4M | 2025-10-292 | 50 | DIBBS |
| MW-4-23 | 2025-10-292 | 50 | DIBBS |
| 11083 | 2025-03-82 | 455 | DIBBS |
| HF-4M | 2025-03-82 | 455 | DIBBS |
| MW-4-23 | 2025-03-82 | 455 | DIBBS |
| 11083 | 2024-06-164 | 30 | DIBBS |
| HF-4M | 2024-06-164 | 30 | DIBBS |
| MW-4-23 | 2024-06-164 | 30 | DIBBS |
| 11083 | 2024-02-37 | 89 | DIBBS |
| HF-4M | 2024-02-37 | 89 | DIBBS |
| MW-4-23 | 2024-02-37 | 89 | DIBBS |
| 11083 | 2023-12-361 | 46 | DIBBS |
| HF-4M | 2023-12-361 | 46 | DIBBS |
| MW-4-23 | 2023-12-361 | 46 | DIBBS |
| 11083 | 2023-08-232 | 56 | DIBBS |
| HF-4M | 2023-08-232 | 56 | DIBBS |
| MW-4-23 | 2023-08-232 | 56 | DIBBS |
| 3120-01-119-3712 | 2023-07-191 | 50 | United States |
| HF4M | 2023-03-73 | 5 | South Africa |
| 11083 | 2023-02-59 | 46 | DIBBS |
| HF-4M | 2023-02-59 | 46 | DIBBS |
| MW-4-23 | 2023-02-59 | 46 | DIBBS |
| 11083 | 2023-02-51 | 46 | DIBBS |
| HF-4M | 2023-02-51 | 46 | DIBBS |
| MW-4-23 | 2023-02-51 | 46 | DIBBS |
| 11083 | 2022-11-326 | 10 | DIBBS |
| HF-4M | 2022-11-326 | 10 | DIBBS |
| MW-4-23 | 2022-11-326 | 10 | DIBBS |
| 11083 | 2022-11-324 | 89 | DIBBS |
| HF-4M | 2022-11-324 | 89 | DIBBS |
| MW-4-23 | 2022-11-324 | 89 | DIBBS |
| 11083 | 2022-11-318 | 10 | DIBBS |
| HF-4M | 2022-11-318 | 10 | DIBBS |
| MW-4-23 | 2022-11-318 | 10 | DIBBS |
| 11083 | 2022-06-181 | 73 | DIBBS |
| HF-4M | 2022-06-181 | 73 | DIBBS |
| MW-4-23 | 2022-06-181 | 73 | DIBBS |
| 11083 | 2022-06-173 | 73 | DIBBS |
| HF-4M | 2022-06-173 | 73 | DIBBS |
| MW-4-23 | 2022-06-173 | 73 | DIBBS |
| 11083 | 2022-01-10 | 227 | DIBBS |
| HF-4M | 2022-01-10 | 227 | DIBBS |
| MW-4-23 | 2022-01-10 | 227 | DIBBS |
| 11083 | 2022-01-02 | 227 | DIBBS |
| HF-4M | 2022-01-02 | 227 | DIBBS |
| MW-4-23 | 2022-01-02 | 227 | DIBBS |
| HF4M | 2020-10-289 | 1 | South Africa |
| 3120-01-119-3712 | 2014-10-296 | 740 | DIBBS |
| 3120-01-119-3712 | 2014-10-288 | 740 | DIBBS |
| 3120-01-119-3712 | 2013-06-163 | 4 | US |
| 3120-01-119-3712 | 2013-06-161 | 6 | Greece |
| 3120-01-119-3712 | 2011-06-155 | 441 | DIBBS |
| 3120-01-119-3712 | 2010-05-141 | 262 | DIBBS |
| 3120-01-119-3712 | 2010-04-104 | 20 | DIBBS |
| 3120-01-119-3712 | 2010-01-07 | 42 | DIBBS |
| 3120-01-119-3712 | 2009-11-307 | 41 | DIBBS |
| 3120-01-119-3712 | 2007-08-242 | 44 | DIBBS |
| 3120-01-119-3712 | 2007-02-51 | 84 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-119-3712
Related Products | NSN 3120-01-119-3712
Technical Data | NSN 3120-01-119-3712
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 INNER LAYER COPPER ALLOY RACE INSERT STEEL COMP 1109 OR STEEL COMP 1110 OR STEEL COMP 1116 OR STEEL COMP 1117 OR STEEL COMP 1118 OR STEEL COMP 1119 ROD END BODY |
| HARDNESS RATING | 60.0 ROCKWELL C MINIMUM INNER MEMBER |
| SURFACE TREATMENT | CADMIUM ROD END BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE ROD END BODY |
| STYLE DESIGNATOR | 6 BALL TYPE |

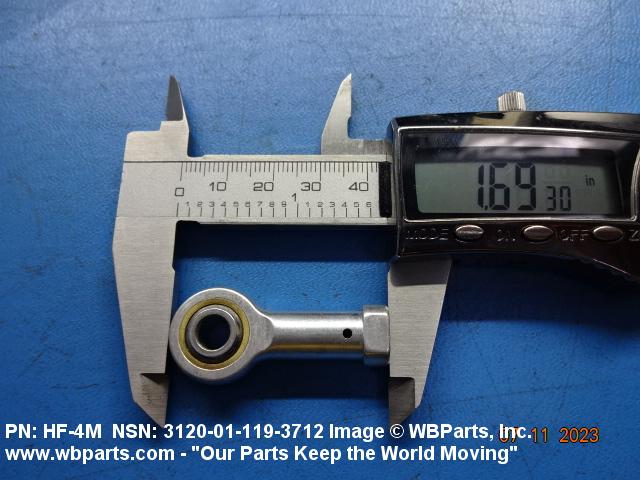

| OVERALL LENGTH | 1.6870 INCHES NOMINAL |

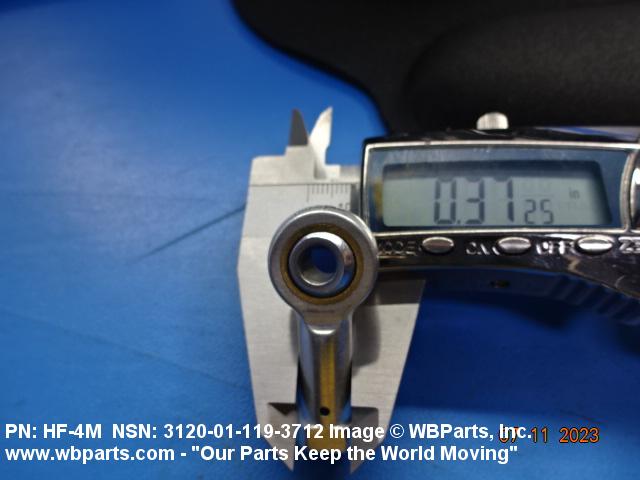

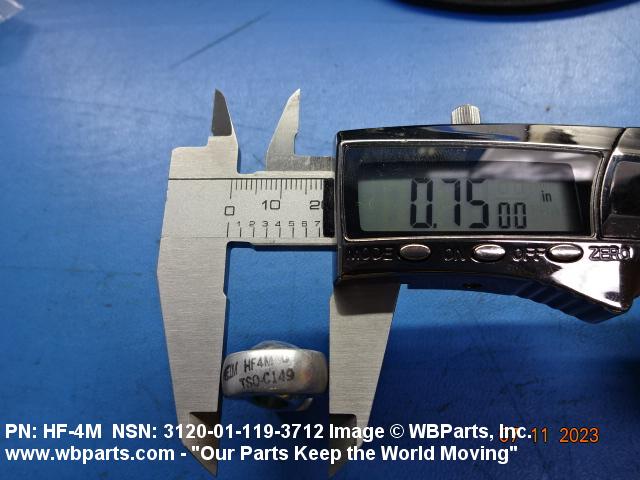

| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2515 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 0.7400 INCHES MINIMUM AND 0.7600 INCHES MAXIMUM |

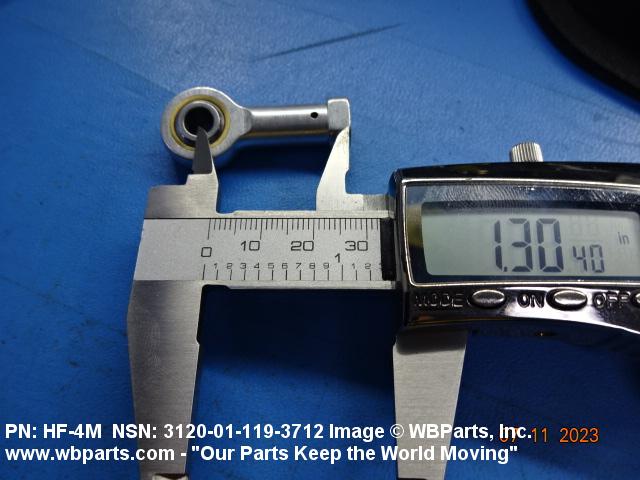

| BORE CENTER TO SHANK END DISTANCE | 1.3020 INCHES MINIMUM AND 1.3220 INCHES MAXIMUM |

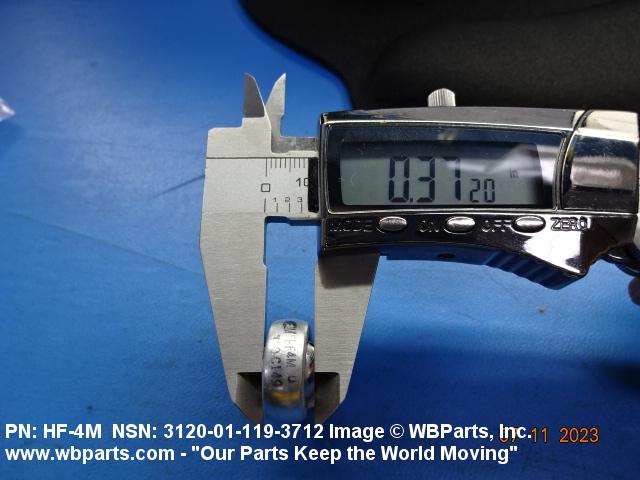

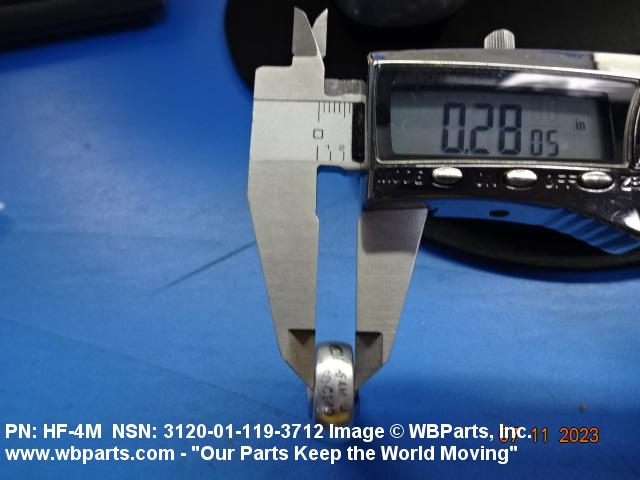

| OUTER MEMBER WIDTH | 0.2760 INCHES MINIMUM AND 0.2860 INCHES MAXIMUM |

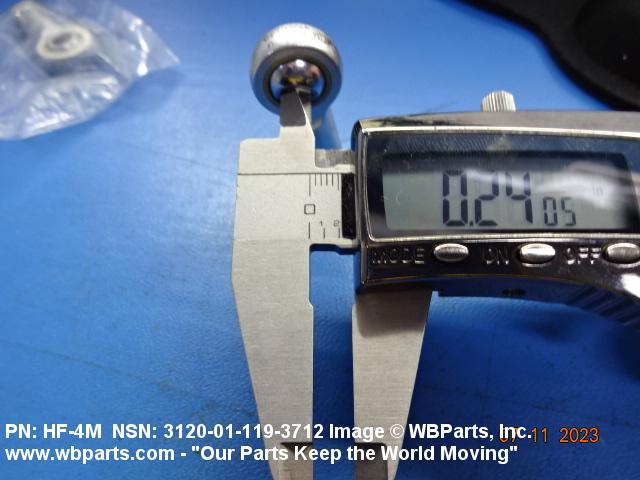

| INNER MEMBER WIDTH | 0.3700 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 2704 POUNDS |
| SHANK STYLE | 5 INTERNALLY THREADED W/BEAD AND WRENCH FLATS AND INSPECTION HOLE |
| SHANK THREAD LENGTH | 0.7500 INCHES NOMINAL |
| INSPECTION HOLE CENTER TO END DISTANCE | 0.3070 INCHES MINIMUM AND 0.3170 INCHES MAXIMUM |

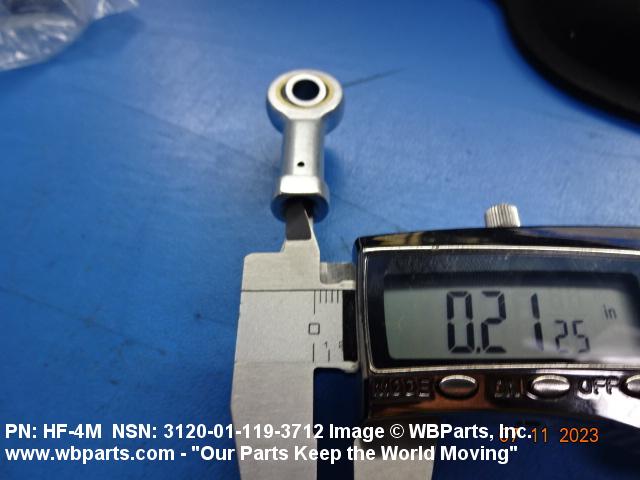

| SHANK WIDTH ACROSS WRENCH FLATS | 0.1770 INCHES MINIMUM AND 0.1970 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNF |
| THREAD DIAMETER | 0.250 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| FEATURES PROVIDED | EXTERNAL LUBRICATION FITTING AND SCREW PLUG CLOSURE FITTING |
| SPECIAL FEATURES | MAGNETIC INSPECTED ROD END BODY |
