NSN 3120-01-140-9939 MS21242S08L, MS21242S8, MS21242S-8

Product Details | ROD END PLAIN BEARING

3120-01-140-9939 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.

Part Alternates: MS21242S08L, MS21242S8, MS21242S-8, M81935/1-08L, M81935/1-8L, M81935108L, M8193518L, AS81935, AS81935/1, AS819351, MIL-B-81935/1, MILB819351, 3120-01-140-9939, 01-140-9939, 3120011409939, 011409939

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	21 OCT 1982	01-140-9939	13209 ( BEARING, PLAIN, ROD END )

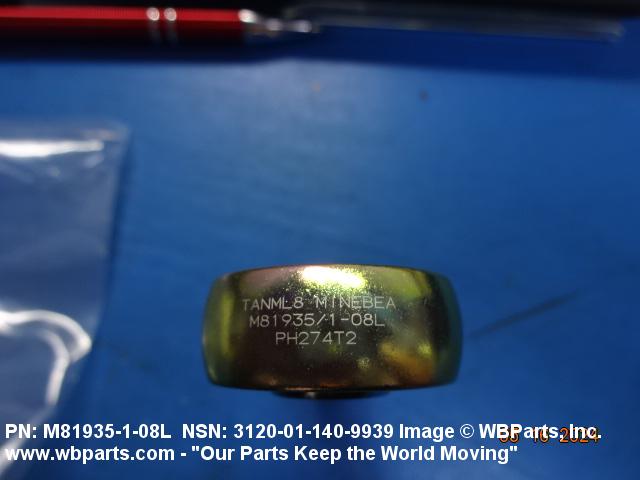

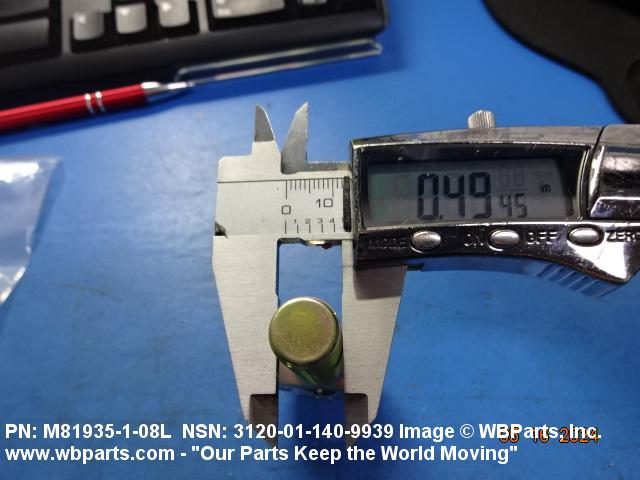

Drawings & Photos | NSN 3120-01-140-9939

Part Number	Request Date	QTY	Origin
3120-01-140-9939	2025-06-162	94	DIBBS
3120-01-140-9939	2025-06-154	94	DIBBS
3120-01-140-9939	2025-03-71	65	DIBBS
M81935108L	2024-08-227	3	United States
3120-01-140-9939	2024-06-176	65	DIBBS
3120-01-140-9939	2024-06-168	65	DIBBS
3120-01-140-9939	2024-05-130	2	United States
3120-01-140-9939	2023-09-256	4	South Africa
3120-01-140-9939	2023-09-256	6	South Africa
3120-01-140-9939	2023-07-199	6	South Africa
M8193518L	2023-03-73	18	South Africa
M8193518L	2023-03-68	7	us
3120-01-140-9939	2023-03-68	6	UK
M8193518L	2022-10-278	7	South Africa
3120-01-140-9939	2022-09-270	12	DIBBS
3120-01-140-9939	2022-08-234	12	DIBBS
3120-01-140-9939	2022-03-87	30	DIBBS
3120-01-140-9939	2022-03-79	30	DIBBS
3120-01-140-9939	2021-03-83	21	DIBBS
M81935108L	2020-05-135	2	Canada
3120-01-140-9939	2020-04-118	25	Canada
3120-01-140-9939	2019-10-274	295	US
3120-01-140-9939	2019-05-128	113	DIBBS
3120-01-140-9939	2015-06-161	241	DIBBS
3120-01-140-9939	2014-11-324	117	DIBBS
M81935108L	2014-03-76	24	KR
M81935108L	2013-04-113	200	United States
M81935/1-8L	2013-02-46	35	United States
3120-01-140-9939	2012-04-117	100	United States
3120-01-140-9939	2012-02-33	309	DIBBS
3120-01-140-9939	2011-10-298	78	DIBBS
3120-01-140-9939	2010-11-305	132	DIBBS
3120-01-140-9939	2010-05-146	68	DIBBS
3120-01-140-9939	2008-06-168	72	DIBBS
M8193518L	2008-04-107	29	United States
AS81935	2008-02-42	4	US
3120-01-140-9939	2007-01-29	157	DIBBS

Cross Reference | NSN 3120-01-140-9939

Part Number	Cage Code	Manufacturer
AS81935	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS81935/1	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M81935/1-08L	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M81935/1-08L	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M81935/1-8L	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-B-81935/1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS21242S-8	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21242S08L	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-01-140-9939

Compare

Related Products | NSN 3120-01-140-9939

3120-01-140-9940, 3120-01-140-9941, 3120-01-141-0381, 3120-01-141-0522, 3120-01-141-0885

Technical Data | NSN 3120-01-140-9939

Characteristic	Specifications
MATERIAL	STEEL COMP 440C INNER MEMBER STEEL COMP 630 RACE INSERT PLASTIC POLYTETRAFLUOROETHYLENE AND PLASTIC POLYAMIDE AND PLASTIC PHENOLIC RACE LINER STEEL COMP E4340 ROD END BODY
MATERIAL DOCUMENT AND CLASSIFICATION	AMS5630 ASSN STD SINGLE MATERIAL RESPONSE INNER MEMBER AMS5643 ASSN STD SINGLE MATERIAL RESPONSE RACE INSERT MIL-B-81820 MIL SPEC ALL MATERIAL RESPONSES RACE LINER MIL-S-5000 MIL SPEC SINGLE MATERIAL RESPONSE ROD END BODY
HARDNESS RATING	55.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER 28.0 ROCKWELL C MINIMUM AND 37.0 ROCKWELL C MAXIMUM RACE INSERT 39.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM ROD END BODY
SURFACE TREATMENT	CADMIUM AND CHROMATE ROD END BODY
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE ROD END BODY
STYLE DESIGNATOR	6 BALL TYPE

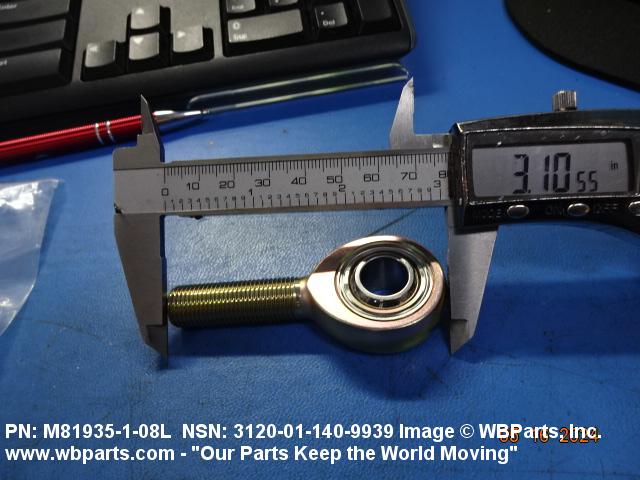

OVERALL LENGTH	3.1065 INCHES NOMINAL
BORE DIAMETER	0.4995 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM

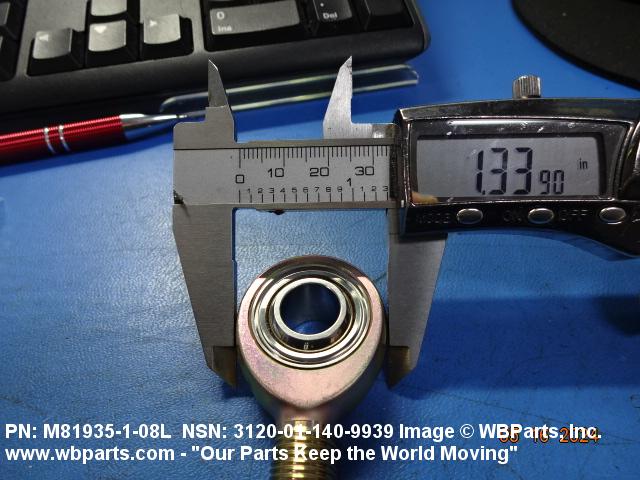

OUTER MEMBER OUTSIDE DIAMETER	1.3270 INCHES MINIMUM AND 1.3470 INCHES MAXIMUM

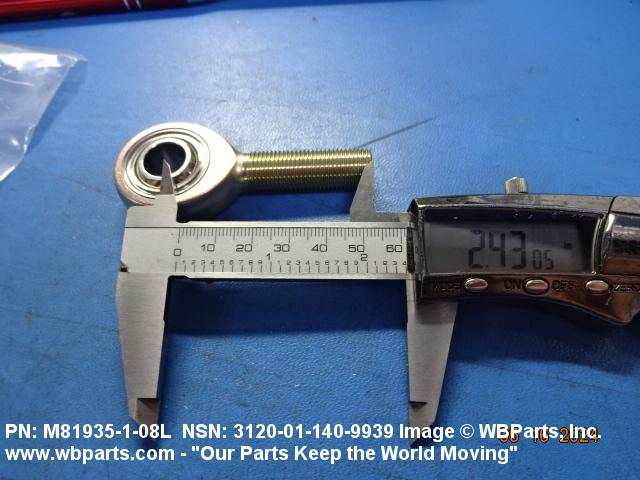

BORE CENTER TO SHANK END DISTANCE	2.4280 INCHES MINIMUM AND 2.4480 INCHES MAXIMUM

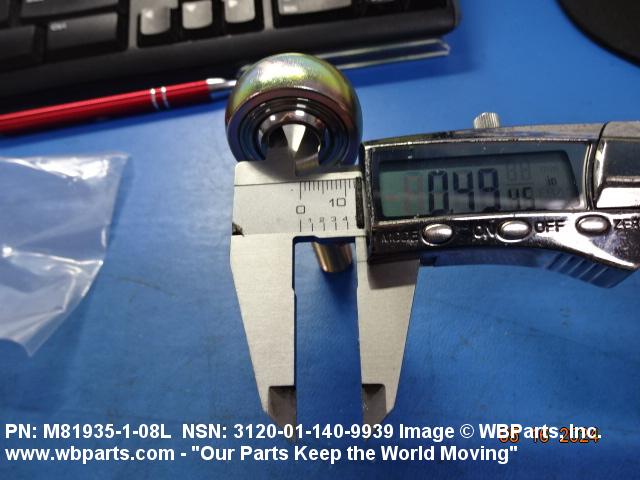

OUTER MEMBER WIDTH	0.5100 INCHES MINIMUM AND 0.5200 INCHES MAXIMUM
INNER MEMBER WIDTH	0.6230 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM
STATIC RADIAL LOAD RATING	19500 POUNDS

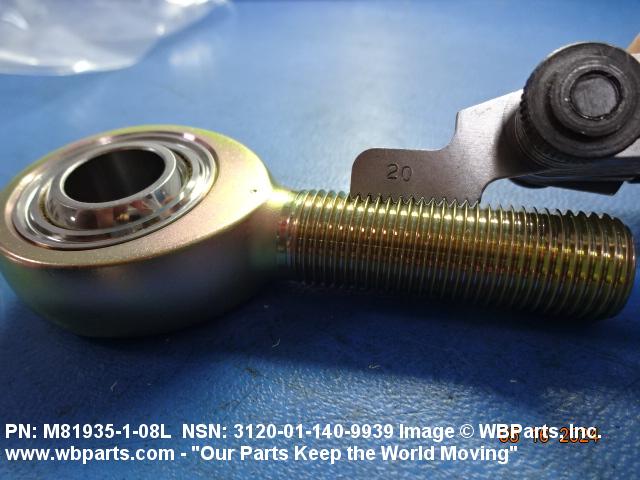

SHANK STYLE	1 EXTERNALLY THREADED

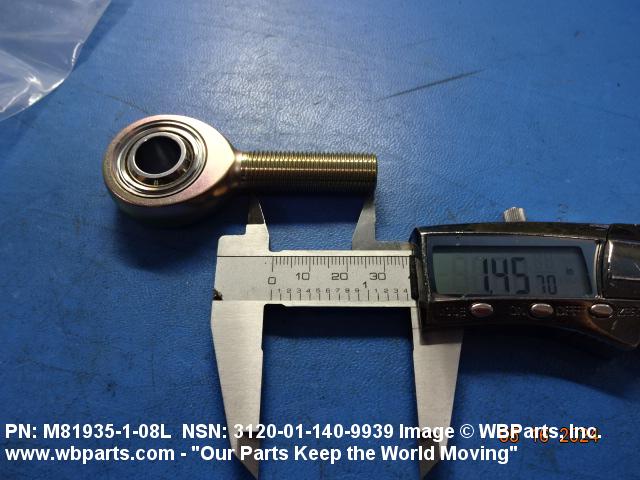

SHANK THREAD LENGTH	1.4370 INCHES MINIMUM AND 1.4990 INCHES MAXIMUM
