NSN 3120-01-145-8982 12283315, 01-145-8982, 011458982
Product Details | ROD END PLAIN BEARING
3120-01-145-8982 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: 12283315, 3120-01-145-8982, 01-145-8982, 3120011458982, 011458982
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 21 JAN 1983 | 01-145-8982 | 13209 ( BEARING, PLAIN, ROD END ) |

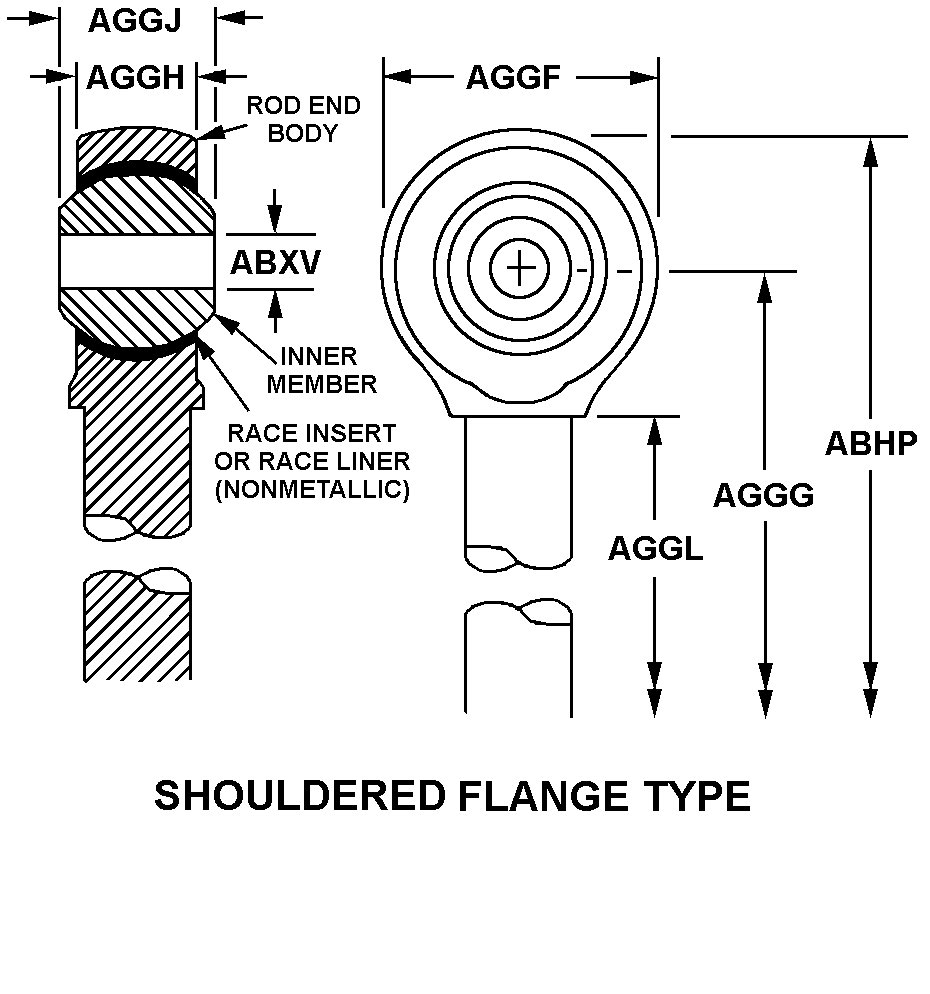

Drawings & Photos | NSN 3120-01-145-8982
Demand History | NSN 3120-01-145-8982
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-145-8982 | 2016-08-235 | 1 | United States |
Cross Reference | NSN 3120-01-145-8982
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12283315 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-145-8982
Related Products | NSN 3120-01-145-8982
Technical Data | NSN 3120-01-145-8982
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 6150 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-8503 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 38.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM OVERALL |
| STYLE DESIGNATOR | 2 SHOULDERED BALL TYPE |
| OVERALL LENGTH | 8.8800 INCHES NOMINAL |
| BORE DIAMETER | 2.1270 INCHES NOMINAL |
| OUTER MEMBER OUTSIDE DIAMETER | 4.0000 INCHES NOMINAL |
| BORE CENTER TO SHANK END DISTANCE | 6.8800 INCHES NOMINAL |
| OUTER MEMBER WIDTH | 1.2500 INCHES NOMINAL |
| INNER MEMBER WIDTH | 1.3200 INCHES NOMINAL |
| SHANK END TO SHOULDER LENGTH | 3.8800 INCHES NOMINAL |
| SHANK STYLE | 1 EXTERNALLY THREADED |
| SHANK THREAD LENGTH | 3.5200 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| THREAD DIAMETER | 1.250 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 12 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIAL FEATURES | CONTAINS SLOT 0.03 X 45.0 DEGREESCHAMFER BOTH SIDES,3.00 MIN LENGTH OFCHAMFER |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 12283315 |
Restrictions/Controls & Freight Information | NSN 3120-01-145-8982
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-145-8982
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | M | Ammunition weapons, and tracked combat vehicles weapons, special weapons, chemical and fire control materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | J | Tanks |
| Weapons Systems/End Item or Homogeneous Group | JE | Tank, M1 Abrams Family of Vehicles (FOV) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B14 | US Army Armament and Chemical Acquisition and Logistics Activity ATTN: AMSTA-AC Rock Island, IL 61299-6000 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | F | If condemned or uneconomically repairable, then dispose at Direct Support (DS) level. |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Echelon Management Code | 6 | ICP/DSSCs Weapon system-oriented consumable items assigned to another Service/Agency for integrated materiel management which are managed by the ICP on a complex basis and which have not been decontrolled by the Integrated Materiel Manager. |
| Source of Supply | MPB | Commanding General Marine Corps Logistics Command 566-2, Bldg. 3700 Albany, GA 31704-5000 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | F | Reparable item. When uneconomically reparable, condemn and dispose at the third echelon level. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
