Product Details | ROD END PLAIN BEARING
3120-01-160-2221 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: 65652-11104-043, 3120-01-160-2221, 01-160-2221, 3120011602221, 6565211104043, 011602221
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 19 AUG 1983 | 01-160-2221 | 13209 ( BEARING, PLAIN, ROD END ) |
Drawings & Photos | NSN 3120-01-160-2221
Demand History | NSN 3120-01-160-2221
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-160-2221 | 2018-10-290 | 5 | DIBBS |
| 3120-01-160-2221 | 2016-08-228 | 7 | DIBBS |
| 3120-01-160-2221 | 2016-08-215 | 7 | DIBBS |
| 3120-01-160-2221 | 2015-11-316 | 18 | DIBBS |
Cross Reference | NSN 3120-01-160-2221
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 65652-11104-043 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-160-2221
Related Products | NSN 3120-01-160-2221
Technical Data | NSN 3120-01-160-2221
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER STEEL COMP 410 OUTER RACE MEMBER FIBER AND PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER STEEL COMP 4130 ROD END BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5630 ASSN STD SINGLE MATERIAL RESPONSE INNER MEMBER AMS 5613 ASSN STD SINGLE MATERIAL RESPONSE OUTER RACE MEMBER MIL-S-6758,COND D MIL SPEC SINGLE MATERIAL RESPONSE ROD END BODY |
| HARDNESS RATING | 58.0 ROCKWELL C MINIMUM INNER MEMBER 28.0 ROCKWELL C MINIMUM OUTER RACE MEMBER 26.0 ROCKWELL C MINIMUM AND 33.0 ROCKWELL C MAXIMUM ROD END BODY |
| SURFACE TREATMENT | LACQUER ROD END BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-L-19538 MIL SPEC SINGLE TREATMENT RESPONSE ROD END BODY |
| STYLE DESIGNATOR | 6 BALL TYPE |
| OVERALL LENGTH | 2.6000 INCHES NOMINAL |
| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 1.0000 INCHES NOMINAL |
| BORE CENTER TO SHANK END DISTANCE | 2.1000 INCHES NOMINAL |
| OUTER MEMBER WIDTH | 0.3220 INCHES MINIMUM AND 0.3320 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.4350 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM |

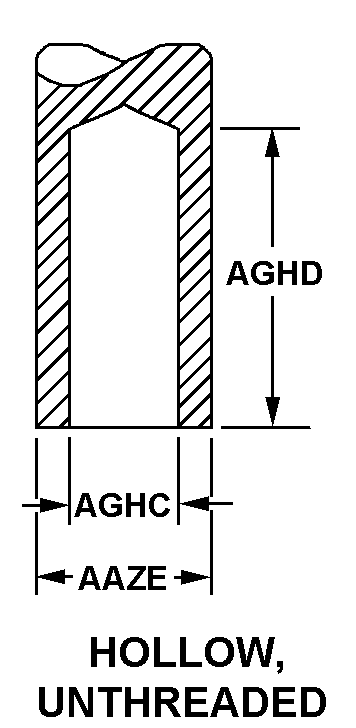

| SHANK STYLE | 8 HOLLOW, UNTHREADED |
