NSN 3120-01-165-5832 KB4ECRWD1, 01-165-5832, 011655832
Product Details | ROD END PLAIN BEARING
3120-01-165-5832 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: KB4ECRWD1, 3120-01-165-5832, 01-165-5832, 3120011655832, 011655832
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 31 OCT 1983 | 01-165-5832 | 13209 ( BEARING, PLAIN, ROD END ) |
Drawings & Photos | NSN 3120-01-165-5832
Cross Reference | NSN 3120-01-165-5832
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| KB4ECRWD1 | 97613 | DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-165-5832
Related Products | NSN 3120-01-165-5832
Technical Data | NSN 3120-01-165-5832
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER STEEL CORROSION RESISTING RACE INSERT STEEL CORROSION RESISTING ROD END BODY |
| STYLE DESIGNATOR | 6 BALL TYPE |
| OVERALL LENGTH | 1.9525 INCHES NOMINAL |
| BORE DIAMETER | 0.2450 INCHES MINIMUM AND 0.2650 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 0.7710 INCHES MINIMUM AND 0.7910 INCHES MAXIMUM |
| BORE CENTER TO SHANK END DISTANCE | 1.5520 INCHES MINIMUM AND 1.5720 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.3370 INCHES MINIMUM AND 0.3470 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.4320 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM |
| LUBRICATION MATERIAL | LUBRICANT, DRY FILM |
| STATIC RADIAL LOAD RATING | 4200 POUNDS |

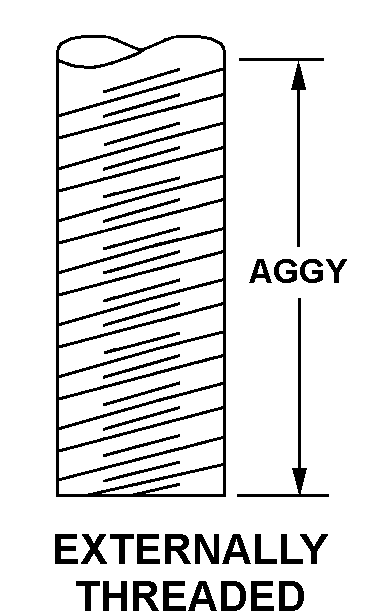

| SHANK STYLE | 1 EXTERNALLY THREADED |
| SHANK THREAD LENGTH | 1.0000 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| THREAD DIAMETER | 0.3125 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIAL FEATURES | LOCK WASHER SLOT IN SHANK |
| MANUFACTURERS CODE | 97613 |
| DESIGN CONTROL REFERENCE | KB4ECRWD1 |
