Product Details | ROD END PLAIN BEARING
3120-01-167-7771 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: L5341058001, L5341058-001, 3120-01-167-7771, 01-167-7771, 3120011677771, 011677771
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 06 DEC 1983 | 01-167-7771 | 13209 ( BEARING, PLAIN, ROD END ) |
Drawings & Photos | NSN 3120-01-167-7771
Cross Reference | NSN 3120-01-167-7771
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| L5341058-001 | 43999 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-167-7771
Related Products | NSN 3120-01-167-7771
Technical Data | NSN 3120-01-167-7771
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER STEEL COMP 630 RACE INSERT PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER STEEL CORROSION RESISTING ROD END BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5630 ASSN STD SINGLE MATERIAL RESPONSE INNER MEMBER AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE RACE INSERT |
| HARDNESS RATING | 55.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER |
| STYLE DESIGNATOR | 6 BALL TYPE |
| OVERALL LENGTH | 2.3240 INCHES NOMINAL |
| BORE DIAMETER | 0.3745 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 1.0240 INCHES NOMINAL |
| BORE CENTER TO SHANK END DISTANCE | 1.8120 INCHES NOMINAL |
| OUTER MEMBER WIDTH | 0.4320 INCHES MINIMUM AND 0.4420 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.4980 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 13700 POUNDS |

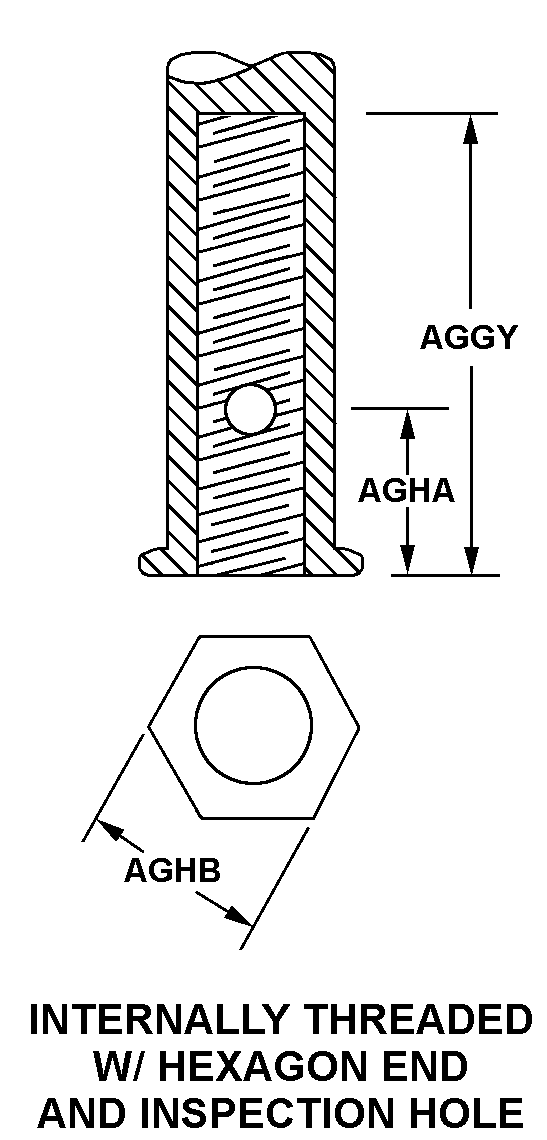

| SHANK STYLE | 7 INTERNALLY THREADED W/HEXAGON END AND INSPECTION HOLE |
| SHANK THREAD LENGTH | 1.0000 INCHES NOMINAL |
| INSPECTION HOLE CENTER TO END DISTANCE | 0.4370 INCHES NOMINAL |
| SHANK WIDTH ACROSS WRENCH FLATS | 0.5620 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJF |
| THREAD DIAMETER | 0.3750 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIAL FEATURES | 4SLOTS IN BOTTOM OF HEX END 0.093 IN. W,0.056 DEEP EQ SP |
| MANUFACTURERS CODE | 43999 |
| DESIGN CONTROL REFERENCE | L5341058-001 |
