NSN 3120-01-179-7914 1141205E006, 11-412-05E-006, 9507M20P04
Product Details | ROD END PLAIN BEARING
3120-01-179-7914 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: 1141205E006, 11-412-05E-006, 9507M20P04, 3120-01-179-7914, 01-179-7914, 3120011797914, 011797914
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 21 MAY 1984 | 01-179-7914 | 13209 ( BEARING, PLAIN, ROD END ) |

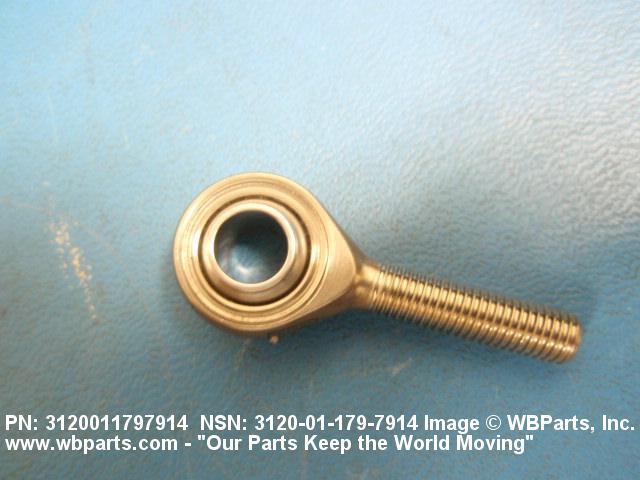

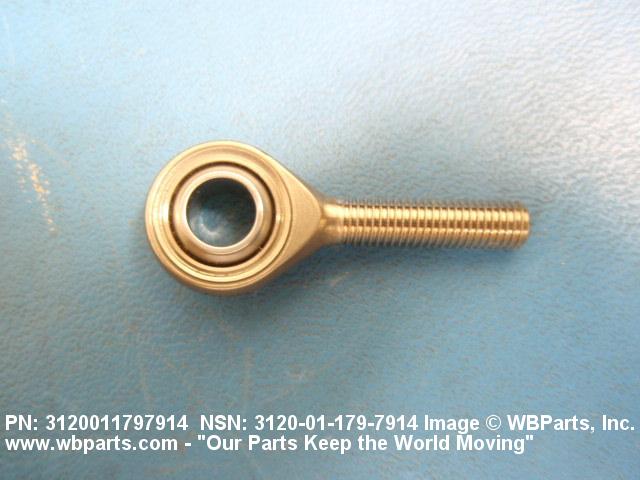

Drawings & Photos | NSN 3120-01-179-7914
Demand History | NSN 3120-01-179-7914
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-179-7914 | 2018-10-289 | 1 | DIBBS-RFPs |
| 3120-01-179-7914 | 2013-12-342 | 38 | DIBBS |
| 3120-01-179-7914 | 2013-11-326 | 127 | DIBBS |
| 3120-01-179-7914 | 2013-11-318 | 127 | DIBBS |
| 3120-01-179-7914 | 2013-11-317 | 1 | DIBBS-RFPs |
| 3120-01-179-7914 | 2011-09-258 | 725 | DIBBS |
| 3120-01-179-7914 | 2011-08-221 | 0 | DIBBS |
| 3120-01-179-7914 | 2011-07-199 | 0 | DIBBS |
| 3120-01-179-7914 | 2011-06-154 | 325 | DIBBS |
| 3120-01-179-7914 | 2011-04-115 | 454 | DIBBS |
| 3120-01-179-7914 | 2011-04-97 | 470 | US |
| 3120-01-179-7914 | 2011-04-91 | 468 | DIBBS |
| 3120-01-179-7914 | 2010-04-119 | 149 | United States |
| 3120-01-179-7914 | 2010-03-64 | 149 | DIBBS |
| 3120-01-179-7914 | 2009-11-313 | 69 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-179-7914
Related Products | NSN 3120-01-179-7914
Technical Data | NSN 3120-01-179-7914
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER STEEL COMP 630 ROD END BODY |
| HARDNESS RATING | 56.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER 35.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM ROD END BODY |
| STYLE DESIGNATOR | 6 BALL TYPE |
| OVERALL LENGTH | 1.8375 INCHES NOMINAL |
| BORE DIAMETER | 0.3120 INCHES MINIMUM AND 0.3125 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 0.7550 INCHES NOMINAL |
| BORE CENTER TO SHANK END DISTANCE | 1.4600 INCHES NOMINAL |
| OUTER MEMBER WIDTH | 0.2760 INCHES MINIMUM AND 0.2860 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.4660 INCHES MINIMUM AND 0.4690 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 3600 POUNDS |
| SHANK STYLE | 1 EXTERNALLY THREADED |
| SHANK THREAD LENGTH | 0.8400 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJF |
| THREAD DIAMETER | 0.2500 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | LEFT-HAND |
| MANUFACTURERS CODE | 07482 |
| MFR SOURCE CONTROLLING REFERENCE | 9507M20P04 |
Restrictions/Controls & Freight Information | NSN 3120-01-179-7914
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-179-7914
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | JF | SX:F-101 ENGINE |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
