Product Details | ROD END PLAIN BEARING
3120-01-193-6995 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: ADN8305, ADN8-305, 3120-01-193-6995, 01-193-6995, 3120011936995, 011936995
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 07 NOV 1984 | 01-193-6995 | 13209 ( BEARING, PLAIN, ROD END ) |
Drawings & Photos | NSN 3120-01-193-6995
Cross Reference | NSN 3120-01-193-6995
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ADN8-305 | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-193-6995
Related Products | NSN 3120-01-193-6995
Technical Data | NSN 3120-01-193-6995
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP XM-13 INNER MEMBER STEEL COMP 630 RACE INSERT PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER STEEL COMP 630 ROD END BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | DURALINER,FSCM 15860 MFR REF SINGLE MATERIAL RESPONSE RACE LINER |
| HARDNESS RATING | 45.0 ROCKWELL C MINIMUM INNER MEMBER 28.0 ROCKWELL C MINIMUM AND 37.0 ROCKWELL C MAXIMUM RACE INSERT 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM ROD END BODY |
| SURFACE TREATMENT | PASSIVATE INNER MEMBER PASSIVATE ROD END BODY |
| STYLE DESIGNATOR | 6 BALL TYPE |
| OVERALL LENGTH | 2.9185 INCHES NOMINAL |
| BORE DIAMETER | 0.4995 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 1.3270 INCHES MINIMUM AND 1.3470 INCHES MAXIMUM |
| BORE CENTER TO SHANK END DISTANCE | 2.2400 INCHES MINIMUM AND 2.2600 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.5100 INCHES MINIMUM AND 0.5200 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.6230 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 19500 POUNDS |

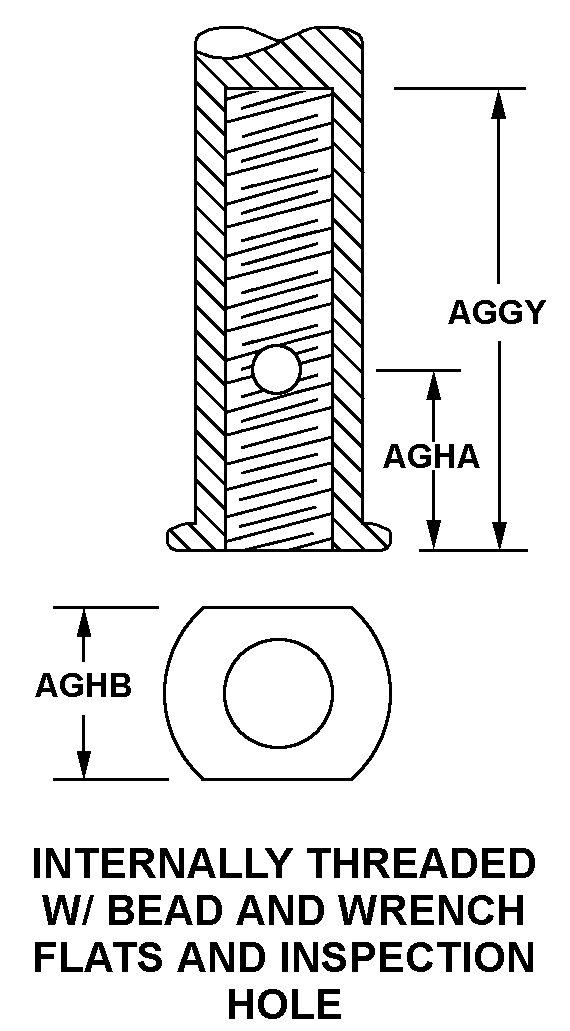

| SHANK STYLE | 5 INTERNALLY THREADED W/BEAD AND WRENCH FLATS AND INSPECTION HOLE |
| SHANK THREAD LENGTH | 1.2500 INCHES NOMINAL |
| INSPECTION HOLE CENTER TO END DISTANCE | 0.5620 INCHES NOMINAL |
| SHANK WIDTH ACROSS WRENCH FLATS | 0.7500 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| THREAD DIAMETER | 0.500 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIAL FEATURES | FURNISHED W/ 2 SEALS COMPOSED OF STAINLESS STEEL AND SILICONE RUBBER |
