NSN 3120-01-230-7186 M81935/1-12K, M81935112K, AS81935
Product Details | ROD END PLAIN BEARING

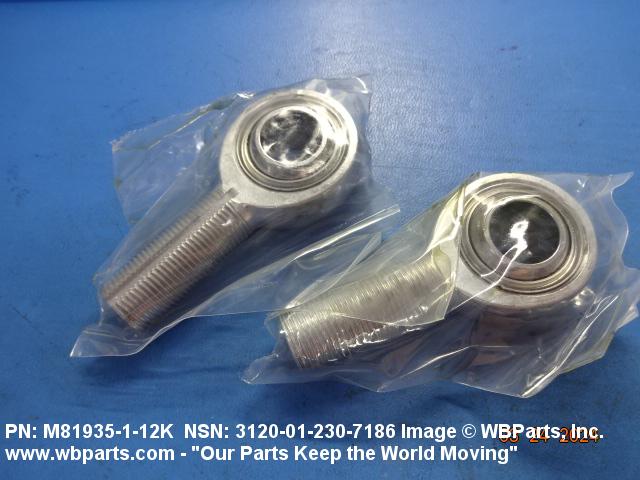

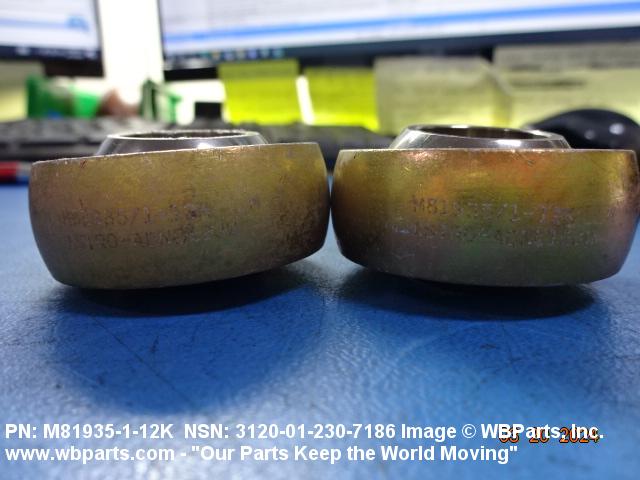

3120-01-230-7186 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.

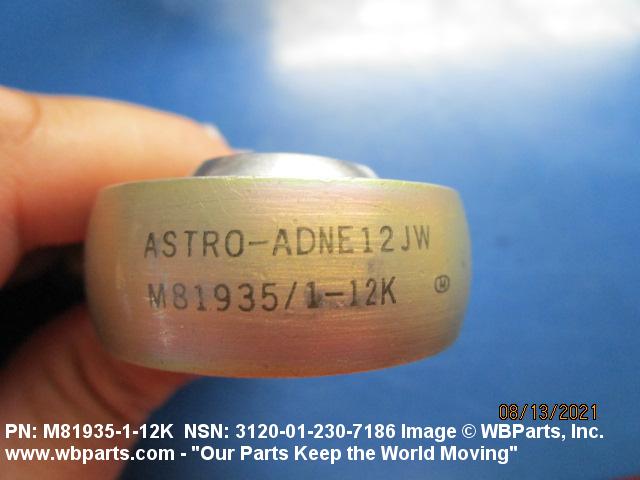

Part Alternates: M81935/1-12K, M81935112K, AS81935, AS81935/1, AS819351, MIL-B-81935/1, MILB819351, 3120-01-230-7186, 01-230-7186, 3120012307186, 012307186
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 17 APR 1986 | 01-230-7186 | 13209 ( BEARING, PLAIN, ROD END ) |

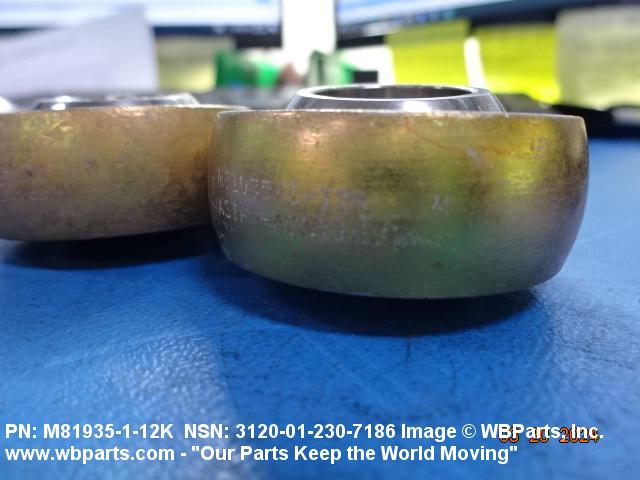

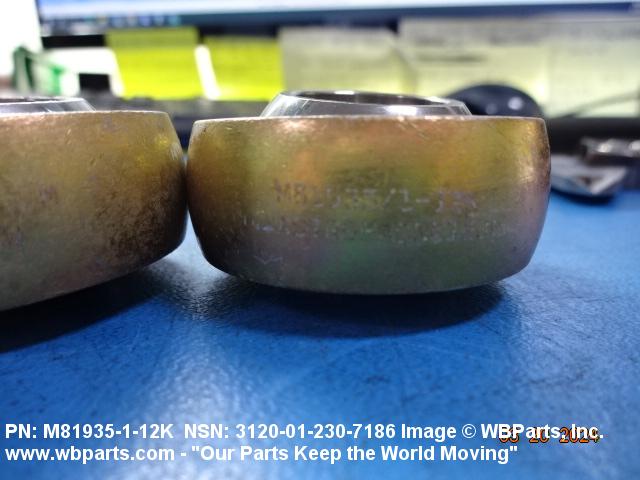

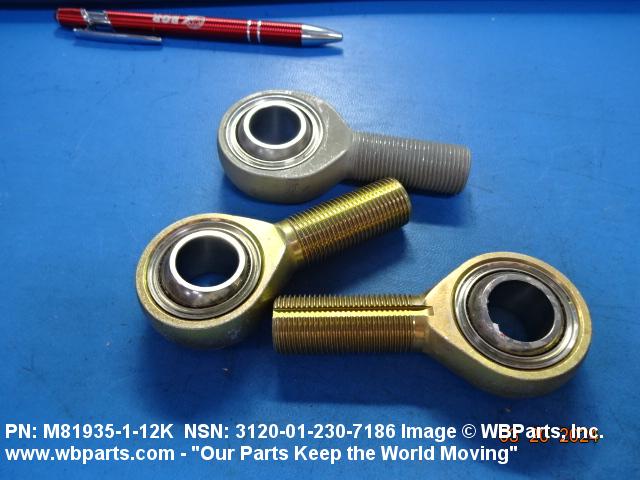

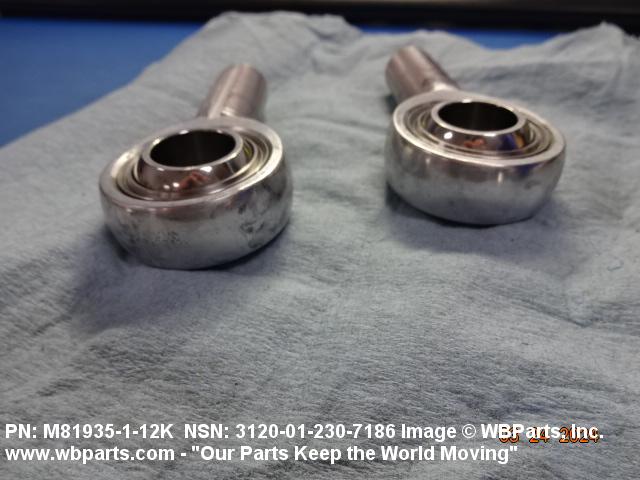

Drawings & Photos | NSN 3120-01-230-7186
Demand History | NSN 3120-01-230-7186
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-230-7186 | 2025-10-292 | 10 | DIBBS |
| 3120-01-230-7186 | 2025-03-90 | 45 | DIBBS |
| 3120-01-230-7186 | 2025-03-82 | 45 | DIBBS |
| 3120-01-230-7186 | 2024-10-305 | 7 | DIBBS |
| 3120-01-230-7186 | 2024-08-231 | 7 | DIBBS |
| M81935112K | 2024-02-44 | 5 | Czech Republic |
| 3120-01-230-7186 | 2022-08-216 | 52 | DIBBS |
| 3120-01-230-7186 | 2022-07-200 | 52 | DIBBS |
| M81935112K | 2022-03-68 | 14 | Czech Republic |
| 3120-01-230-7186 | 2021-12-341 | 7 | DIBBS |
| 3120-01-230-7186 | 2021-11-321 | 10 | DIBBS |
| 3120-01-230-7186 | 2021-08-235 | 6 | DIBBS |
| M81935112K | 2021-07-196 | 20 | Czech Republic |
| 3120-01-230-7186 | 2021-02-53 | 12 | DIBBS |
| 3120-01-230-7186 | 2020-10-281 | 27 | DIBBS |
| 3120-01-230-7186 | 2020-05-127 | 62 | DIBBS |
| 3120-01-230-7186 | 2019-05-128 | 40 | DIBBS |
| 3120-01-230-7186 | 2014-04-105 | 53 | DIBBS |
| 3120-01-230-7186 | 2013-03-84 | 78 | DIBBS |
| M81935112K | 2012-10-284 | 10 | US |
| M81935112K | 2012-02-37 | 10 | United States |
| 3120-01-230-7186 | 2008-05-142 | 1 | ZA |
| 3120-01-230-7186 | 2008-02-58 | 88 | DIBBS |
| AS81935 | 2008-02-42 | 4 | US |
| 3120-01-230-7186 | 2007-07-200 | 48 | DIBBS |
| 3120-01-230-7186 | 2007-07-192 | 1 | DIBBS |
| 3120-01-230-7186 | 2007-06-157 | 37 | DIBBS |
| 3120-01-230-7186 | 2007-03-78 | 15 | DIBBS |
| M81935112K | 2006-03-89 | 15 | us |
Cross Reference | NSN 3120-01-230-7186
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS81935 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS81935/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M81935/1-12K | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M81935/1-12K | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-B-81935/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-230-7186
Related Products | NSN 3120-01-230-7186
Technical Data | NSN 3120-01-230-7186
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER STEEL COMP 630 RACE INSERT PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER STEEL COMP E4340 ROD END BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5630 ASSN STD SINGLE MATERIAL RESPONSE INNER MEMBER AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE RACE INSERT MIL-S-5000 MIL SPEC SINGLE MATERIAL RESPONSE ROD END BODY |
| HARDNESS RATING | 55.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER 28.0 ROCKWELL C MINIMUM AND 37.0 ROCKWELL C MAXIMUM RACE INSERT 39.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM ROD END BODY |
| SURFACE TREATMENT | CADMIUM AND CHROMATE ROD END BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,CL 2 FED SPEC SINGLE TREATMENT RESPONSE ROD END BODY |
| STYLE DESIGNATOR | 6 BALL TYPE |

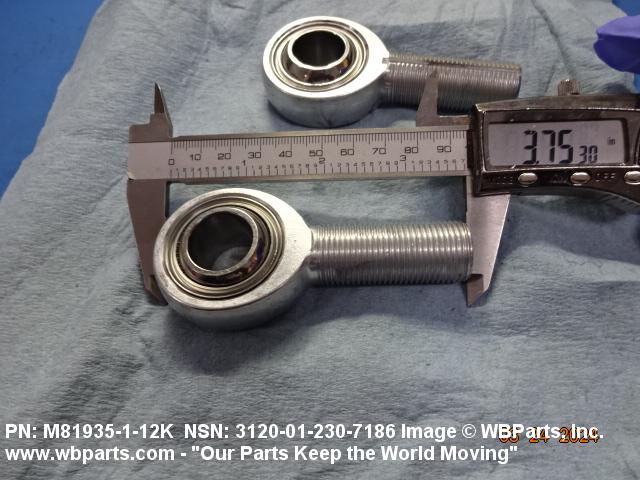

| OVERALL LENGTH | 3.7625 INCHES NOMINAL |

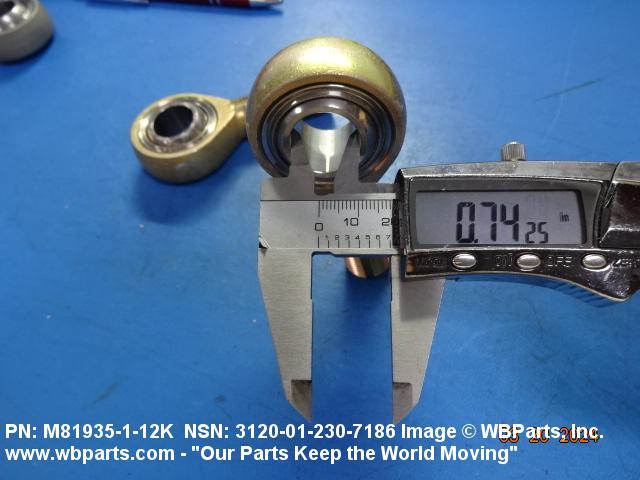

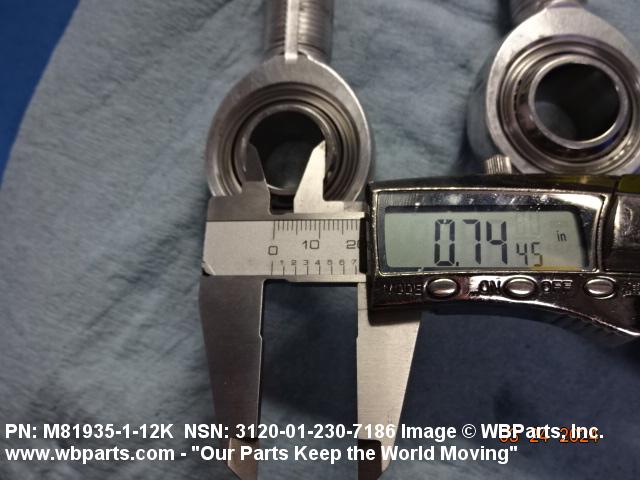

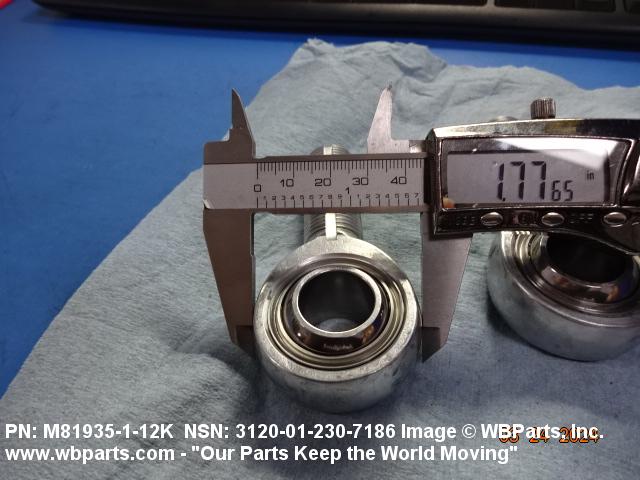

| BORE DIAMETER | 0.7495 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 1.7650 INCHES MINIMUM AND 1.7850 INCHES MAXIMUM |
| BORE CENTER TO SHANK END DISTANCE | 2.8650 INCHES MINIMUM AND 2.8850 INCHES MAXIMUM |

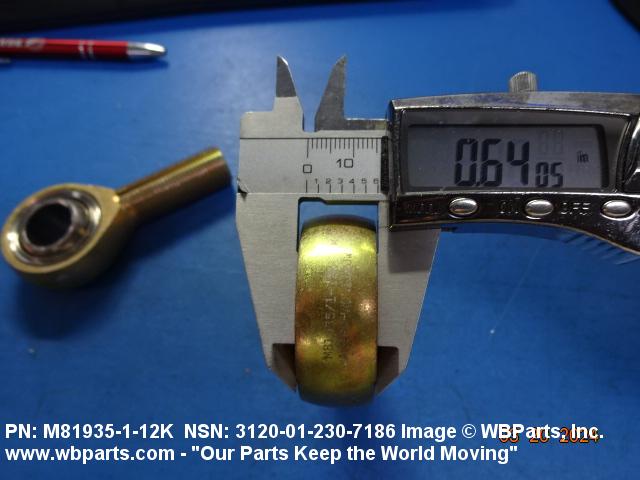

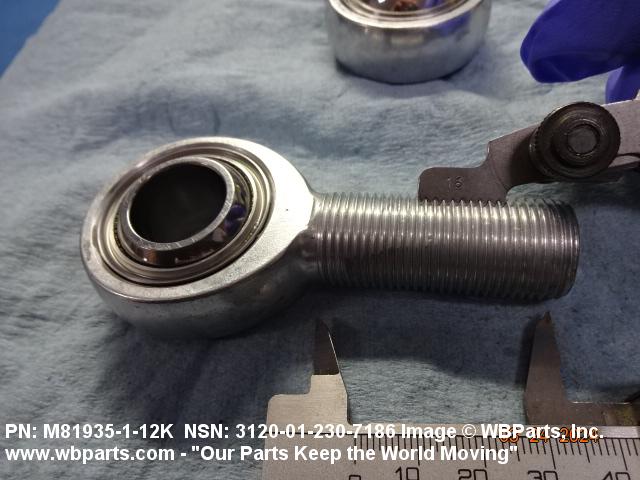

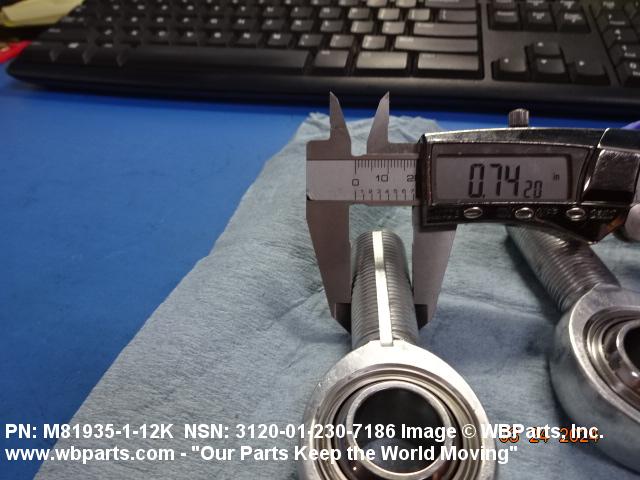

| OUTER MEMBER WIDTH | 0.6350 INCHES MINIMUM AND 0.6450 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.8730 INCHES MINIMUM AND 0.8750 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 29300 POUNDS |
| SHANK STYLE | 1 EXTERNALLY THREADED |

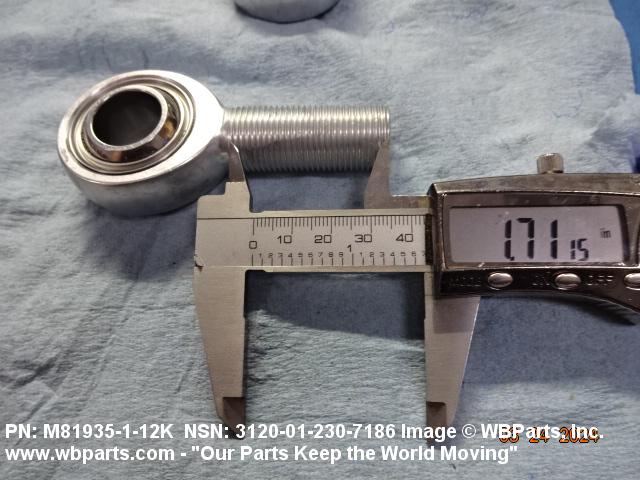

| SHANK THREAD LENGTH | 1.6560 INCHES MINIMUM AND 1.7180 INCHES MAXIMUM |
