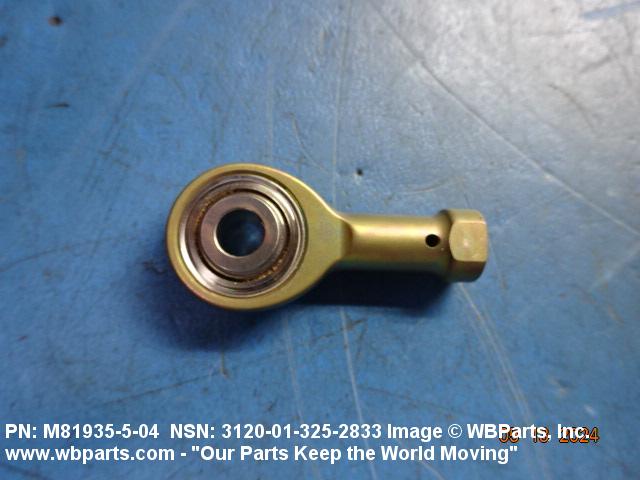

Product Details | ROD END PLAIN BEARING
3120-01-325-2833 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: M81935/5-4, M8193554, AS81935, MIL-B-81935/5, MILB819355, 3120-01-325-2833, 01-325-2833, 3120013252833, 013252833
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 31 AUG 1990 | 01-325-2833 | 13209 ( BEARING, PLAIN, ROD END ) |
Drawings & Photos | NSN 3120-01-325-2833
Demand History | NSN 3120-01-325-2833
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-325-2833 | 2024-01-29 | 8 | US |
| 3120-01-325-2833 | 2018-06-168 | 49 | DIBBS |
| 3120-01-325-2833 | 2018-03-79 | 13 | DIBBS |
| 3120-01-325-2833 | 2017-03-68 | 2 | DIBBS |
| 3120-01-325-2833 | 2017-02-47 | 20 | DIBBS |
| 3120-01-325-2833 | 2016-12-341 | 2 | DIBBS |
| 3120-01-325-2833 | 2016-10-305 | 3 | DIBBS |
| 3120-01-325-2833 | 2015-04-96 | 2 | DIBBS |
| M8193554 | 2013-03-80 | 5 | US |
| AS81935 | 2008-02-42 | 4 | US |
Cross Reference | NSN 3120-01-325-2833
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-325-2833
Related Products | NSN 3120-01-325-2833
Technical Data | NSN 3120-01-325-2833
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 39.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 6 BALL TYPE |

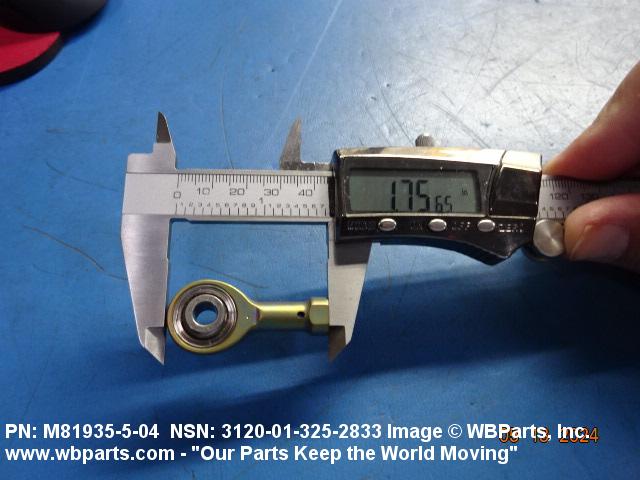

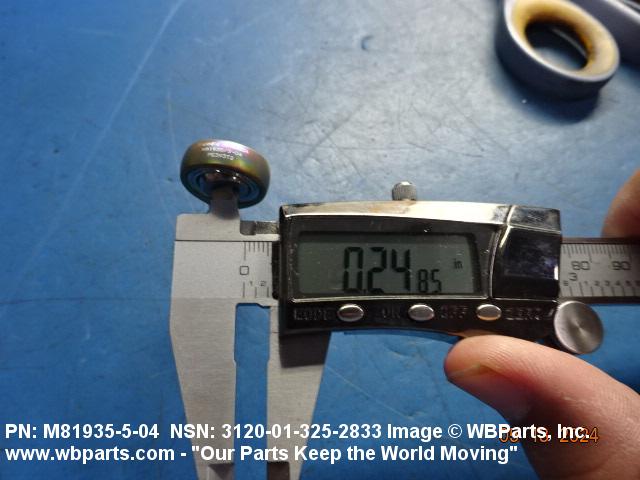

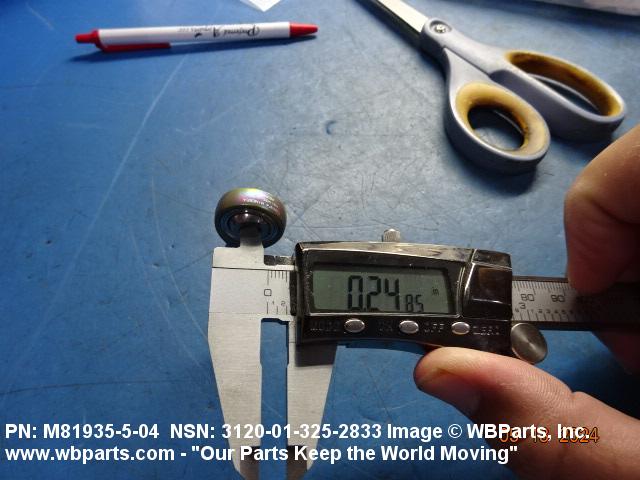

| OVERALL LENGTH | 1.7515 INCHES NOMINAL |
| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |

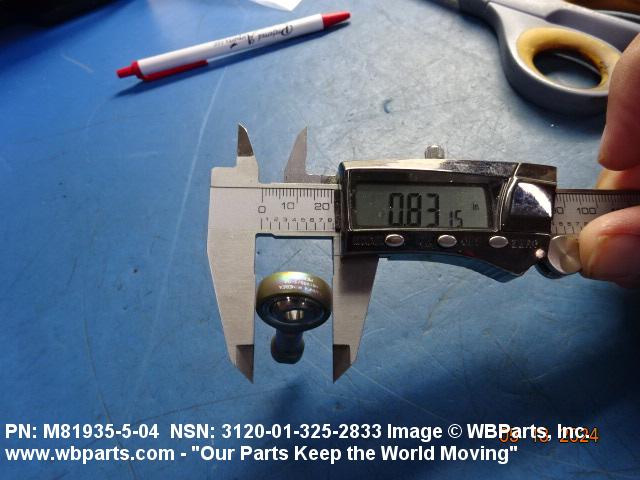

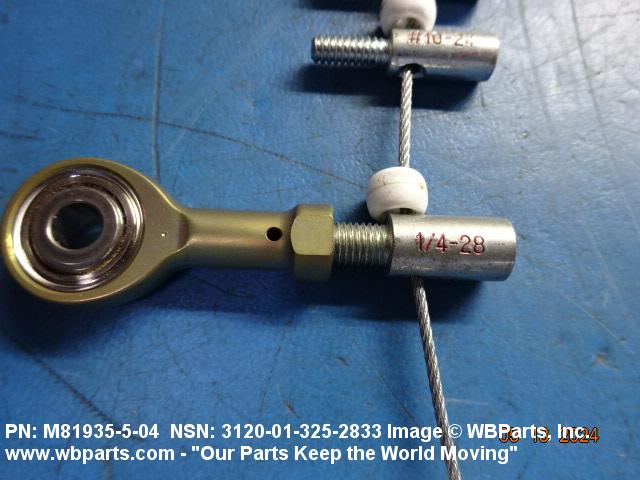

| OUTER MEMBER OUTSIDE DIAMETER | 0.8170 INCHES MINIMUM AND 0.8370 INCHES MAXIMUM |
| BORE CENTER TO SHANK END DISTANCE | 1.3280 INCHES MINIMUM AND 1.3480 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.2550 INCHES MINIMUM AND 0.2650 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.3410 INCHES MINIMUM AND 0.3430 INCHES MAXIMUM |
| SHANK STYLE | 7 INTERNALLY THREADED W/HEXAGON END AND INSPECTION HOLE |
| SHANK THREAD LENGTH | 0.7500 INCHES MAXIMUM |
| INSPECTION HOLE CENTER TO END DISTANCE | 0.2920 INCHES MINIMUM AND 0.3320 INCHES MAXIMUM |
| SHANK WIDTH ACROSS WRENCH FLATS | 0.4300 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJF |
| THREAD DIAMETER | 0.3125 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIFICATION/STANDARD DATA | 81349-MIL-B-81935/5 GOVERNMENT SPECIFICATION |
