NSN 4820-00-525-7837 7722211, 772221-1, 81580
Product Details | FLUID PRESSURE REGULATING VALVE
4820-00-525-7837 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 7722211, 772221-1, 81580, 81-580 , 8CGA580, 4820-00-525-7837, 00-525-7837, 4820005257837, 005257837
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 28 AUG 1974 | 00-525-7837 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
Drawings & Photos | NSN 4820-00-525-7837
Demand History | NSN 4820-00-525-7837
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-525-7837 | 2011-10-297 | 1 | DIBBS |
| 4820-00-525-7837 | 2011-07-199 | 1 | DIBBS |
Cross Reference | NSN 4820-00-525-7837
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-525-7837
Technical Data | NSN 4820-00-525-7837
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS,QQ-B-626 |
| FLOW CONTROL DEVICE | NEEDLE |
| FLOW CONTROL DEVICE MATERIAL | BRASS,QQ-B-626 |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | D6 PLAIN |
| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.250-18 NPTF |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL GAS CYLINDER |
| SECOND END STYLE DESIGNATOR | D11 SWIVEL NUT, FLARED |
| SECOND END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.960-14 NGO |
| SECOND END THREAD PITCH DIAMETERS | 0.9050 TO 0.9109 INCHES |
| SECOND END THREAD DIRECTION | RIGHT-HAND |

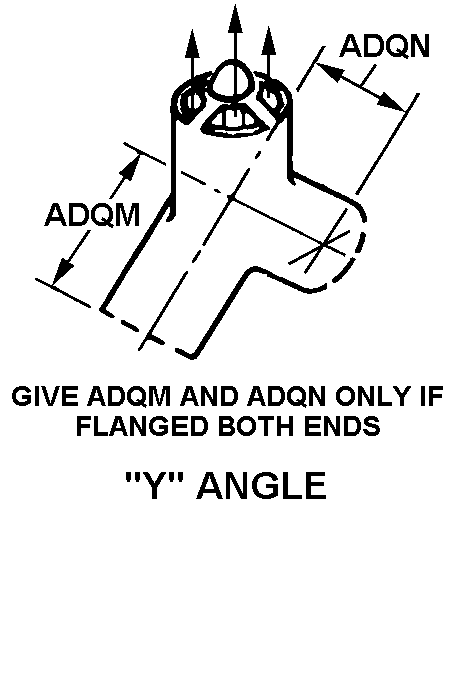

| BODY STYLE | A5 Y ANGLE |
| MEDIA FOR WHICH DESIGNED | ARGON AND NITROGEN, GASEOUS |
| REGULATION TYPE | AUTOMATIC DOUBLE STAGE |
| VALVE LOADING METHOD | SPRING |
| MAXIMUM INLET PRESSURE RATING | 3000.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE RANGE | 0.0 TO 100.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE ACCURACY RATING | NOT RATED |
| FILTER | INCLUDED |
| FURNISHED ITEMS | CYLINDER GAGE AND DELIVERY GAGE |
| (NON-CORE DATA) DIAL OUTSIDE DIAMETER | 2.835 INCHES |
| (NON-CORE DATA) SCALE UNIT OF MEASURE INSCRIPTION | POUNDS PER SQUARE INCH AND POUNDS PER SQUARE INCH |
| (NON-CORE DATA) DIAL RANGE | 0.0 TO 3000.0 AND 0.0 TO 100.0 |
Restrictions/Controls & Freight Information | NSN 4820-00-525-7837
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-525-7837
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
