NSN 5305-01-212-4553 BACB30NN3K6, 01-212-4553, 012124553
Product Details | CLOSE TOLERANCE SCREW
5305-01-212-4553 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: BACB30NN3K6, 5305-01-212-4553, 01-212-4553, 5305012124553, 012124553
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 JUL 1985 | 01-212-4553 | 29294 ( SCREW, CLOSE TOLERANCE ) |

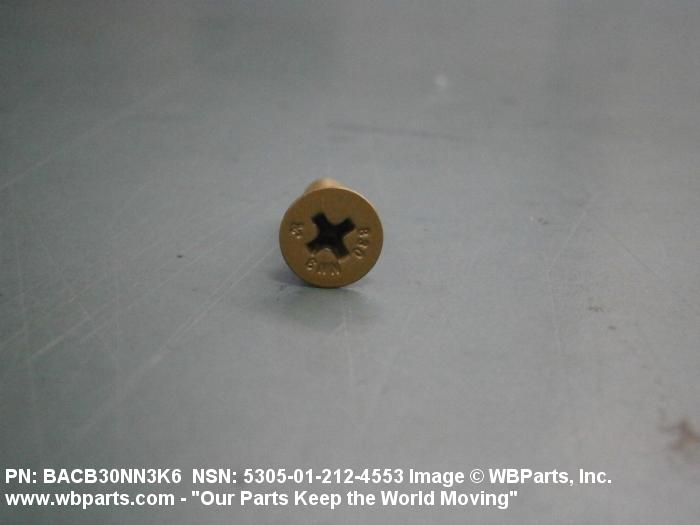

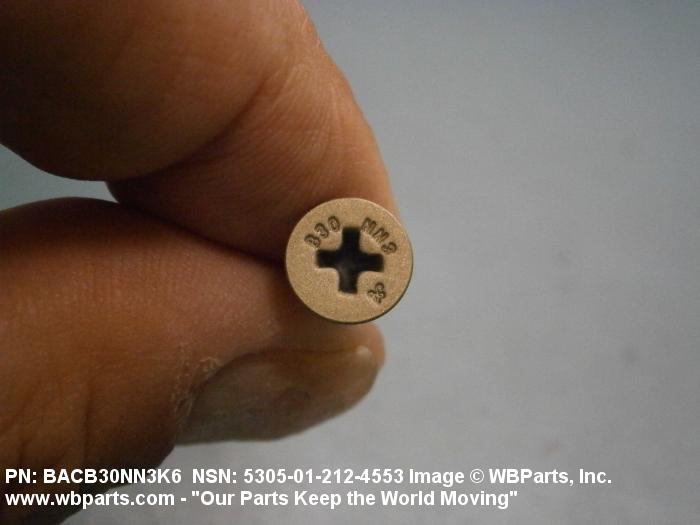

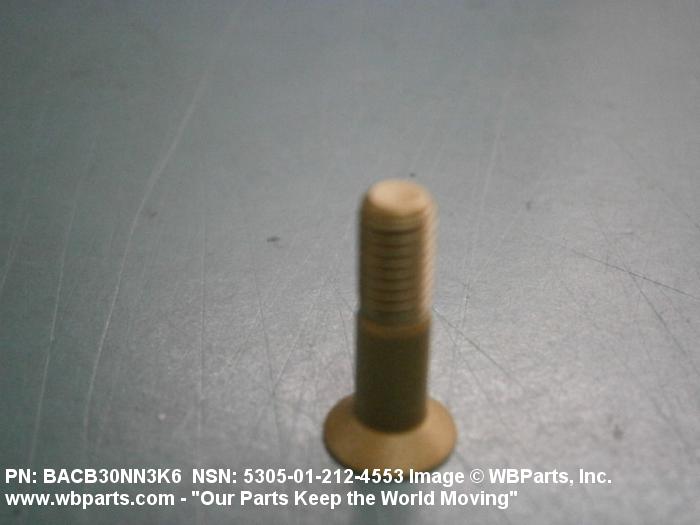

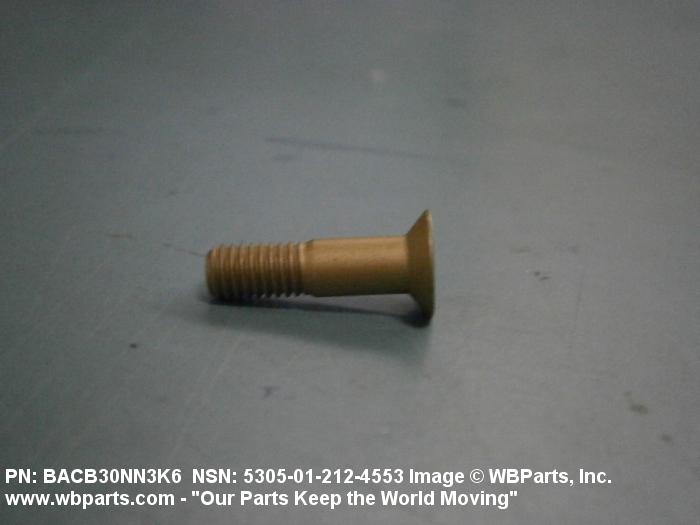

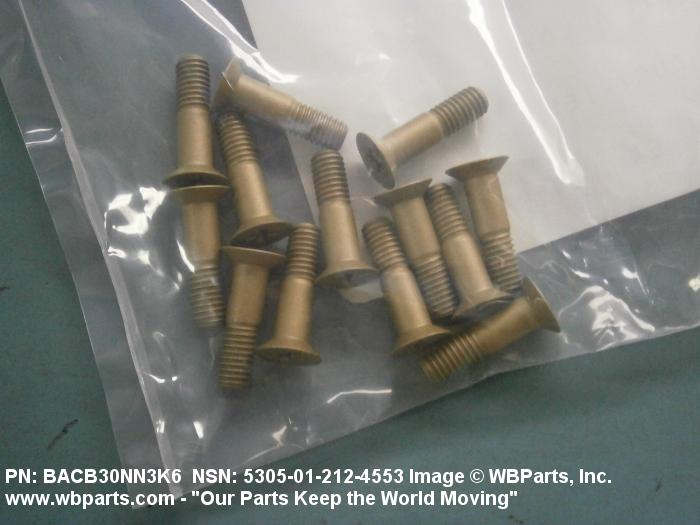

Drawings & Photos | NSN 5305-01-212-4553
Demand History | NSN 5305-01-212-4553
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACB30NN3K6 | 2025-10-292 | 1184 | DIBBS |
| BACB30NN3K6 | 2025-04-111 | 1305 | DIBBS |
| BACB30NN3K6 | 2025-01-16 | 603 | DIBBS |
| 5305-01-212-4553 | 2024-12-337 | 25 | US |
| 5305-01-212-4553 | 2024-11-317 | 120 | US |
| BACB30NN3K6 | 2024-10-291 | 288 | DIBBS |
| 5305-01-212-4553 | 2024-08-224 | 430 | US |
| BACB30NN3K6 | 2024-07-200 | 337 | DIBBS |
| BACB30NN3K6 | 2024-07-199 | 1877 | DIBBS |
| BACB30NN3K6 | 2024-07-184 | 1877 | DIBBS |
| BACB30NN3K6 | 2024-04-105 | 356 | DIBBS |
| BACB30NN3K6 | 2024-01-24 | 183 | DIBBS |
| 5305-01-212-4553 | 2022-08-241 | 6000 | US |
| BACB30NN3K6 | 2022-08-238 | 6000 | US |
| BACB30NN3K6 | 2018-11-318 | 1 | Australia |
| BACB30NN3K6 | 2018-10-284 | 200 | RO |
| 5305-01-212-4553 | 2018-07-205 | 2079 | DIBBS |
| BACB30NN3K6 | 2018-07-184 | 200 | US |
| 5305-01-212-4553 | 2018-05-144 | 1 | DIBBS-RFPs |
| 5305-01-212-4553 | 2017-05-144 | 1083 | DIBBS |
| BACB30NN3K6 | 2016-10-295 | 20 | United States |
| 5305-01-212-4553 | 2016-07-213 | 1005 | DIBBS |
| 5305-01-212-4553 | 2015-10-302 | 678 | DIBBS |
| 5305-01-212-4553 | 2014-06-167 | 603 | DIBBS |
| 5305-01-212-4553 | 2014-06-155 | 603 | DIBBS |
| 5305-01-212-4553 | 2014-02-43 | 178 | DIBBS |
| 5305-01-212-4553 | 2014-01-27 | 178 | DIBBS |
| BACB30NN3K6 | 2014-01-03 | 130 | US |
| BACB30NN3K6 | 2013-12-336 | 4 | US |
| BACB30NN3K6 | 2013-12-336 | 4 | US |
| 5305-01-212-4553 | 2009-09-248 | 250 | US |
Cross Reference | NSN 5305-01-212-4553
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACB30NN3K6 | 06710 | VALLEY-TODECO, INC. |
| BACB30NN3K6 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| BACB30NN3K6 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| BACB30NN3K6 | 0PTK6 | SPS TECHNOLOGIES INC |
| BACB30NN3K6 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| BACB30NN3K6 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| BACB30NN3K6 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| BACB30NN3K6 | 73197 | HI-SHEAR CORPORATION |
| BACB30NN3K6 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| BACB30NN3K6 | 81205 | THE BOEING COMPANY DBA BOEING |
| BACB30NN3K6 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| BACB30NN3K6 | 93907 | TEXTRON FASTENING SYSTEMS DBA DECORAH OPERATIONS TFS |
| BACB30NN3K6 | 97928 | HUCK INTL INC |
| BACB30NN3K6 | L4528 | LISI AEROSPACE CANADA CORP |
| BACB30NN3K6 | Z03F0 | BOEING DEFENCE AUSTRALIA LTD |
| BACB30NN3K6 | Z8T75 | BOEING DEFENCE AUSTRALIA LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-212-4553
Related Products | NSN 5305-01-212-4553
Technical Data | NSN 5305-01-212-4553
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | BMS 10-85,TY1,CL160TT3H MFR REF SINGLE TREATMENT RESPONSE OVERALL |
| SPECIAL FEATURES | BLACK DYE OR PAINT ONTHREAD END |
| HEAD STYLE | FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.345 INCHES MINIMUM AND 0.383 INCHES MAXIMUM |
| GRIP LENGTH | 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| MATERIAL | TITANIUM ALLOY OVERALL |
| THREAD QUANTITY PER INCH | 32 |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD LENGTH | 0.320 INCHES MINIMUM AND 0.370 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES THREADS |
| THREAD SERIES DESIGNATOR | UNJF |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4967 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 4928 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| INTERNAL DRIVE STYLE | CROSS RECESS TYPE 1 |
| GRIP DIAMETER | 0.1885 INCHES MINIMUM AND 0.1895 INCHES MAXIMUM |
| FASTENER LENGTH | 0.705 INCHES MINIMUM AND 0.735 INCHES MAXIMUM |
| SURFACE TREATMENT | ALUMINUM OVERALL |
| SURFACE FINISH | 63.0 MICROINCHES BEARING SURFACE OF HEAD |
| SURFACE FINISH | 32.0 MICROINCHES GRIP |
| THREAD CLASS | 3A |
Restrictions/Controls & Freight Information | NSN 5305-01-212-4553
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136500 | METAL NOI/METAL ALLOYS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-212-4553
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
