NSN 5310-00-840-1166 BACN10BL7L, BACN10B-L7L, H23-7

Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT

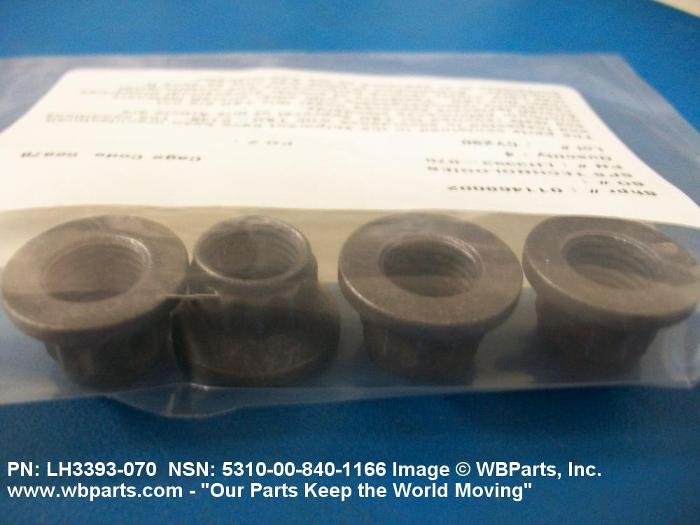

5310-00-840-1166 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: BACN10BL7L, BACN10B-L7L, H23-7, H295237, H29523-7, LH3393070, LH3393-070, VN406A070, VN406-A-070, FN22A720, FN22A-720, H237, 5310-00-840-1166, 00-840-1166, 5310008401166, 008401166

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-840-1166	29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON )

Drawings & Photos | NSN 5310-00-840-1166

Part Number	Request Date	QTY	Origin
5310-00-840-1166	2018-06-169	3502	DIBBS
5310-00-840-1166	2018-06-161	3502	DIBBS
5310-00-840-1166	2017-12-338	3752	DIBBS
5310-00-840-1166	2017-05-128	3527	DIBBS
5310-00-840-1166	2017-02-32	3056	DIBBS
5310-00-840-1166	2016-11-335	2016	DIBBS
5310-00-840-1166	2015-09-270	4240	DIBBS
5310-00-840-1166	2015-01-14	606	DIBBS
5310-00-840-1166	2014-02-41	333	DIBBS
5310-00-840-1166	2012-11-325	173	DIBBS
LH3393-070	2012-11-310	1058
LH3393070	2011-07-194	2	Italy
5310-00-840-1166	2011-01-28	900	Italy
LH3393070	2009-04-112	1000	IT
5310-00-840-1166	2009-04-105	233	DIBBS
LH3393070	2009-03-82	120	Italy
5310-00-840-1166	2008-11-316	130	DIBBS
5310-00-840-1166	2008-11-309	101	DIBBS
5310-00-840-1166	2008-10-302	175	DIBBS
LH3393070	2008-10-284	400	IT
5310-00-840-1166	2008-04-108	1225	DIBBS

Cross Reference | NSN 5310-00-840-1166

Part Number	Cage Code	Manufacturer
BACN10B-L7L	06329	ASC INTERNATIONAL, INC. DBA ASC INDUSTRIES
BACN10B-L7L	5M902	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
BACN10B-L7L	77272	THE BOEING COMPANY DBA BOEING
BACN10B-L7L	81205	THE BOEING COMPANY DBA BOEING
FN22A-720	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
H23-7	15653	ALCOA GLOBAL FASTENERS, INC.
H23-7	F6033	TECNOTEC SARL
H23-7	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
H23-7	R1120	SATAIR A/S
H29523-7	15653	ALCOA GLOBAL FASTENERS, INC.
LH3393-070	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
LH3393-070	72962	HARVARD INDUSTRIES INC
VN406-A-070	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
VN406-A-070	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-840-1166

Compare

Related Products | NSN 5310-00-840-1166

5310-00-840-1218, 5310-00-840-1223, 5310-00-840-1321, 5310-00-840-1342, 5310-00-840-1884

Technical Data | NSN 5310-00-840-1166

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.438 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 8740 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS6322 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	40.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM
NUT STYLE	A293 DOUBLE HEXAGON
WASHER OUTSIDE DIAMETER	0.786 INCHES MAXIMUM
OVERALL HEIGHT	0.469 INCHES MAXIMUM
WASHER THICKNESS	0.078 INCHES NOMINAL
WIDTH ACROSS FLATS	0.492 INCHES MINIMUM AND 0.502 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
COUNTERSINK ANGLE	ANY ACCEPTABLE NUT
LUBRICATION	DRY FILM LUBRICANT
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
