NSN 5310-00-877-5795 MS21044N8, MS21044-N8, MS5184337

Product Details | HEXAGON SELF-LOCKING NUT

5310-00-877-5795 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.

Part Alternates: MS21044N8, MS21044-N8, MS5184337, MS51843-37, AN365820A, AN365-820A, 5310PL0890468, 85367600, 853676-00, 87012900, 870129-00, 8815984, 88-159-84, 029NE080, 10082630, 18D08, 2533408PC119, 2951304, 29E080, 29E-080, 2M2570, 52562890459, 525-628-90459, 5310-00-877-5795, 00-877-5795, 5310008775795 , 008775795

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-877-5795	05277 ( NUT, SELF-LOCKING, HEXAGON )

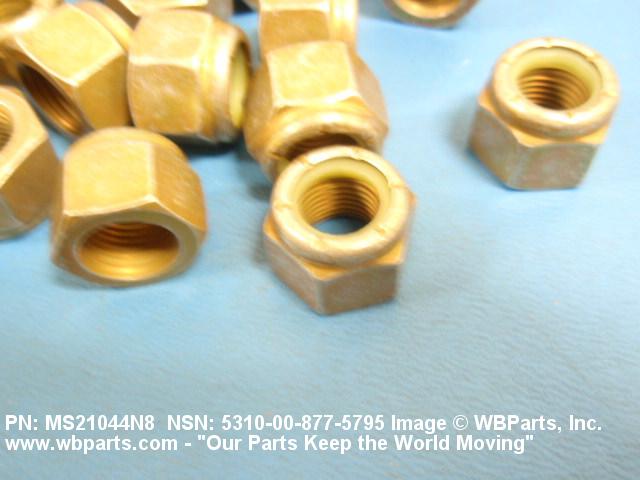

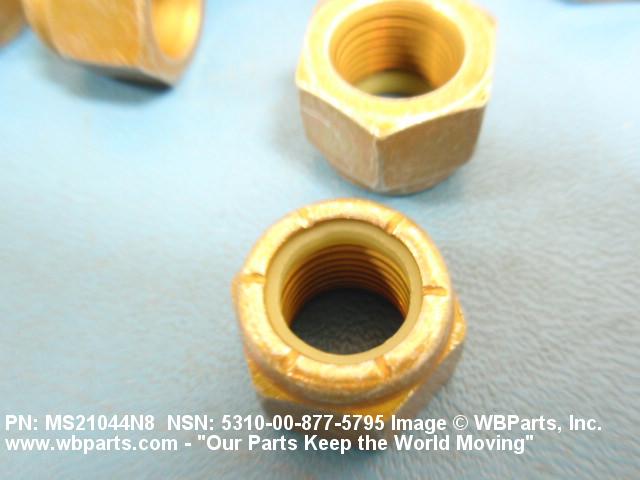

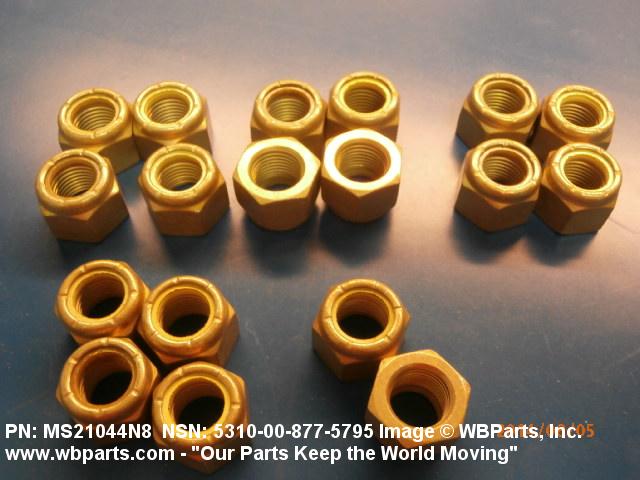

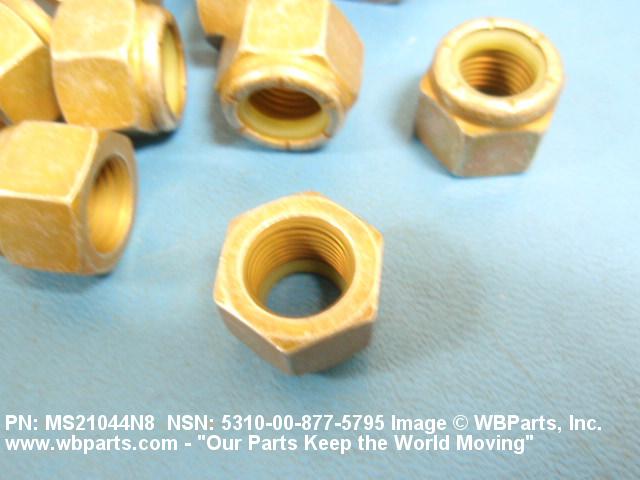

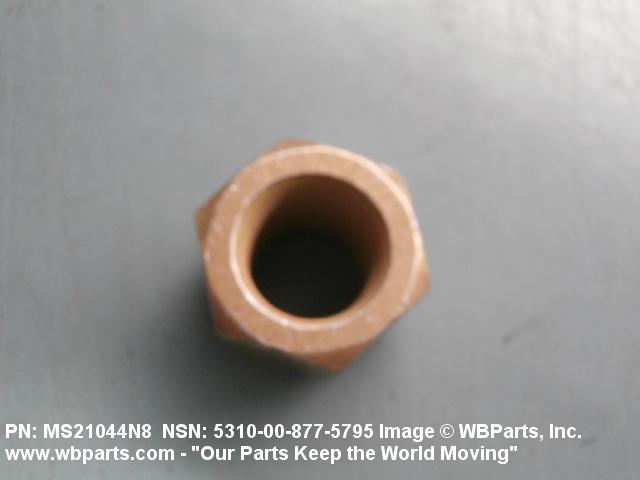

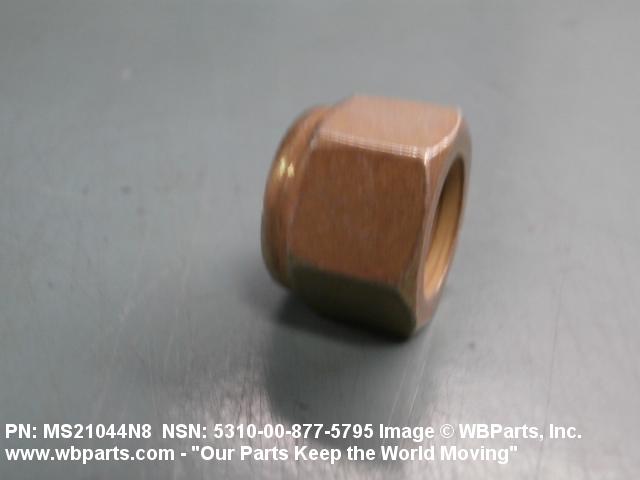

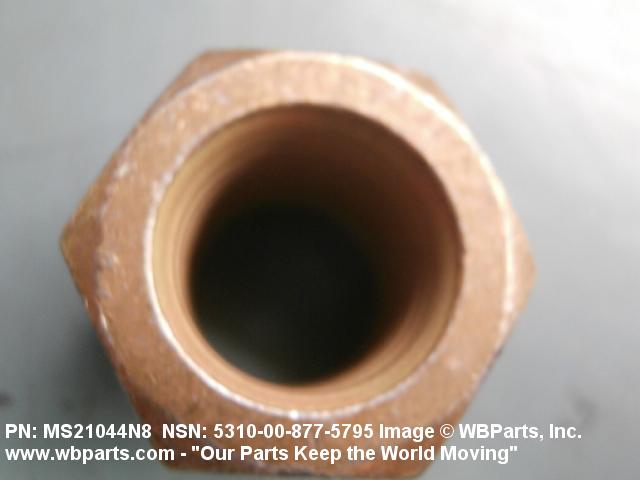

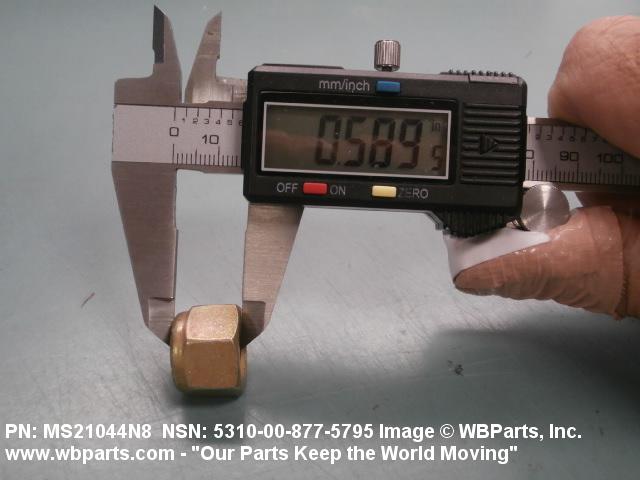

Drawings & Photos | NSN 5310-00-877-5795

Part Number	Request Date	QTY	Origin
MS21044N8	2024-04-110	12	US
5310-00-877-5795	2022-11-308	12	CL
MS21044N8	2022-06-180	24	US
5310-00-877-5795	2022-06-152	147	DIBBS
5310-00-877-5795	2022-04-117	46	DIBBS
5310-00-877-5795	2022-03-74	899	DIBBS
MS21044N8	2021-10-292	15	United States
MS21044N8	2021-03-74	5	US
5310-00-877-5795	2021-03-74	5	US
MS21044N8	2020-09-266	10	US
MS21044N8	2020-01-16	6	MX
5310-00-877-5795	2019-11-333	362	DIBBS
5310-00-877-5795	2019-11-325	362	DIBBS
MS21044N8	2019-11-309	432	US
MS21044N8	2019-06-169	1500	United States
MS21044N8	2019-06-169	3000	United States
MS21044N8	2019-06-169	6000	United States
MS21044N8	2018-04-117	10	United States
MS21044N8	2018-03-73	10	United States
5310-00-877-5795	2018-02-45	44	DIBBS
5310-00-877-5795	2017-09-261	1054	DIBBS
5310-00-877-5795	2017-09-253	1054	DIBBS
5310-00-877-5795	2017-08-242	950	DIBBS
MS21044N8	2017-08-228	15	United States
5310-00-877-5795	2017-08-226	6	United States
5310-00-877-5795	2017-07-212	242	DIBBS
5310-00-877-5795	2017-07-204	242	DIBBS
5310-00-877-5795	2016-05-139	14339	DIBBS
MS21044N8	2016-05-131	288	US
MS21044N8	2015-11-306	8	us
MS21044N8	2015-06-176	60	Turkey
MS21044N8	2015-06-156	24	United States
MS21044-N8	2014-11-308	5000	United States
MS21044N8	2014-10-291	32	US
MS21044N8	2014-03-79	100	United States
MS21044N8	2014-03-78	20	United States
MS21044N8	2013-08-241	20	United States
MS21044N8	2013-08-235	10	US
5310-00-877-5795	2013-07-193	10956	KR
MS21044N8	2013-05-123	100	United States
5310-00-877-5795	2013-04-108	2	MANUAL
5310-00-877-5795	2012-06-163	16	CL
5310-00-877-5795	2012-04-100	50	SG
MS21044N8	2011-11-325	100	US
MS21044N8	2011-11-308	200	United States
5310-00-877-5795	2011-06-163	8	US
MS21044N8	2010-12-355	600	US
MS21044N8	2010-11-327	16	United States
AN365820A	2010-10-277	20	Netherlands
5310-00-877-5795	2010-06-167	4	United States
MS21044N8	2010-06-167	4	United States
5310-00-877-5795	2010-04-107	61	US
5310-00-877-5795	2009-12-338	1	US
MS21044N8	2008-12-347	2	US

Cross Reference | NSN 5310-00-877-5795

Part Number	Cage Code	Manufacturer
029NE080	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
18D08	12603	CLARK EQUIPMENT CO
18D08	77237	DANA OFF HIGHWAY PRODUCTS, LLC
2533408PC119	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
2951304	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
29E-080	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
2M2570	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
525-628-90459	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
5310008775795	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5310PL0890468	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
853676-00	32345	DEFENSE REDUCTION AGENCY
870129-00	32345	DEFENSE REDUCTION AGENCY
88-159-84	08786	TAYLOR-DUNN MANUFACTURING COMPANY
AN365-820A	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
MS21044-N8	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21044-N8	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21044N8	A9271	GORIZIANE GROUP SPA
MS21044N8	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS51843-37	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-877-5795

Compare

Related Products | NSN 5310-00-877-5795

5310-00-877-5796, 5310-00-877-5797, 5310-00-877-5798, 5310-00-877-5838, 5310-00-877-5972

Technical Data | NSN 5310-00-877-5795

Characteristic	Specifications
THREAD SERIES	UNF
NOMINAL THREAD SIZE	0.500 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 1006 OR STEEL COMP 1008 OR STEEL COMP 1009 OR STEEL COMP 1010 OR STEEL COMP 1015 OR STEEL COMP 1018 OR STEEL COMP 1035 OR STEEL COMP 11L37 OR STEEL COMP 1213 OR STEEL COMP 12L14 NUT
SURFACE TREATMENT	CADMIUM AND CHROMATE NUT
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE NUT
HARDNESS RATING	NOT RATED
NUT STYLE	A12 HEXAGON

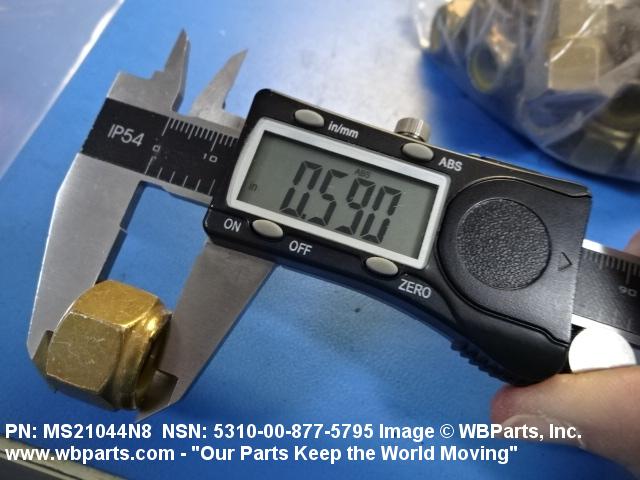

NUT HEIGHT	0.575 INCHES MINIMUM AND 0.610 INCHES MAXIMUM

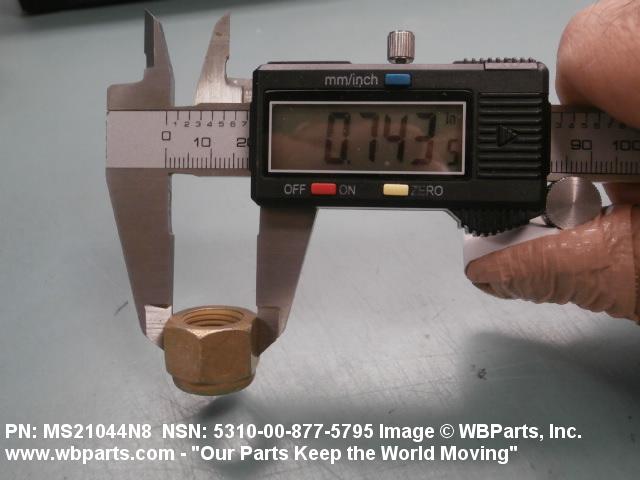

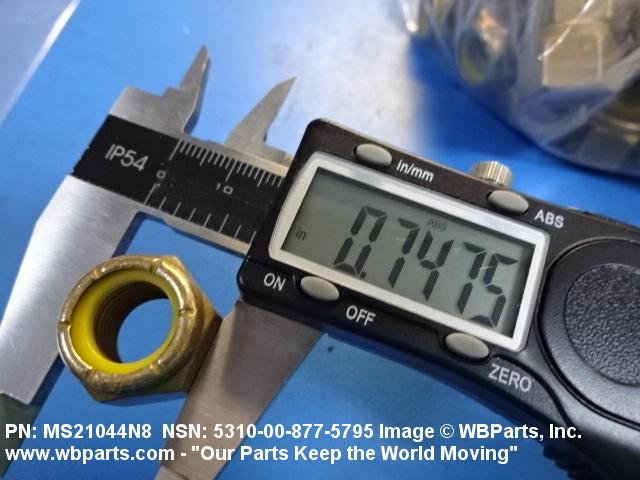

WIDTH ACROSS FLATS	0.741 INCHES MINIMUM AND 0.752 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED OR WASHER FACED

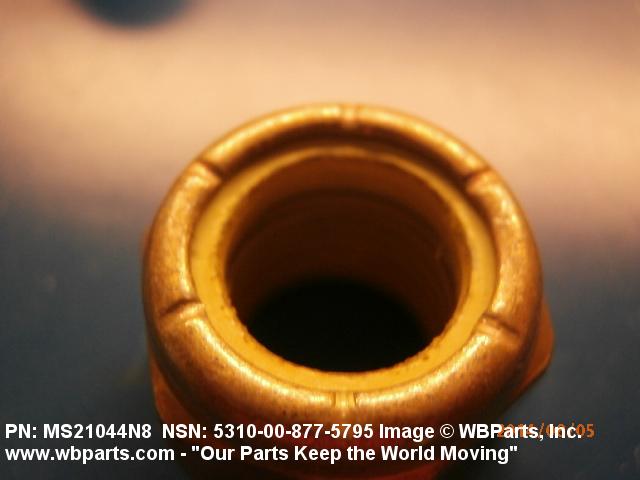

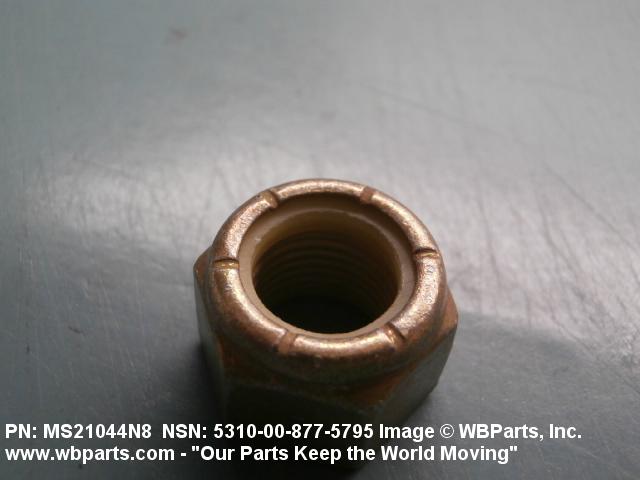

LOCKING FEATURE	PREVAILING TORQUE WITH NONMETALLIC INSERT

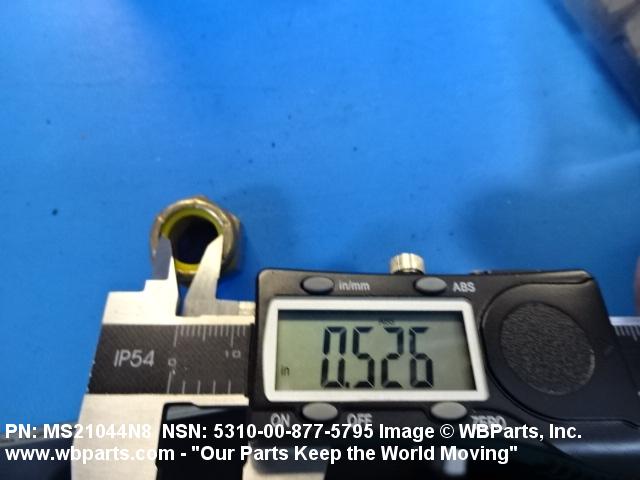

COUNTERBORE DIAMETER	0.511 INCHES MINIMUM AND 0.551 INCHES MAXIMUM NUT
COUNTERSINK ANGLE	88.0 DEGREES NOMINAL NUT
LUBRICATION	SOLUBLE LUBRICANT
TEMP RATING	250.0 DEG FAHRENHEIT NOMINAL
III BEARING SURFACE FINISH	125.0 MICROINCHES
III END ITEM IDENTIFICATION	W/S:SUPPORT EQUIPMENT, B-52 AIRCRAFT; SUPPORT EQUIPMENT, B-1 AIRCRAFT; ELEVATORS, AIRCRAFT; AIRBORNE MOBILE DIR AIR SPT CTL (2ID), (02M JUL83)(AN/UYQ-3A); SHIPBOARD MATERIAL HANDLING EQUIPMENT (MHE); FIRE PUMPS; L.P. COMPRESSORS; CLOSE IN WEAPON SYSTEM (CIWS-PHALANX); AIRCRAFT (AC-130H, MC-130H, EC-130E, HC-130);HIAB CRANE (HEAVY EXPANDED MOBILITY TACTICAL TRUCKS)

Restrictions/Controls & Freight Information | NSN 5310-00-877-5795

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-877-5795

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
