NSN 5310-01-109-6057 NAS180412, NAS1804-12, 01-109-6057

Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT

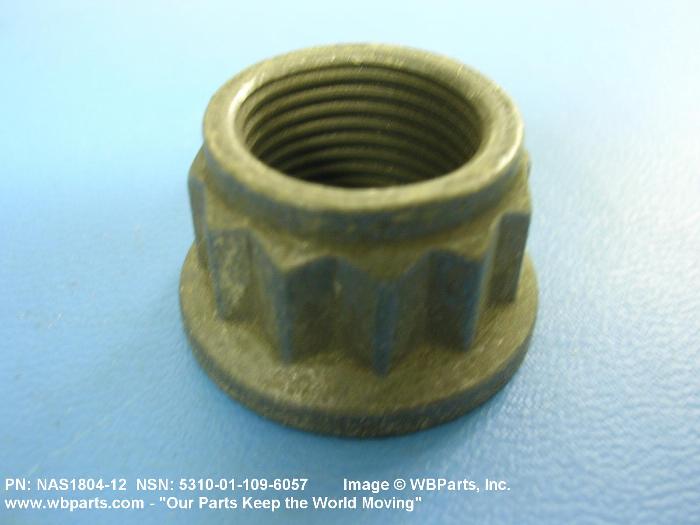

5310-01-109-6057 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: NAS180412, NAS1804-12, 5310-01-109-6057, 01-109-6057, 5310011096057, 011096057

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	18 MAR 1981	01-109-6057	29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON )

Drawings & Photos | NSN 5310-01-109-6057

Part Number	Request Date	QTY	Origin
NAS180412	2023-11-313	60	United States
NAS180412	2023-10-276	500	United States
NAS180412	2023-08-243	250	United States
NAS180412	2023-08-243	500	United States
5310-01-109-6057	2023-06-156	30	us
NAS180412	2020-07-205	500	United States
NAS180412	2020-07-205	1000	United States
NAS180412	2020-07-205	1500	United States
NAS180412	2020-07-205	2500	United States
NAS180412	2019-02-36	4	Thailand
NAS180412	2018-06-171	250	United States
NAS180412	2018-06-171	500	United States
NAS180412	2018-06-171	1000	United States
NAS180412	2018-05-135	500	United States
NAS180412	2018-05-135	1000	United States
5310-01-109-6057	2018-05-130	1	DIBBS-RFPs
NAS180412	2017-09-256	16	United States
NAS180412	2017-06-179	250	United States
NAS180412	2017-06-179	500	United States
NAS180412	2017-06-179	750	United States
NAS180412	2017-06-179	1000	United States
NAS180412	2015-10-303	250	United States
NAS180412	2015-10-303	500	United States
NAS180412	2015-10-303	750	United States
NAS180412	2015-04-97	500	United States
5310-01-109-6057	2013-03-79	60	US
5310-01-109-6057	2013-02-37	400	United States
5310-01-109-6057	2013-01-08	200	United States
NAS180412	2012-01-12	6	United States
5310-01-109-6057	2011-03-69	8	US
NAS180412	2010-08-222	20	United States
5310-01-109-6057	2010-06-173	5	MX
5310-01-109-6057	2009-09-257	500	US
5310-01-109-6057	2008-08-241	500	United States
5310-01-109-6057	2008-05-137	40	United States
5310-01-109-6057	2007-10-281	20	US

Cross Reference | NSN 5310-01-109-6057

Part Number	Cage Code	Manufacturer
NAS1804-12	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-109-6057

Compare

Related Products | NSN 5310-01-109-6057

5310-01-109-6058, 5310-01-109-6059, 5310-01-109-6063, 5310-01-109-6379, 5310-01-109-6380

Technical Data | NSN 5310-01-109-6057

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.750 INCHES
THREAD QUANTITY PER INCH	16
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP H11 OR STEEL COMP 601 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 6487 ASSN STD 1ST MATERIAL RESPONSE OR AMS 6403 ASSN STD 2ND MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2 FED SPEC ALL TREATMENT RESPONSES OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A293 DOUBLE HEXAGON
WASHER OUTSIDE DIAMETER	1.181 INCHES MINIMUM AND 1.221 INCHES MAXIMUM
OVERALL HEIGHT	0.750 INCHES MAXIMUM
WASHER THICKNESS	0.094 INCHES NOMINAL
WIDTH ACROSS FLATS	0.928 INCHES MINIMUM AND 0.940 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
COUNTERBORE DIAMETER	0.750 INCHES MINIMUM AND 0.785 INCHES MAXIMUM NUT
LUBRICATION	DRY FILM LUBRICANT
TEMP RATING	450.0 DEG FAHRENHEIT MAXIMUM
SPECIFICATION/STANDARD DATA	80205-NAS1804 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
