NSN 5320-00-286-0660 HL5706MC, HL570-6MC, ST3M419V36
Product Details | PIN-RIVET COLLAR

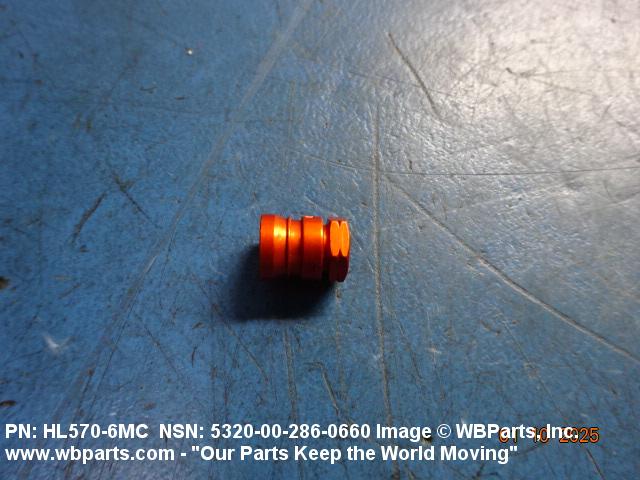

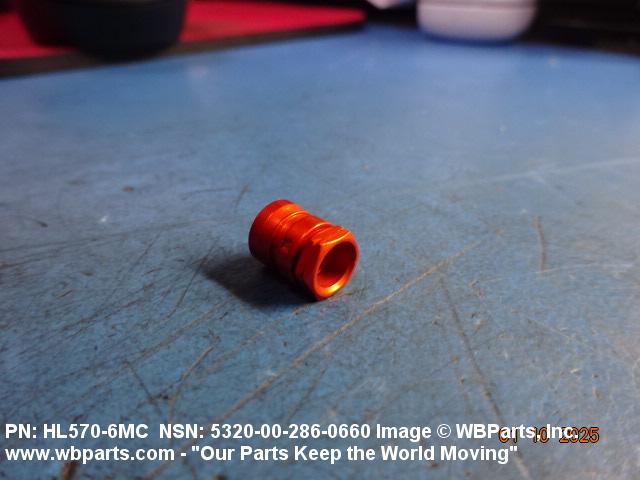

5320-00-286-0660 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: HL5706MC, HL570-6MC, ST3M419V36, ST3M419V3-6, ST3M525N3M, ST3M525N3ME, 5320-00-286-0660, 00-286-0660, 5320002860660, 002860660
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 SEP 1973 | 00-286-0660 | 67166 ( COLLAR, PIN-RIVET ) |
Drawings & Photos | NSN 5320-00-286-0660
Demand History | NSN 5320-00-286-0660
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ST3M525N3ME | 2025-10-304 | 16 | US |
| 5320-00-286-0660 | 2025-09-254 | 8016 | United States |
| 5320-00-286-0660 | 2025-07-196 | 1250 | Spain |
| ST3M525N3ME | 2025-04-119 | 100 | us |
| 5320-00-286-0660 | 2025-03-90 | 2350 | Singapore |
| 5320-00-286-0660 | 2024-12-351 | 20 | Spain |
| HL5706MC | 2024-11-318 | 70 | us |
| 5320-00-286-0660 | 2024-11-310 | 20 | Spain |
| 5320-00-286-0660 | 2023-07-193 | 500 | Spain |
| 5320-00-286-0660 | 2023-07-193 | 700 | Spain |
| ST3M525N3ME | 2021-03-68 | 2500 | United States |
| ST3M525N3ME | 2020-10-304 | 36 | US |
| ST3M525N3ME | 2019-08-219 | 2 | United States |
| HL570-6MC | 2019-05-143 | 20000 | DIBBS |
| ST3M525N3ME | 2019-05-128 | 100 | Australia |
| HL570-6MC | 2019-01-31 | 125000 | DIBBS |
| 5320-00-286-0660 | 2018-12-350 | 18710 | DIBBS |
| ST3M525N3ME | 2018-11-317 | 9 | United States |
| 5320-00-286-0660 | 2018-11-317 | 23733 | DIBBS |
| 5320-00-286-0660 | 2018-11-305 | 43068 | DIBBS |
| ST3M525N3ME | 2018-10-301 | 1000 | SA |
| ST3M525N3ME | 2018-10-299 | 8 | United States |
| 5320-00-286-0660 | 2018-09-270 | 7676 | DIBBS |
| 5320-00-286-0660 | 2018-08-241 | 5941 | DIBBS |
| ST3M525N3ME | 2018-08-240 | 60 | United States |
| 5320-00-286-0660 | 2018-06-154 | 17332 | DIBBS |
| 5320-00-286-0660 | 2018-03-80 | 7524 | DIBBS |
| 5320-00-286-0660 | 2018-01-31 | 50 | United States |
| 5320-00-286-0660 | 2017-11-333 | 44588 | DIBBS |
| ST3M525N3ME | 2017-01-24 | 312 | United States |
| 5320-00-286-0660 | 2016-12-347 | 2992 | DIBBS |
| 5320-00-286-0660 | 2016-07-208 | 33090 | DIBBS |
| 5320-00-286-0660 | 2016-07-200 | 33090 | DIBBS |
| 5320-00-286-0660 | 2016-02-34 | 35000 | DIBBS |
| 5320-00-286-0660 | 2015-10-278 | 34290 | DIBBS |
| 5320-00-286-0660 | 2013-09-246 | 1 | DIBBS-RFPs |
| 5320-00-286-0660 | 2011-06-173 | 39336 | DIBBS |
| 5320-00-286-0660 | 2011-04-102 | 22637 | DIBBS |
| ST3M525N3ME | 2010-08-222 | 2 | US |
| ST3M525N3M | 2008-10-283 | 3 | us |
| ST3M525N3ME | 2008-04-106 | 8 | United States |
Cross Reference | NSN 5320-00-286-0660
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3929AS1620-3 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| HL570-6MC | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| HL570-6MC | 50392 | SPS TECHNOLOGIES INC |
| HL570-6MC | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL570-6MC | 5M902 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL570-6MC | 73197 | HI-SHEAR CORPORATION |
| HL570-6MC | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| HL570-6MC | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL570-6MC | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| HL570-6MC | L4528 | LISI AEROSPACE CANADA CORP |
| HL570-6MC | R1120 | SATAIR A/S |
| ST3M419V3-6 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| ST3M525N3M | 76301 | BOEING COMPANY, THE DBA BOEING |
| ST3M525N3ME | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-286-0660
Related Products | NSN 5320-00-286-0660
Technical Data | NSN 5320-00-286-0660
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAT TREATMENT | T-6 SOLUTION HEAT TREATED OVERALL |
| COLLAR STYLE | A3 THREADED (BREAK OFF) TYPE |

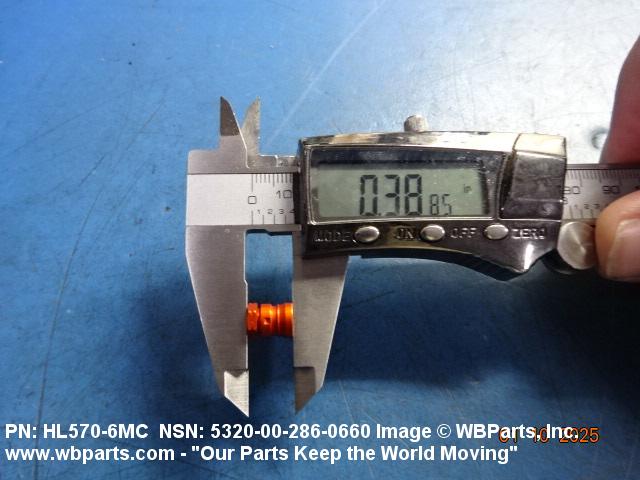

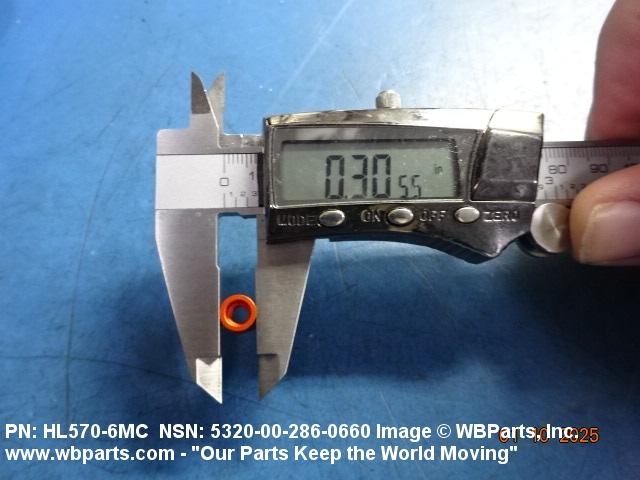

| COLLAR OUTSIDE DIAMETER | 0.303 INCHES MINIMUM AND 0.307 INCHES MAXIMUM |
