NSN 5320-01-092-6985 C9570612P, C9570-6-12P, HLT915LP612

Product Details | PIN-RIVET

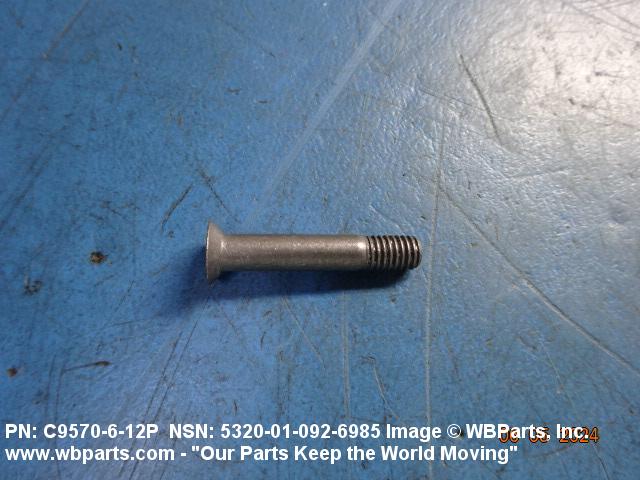

5320-01-092-6985 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.

Part Alternates: C9570612P, C9570-6-12P, HLT915LP612, HLT915LP6-12, HLT915TB612, HLT915TB-6-12, HLT915TB6-12, KS426S0612P, KS426S06-12P, 4448S0612P, 4448S06-12P, 444ES0612P, 444ES06-12P, 5320-01-092-6985, 01-092-6985, 5320010926985, 010926985

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 APR 1980	01-092-6985	67165 ( PIN-RIVET )

Drawings & Photos | NSN 5320-01-092-6985

Part Number	Request Date	QTY	Origin
5320-01-092-6985	2024-05-128	163	United States
5320-01-092-6985	2024-02-39	163	United States
4448S06-12P	2022-05-138	409	DIBBS
HLT915LP6-12	2022-05-138	409	DIBBS
HLT915TB-6-12	2022-05-138	409	DIBBS
HLT915TB6-12	2022-05-138	409	DIBBS
4448S06-12P	2022-05-123	409	DIBBS
HLT915LP6-12	2022-05-123	409	DIBBS
HLT915TB-6-12	2022-05-123	409	DIBBS
HLT915TB6-12	2022-05-123	409	DIBBS
5320-01-092-6985	2018-11-312	624	DIBBS
5320-01-092-6985	2017-06-165	400	DIBBS
5320-01-092-6985	2016-04-101	326	DIBBS
5320-01-092-6985	2012-12-351	384	DIBBS
5320-01-092-6985	2012-10-277	1058	DIBBS
5320-01-092-6985	2012-09-270	363	DIBBS

Cross Reference | NSN 5320-01-092-6985

Part Number	Cage Code	Manufacturer
4448S06-12P	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
444ES06-12P	29666	HUCK MFG CO
C9570-6-12P	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
HLT915LP6-12	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HLT915TB-6-12	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HLT915TB-6-12	73197	HI-SHEAR CORPORATION
HLT915TB-6-12	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HLT915TB-6-12	97928	HUCK INTL INC
HLT915TB-6-12	L4528	LISI AEROSPACE CANADA CORP
HLT915TB6-12	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
HLT915TB6-12	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
HLT915TB6-12	60516	WEST COAST AEROSPACE INC
KS426S06-12P	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-092-6985

Compare

Related Products | NSN 5320-01-092-6985

5320-01-092-6986, 5320-01-092-6987, 5320-01-092-6988, 5320-01-092-8758, 5320-01-092-8759

Technical Data | NSN 5320-01-092-6985

Characteristic	Specifications
MATERIAL	STEEL COMP 8740 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AISI ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
SHEAR STRENGTH	108000 SINGLE POUNDS PER SQUARE INCH
HEAD STYLE	A9 FLUSH COUNTERSUNK

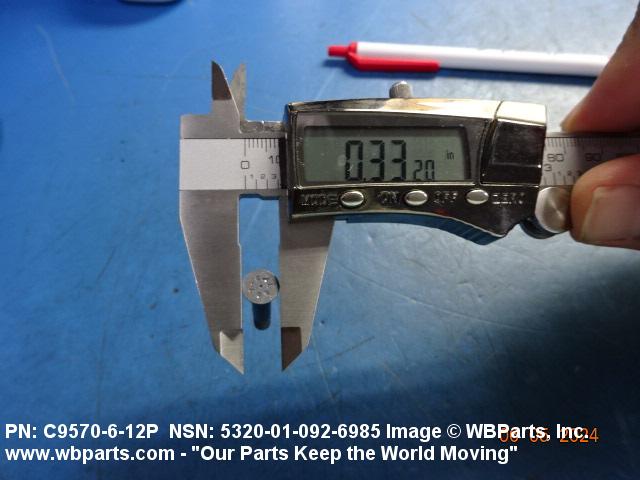

HEAD MAJOR DIAMETER	0.356 INCHES MAXIMUM
COUNTERSINK ANGLE	99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM
SHANK STYLE	B31 PIN-RIVET, STRAIGHT, THREADED

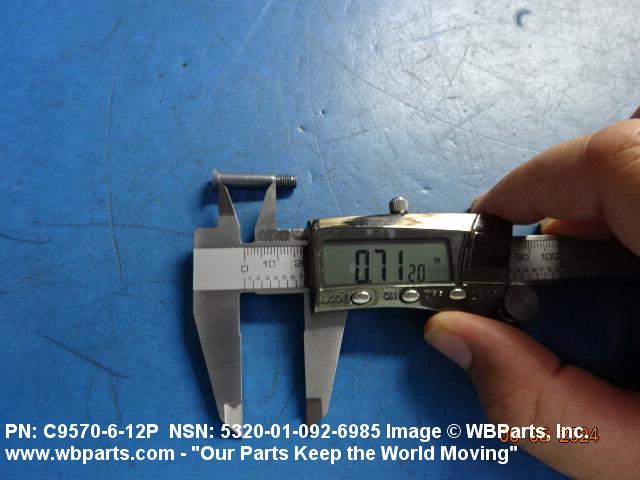

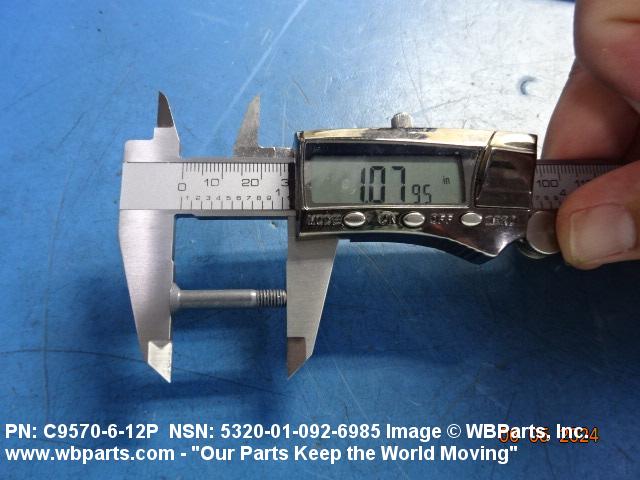

FASTENER LENGTH	1.065 INCHES MINIMUM AND 1.085 INCHES MAXIMUM
WIDTH BETWEEN FLATS	0.0791 INCHES MINIMUM AND 0.0806 INCHES MAXIMUM

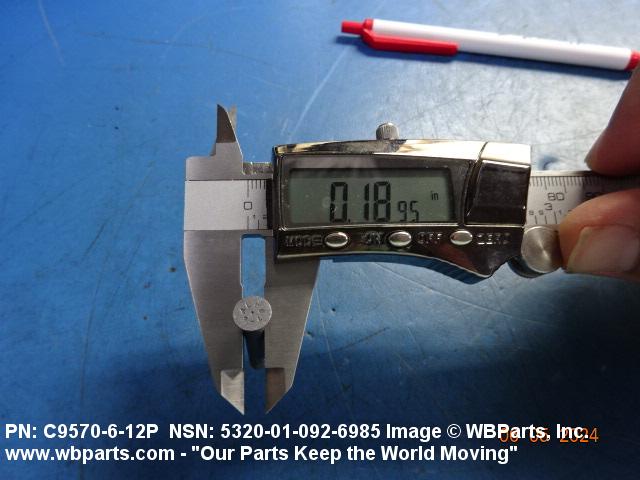

SHANK DIAMETER	0.1885 INCHES MINIMUM AND 0.1895 INCHES MAXIMUM

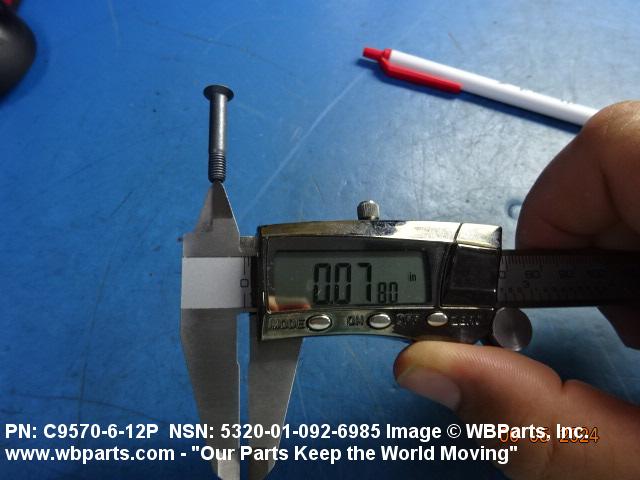

GRIP LENGTH	0.689 INCHES MINIMUM AND 0.750 INCHES MAXIMUM

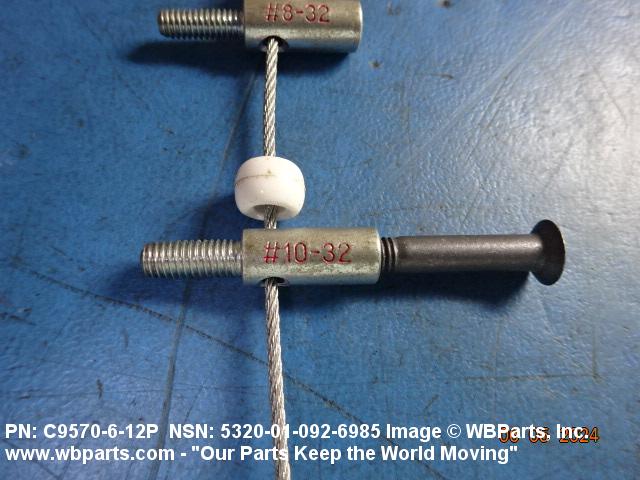

THREAD SERIES DESIGNATOR	UNJF
