NSN 5320-01-338-6908 BABC30VT6K9X, BACB30VT6K9X, HST10AG69

Product Details | PIN-RIVET

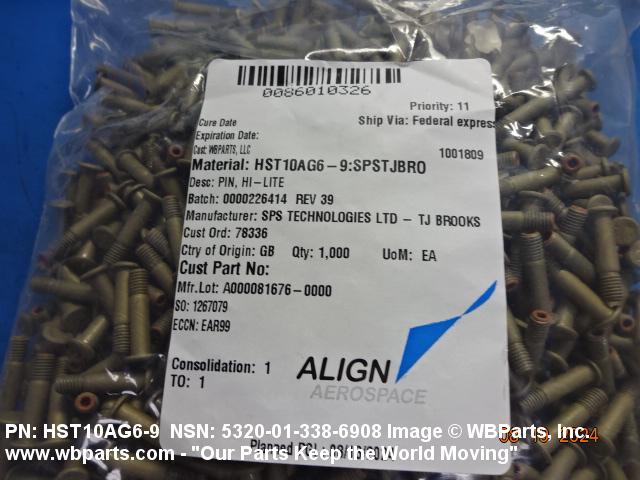

5320-01-338-6908 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.

Part Alternates: BABC30VT6K9X, BACB30VT6K9X, HST10AG69, HST10AG-6-9, 5320-01-338-6908, 01-338-6908, 5320013386908, 013386908

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	09 MAY 1991	01-338-6908	67165 ( PIN-RIVET )

Drawings & Photos | NSN 5320-01-338-6908

Part Number	Request Date	QTY	Origin
HST10AG69	2024-07-197	1000	Czech Republic
HST10AG69	2022-01-31	100	United States
HST10AG69	2022-01-28	1000	United States
BABC30VT6K9X	2019-05-128	214	DIBBS
HST10AG-6-9	2019-05-128	214	DIBBS
5320-01-338-6908	2018-06-178	156	DIBBS
5320-01-338-6908	2018-04-95	90	DIBBS
5320-01-338-6908	2017-05-128	80	DIBBS
5320-01-338-6908	2017-03-75	11	DIBBS
5320-01-338-6908	2014-09-272	13	DIBBS
HST10AG69	2012-08-227	4875	US
5320-01-338-6908	2011-08-241	7	DIBBS
HST10AG69	2008-05-135	130	US
HST10AG69	2006-10-300	130	US

Cross Reference | NSN 5320-01-338-6908

Part Number	Cage Code	Manufacturer
BABC30VT6K9X	81205	THE BOEING COMPANY DBA BOEING
BACB30VT6K9X	81205	THE BOEING COMPANY DBA BOEING
HST10AG-6-9	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
HST10AG-6-9	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HST10AG-6-9	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
HST10AG-6-9	73197	HI-SHEAR CORPORATION
HST10AG-6-9	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HST10AG-6-9	L4528	LISI AEROSPACE CANADA CORP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-338-6908

Compare

Related Products | NSN 5320-01-338-6908

5320-01-338-6909, 5320-01-338-6910, 5320-01-338-6911, 5320-01-338-6912, 5320-01-338-6913

Technical Data | NSN 5320-01-338-6908

Characteristic	Specifications
MATERIAL	TITANIUM ALLOY UNS R56400 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 4928 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 4967 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ALUMINUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	HI KOTE 1,CAGEC 73197 MFR REF SINGLE TREATMENT RESPONSE OVERALL
SHEAR STRENGTH	95000 SINGLE POUNDS PER SQUARE INCH
HEAD STYLE	A34 FLAT CHAMFER
HEAD HEIGHT	0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM
HEAD MAJOR DIAMETER	0.295 INCHES MINIMUM AND 0.315 INCHES MAXIMUM
SHANK STYLE	B31 PIN-RIVET, STRAIGHT, THREADED
FASTENER LENGTH	0.842 INCHES MINIMUM AND 0.862 INCHES MAXIMUM
WIDTH BETWEEN FLATS	0.0791 INCHES MINIMUM AND 0.0806 INCHES MAXIMUM
SHANK DIAMETER	0.1885 INCHES MINIMUM AND 0.1895 INCHES MAXIMUM
GRIP LENGTH	0.557 INCHES MINIMUM AND 0.567 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD CLASS	3A
THREAD QUANTITY PER INCH	32
THREAD DIRECTION	RIGHT-HAND
LUBRICATION	CETYL ALCOHOL, SPEC 305, HI-SHEAR CORP
SPECIAL FEATURES	COLOR CODE ORANGE ON THREAD END
