NSN 5330-00-186-4098 MILG15342, MIL-G-15342, 8035959278
Product Details | SPIRAL WOUND GASKET
5330-00-186-4098 A circular or moderately noncircular shaped item with an aperture. It is constructed of spring-like metal strips, preformed into a vee shape, laminated with a soft filler. It is designed to seal between two nondeforming surfaces. It may have an inner and/or outer, solid or spiral wound compression ring(s).
Part Alternates: MILG15342, MIL-G-15342, 8035959278, 803-5959278, 5000S5101F841218, 5000S5101F841218TYPE5, 5330-00-186-4098, 00-186-4098, 5330001864098, 001864098
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-186-4098 | 37840 ( GASKET, SPIRAL WOUND ) |

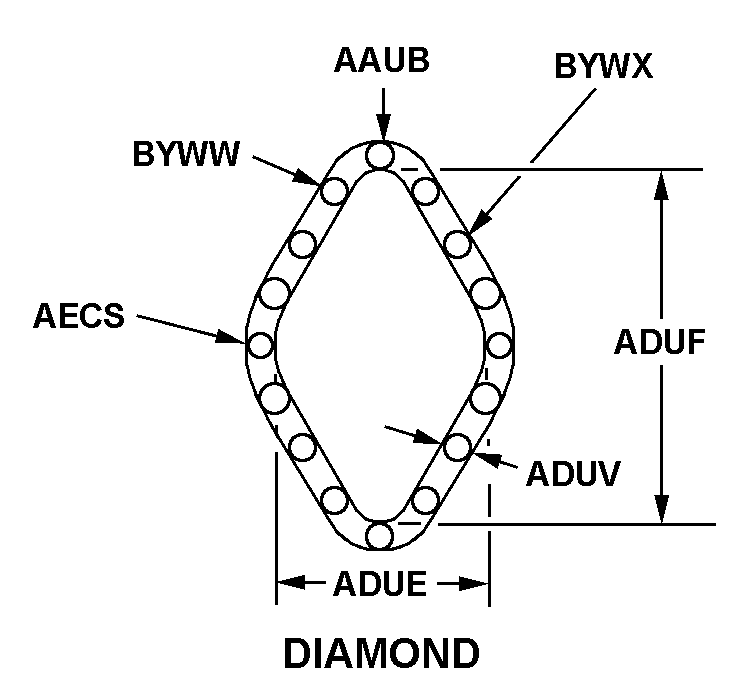

Drawings & Photos | NSN 5330-00-186-4098
Cross Reference | NSN 5330-00-186-4098
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 803-5959278-024 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-186-4098
Technical Data | NSN 5330-00-186-4098
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL AND GRAPHITE OR STEEL AND CHLORITE SPIRAL WOUND FILLER |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-P-24503 MIL SPEC 2ND MATERIAL RESPONSE SPIRAL WOUND FILLER |
| CROSS-SECTIONAL SHAPE STYLE | F45 METAL WINDING W/SOFT FILLER |
| CROSS-SECTIONAL THICKNESS | 0.175 INCHES NOMINAL |
| STYLE DESIGNATOR | B4A DIAMOND |
| APERTURE WIDTH | 3.000 INCHES NOMINAL |
| APERTURE LENGTH | 3.875 INCHES NOMINAL |
| BEARING SURFACE WIDTH | 0.218 INCHES NOMINAL |
| SPECIAL FEATURES | SERIES 600,CLASS 1 |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY DIMENSIONS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-G-15342 |
| MANUFACTURERS CODE | 53711 |
| DESIGN CONTROL REFERENCE | 803-5959278 |
Restrictions/Controls & Freight Information | NSN 5330-00-186-4098
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
