Product Details | SPIRAL WOUND GASKET
5330-00-634-9387 A circular or moderately noncircular shaped item with an aperture. It is constructed of spring-like metal strips, preformed into a vee shape, laminated with a soft filler. It is designed to seal between two nondeforming surfaces. It may have an inner and/or outer, solid or spiral wound compression ring(s).
Part Alternates: 24346200C, 24346-200C, 417200C, 417-200C, 5330-00-634-9387, 00-634-9387, 5330006349387, 006349387
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-634-9387 | 37840 ( GASKET, SPIRAL WOUND ) |
Drawings & Photos | NSN 5330-00-634-9387
Demand History | NSN 5330-00-634-9387
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-634-9387 | 2023-08-226 | 30 | US |
| 24346200C | 2023-02-51 | 30 | South Africa |
| 5330-00-634-9387 | 2023-02-51 | 30 | South Africa |
| 5330-00-634-9387 | 2021-09-267 | 84 | Malaysia |
| 24346200C | 2021-09-259 | 200 | ID |
| 5330-00-634-9387 | 2021-09-255 | 200 | ID |
| 24346200C | 2021-05-136 | 20 | Malaysia |
| 24346200C | 2021-05-123 | 20 | Malaysia |
| 5330-00-634-9387 | 2021-04-109 | 30 | South Africa |
| 5330-00-634-9387 | 2019-02-50 | 1 | DIBBS-RFPs |
| 5330-00-634-9387 | 2018-07-211 | 1500 | DIBBS |
| 5330-00-634-9387 | 2018-07-183 | 1000 | DIBBS |
| 24346200C | 2018-02-59 | 280 | IN |
| 5330-00-634-9387 | 2017-10-304 | 1000 | DIBBS |
| 5330-00-634-9387 | 2016-11-307 | 804 | DIBBS |
| 5330-00-634-9387 | 2016-06-153 | 723 | DIBBS |
| 5330-00-634-9387 | 2016-03-62 | 516 | DIBBS |
| 5330-00-634-9387 | 2015-12-336 | 516 | DIBBS |
| 5330-00-634-9387 | 2015-04-119 | 738 | DIBBS |
| 5330-00-634-9387 | 2014-07-190 | 1200 | DIBBS |
| 5330-00-634-9387 | 2014-06-181 | 600 | DIBBS |
| 5330-00-634-9387 | 2014-06-169 | 600 | DIBBS |
| 5330-00-634-9387 | 2014-02-41 | 375 | DIBBS |
| 5330-00-634-9387 | 2013-10-275 | 393 | DIBBS |
| 5330-00-634-9387 | 2013-07-210 | 1 | DIBBS-RFPs |
| 5330-00-634-9387 | 2013-07-199 | 1 | DIBBS-RFPs |
| 5330-00-634-9387 | 2013-05-145 | 0 | DIBBS |
| 5330-00-634-9387 | 2013-02-46 | 240 | DIBBS |
| 5330-00-634-9387 | 2013-01-30 | 4 | US |
| 5330-00-634-9387 | 2012-11-325 | 153 | DIBBS |
| 5330-00-634-9387 | 2012-10-277 | 197 | DIBBS |
| 24346200C | 2008-06-172 | 100 | Indonesia |
| 5330-00-634-9387 | 2008-06-171 | 20 | Indonesia |
| 5330-00-634-9387 | 2008-05-127 | 464 | DIBBS |
| 5330-00-634-9387 | 2006-10-295 | 4 | Turkey |
| 5330-00-634-9387 | 2006-10-294 | 4 | Turkey |
| 5330-00-634-9387 | 2006-10-294 | 4 | Turkey |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-634-9387
Related Products | NSN 5330-00-634-9387
Technical Data | NSN 5330-00-634-9387
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-576 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL |
| HARDNESS RATING | 100.0 ROCKWELL E NOMINAL OVERALL |

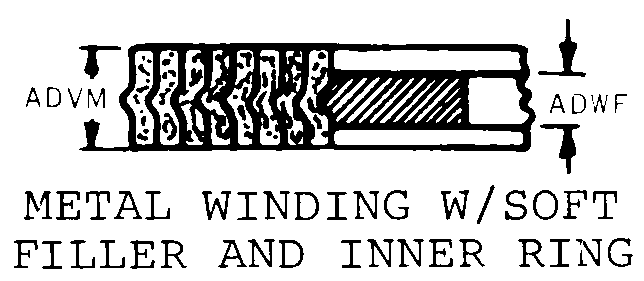

| CROSS-SECTIONAL SHAPE STYLE | F44 METAL WINDING W/SOFT FILLER AND INNER RING |
