NSN 5330-01-485-7557 M24716TY2CLB16.00NPS150PSICRPL, M24716TY2CLB1600NPS150PSICRPL, MILG24716
Product Details | SPIRAL WOUND GASKET
5330-01-485-7557 A circular or moderately noncircular shaped item with an aperture. It is constructed of spring-like metal strips, preformed into a vee shape, laminated with a soft filler. It is designed to seal between two nondeforming surfaces. It may have an inner and/or outer, solid or spiral wound compression ring(s).
Part Alternates: M24716TY2CLB16.00NPS150PSICRPL, M24716TY2CLB1600NPS150PSICRPL, MILG24716, MIL-G-24716, 132072413090, 132-072413-090, 155-072829-004 ITEM 2, 155072829004ITEM2, 5330-01-485-7557, 01-485-7557, 5330014857557, 014857557
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 JUN 2001 | 01-485-7557 | 37840 ( GASKET, SPIRAL WOUND ) |

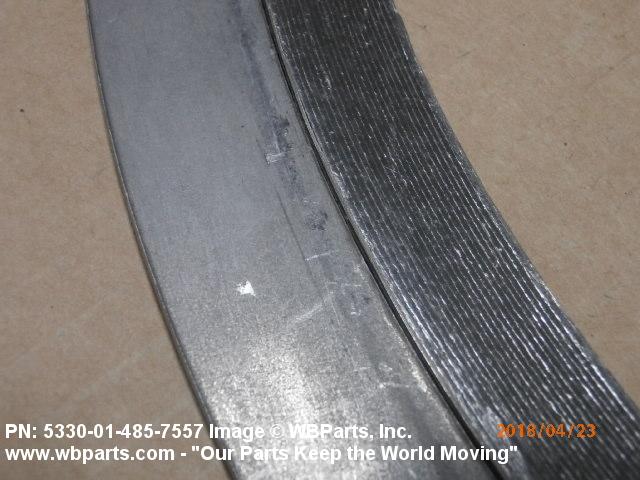

Drawings & Photos | NSN 5330-01-485-7557
Demand History | NSN 5330-01-485-7557
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-485-7557 | 2020-02-35 | 60 | DIBBS |
| 5330-01-485-7557 | 2019-11-318 | 4 | DIBBS |
| 5330-01-485-7557 | 2019-10-295 | 4 | DIBBS |
| 5330-01-485-7557 | 2019-10-287 | 4 | DIBBS |
| 5330-01-485-7557 | 2019-02-38 | 6 | DIBBS |
| 132072413090 | 2018-04-101 | 2 | United States |
| 5330-01-485-7557 | 2018-03-87 | 6 | DIBBS |
| 5330-01-485-7557 | 2017-05-124 | 4 | DIBBS |
| 5330-01-485-7557 | 2015-09-256 | 4 | DIBBS |
| 5330-01-485-7557 | 2012-12-361 | 7 | DIBBS |
| MILG24716 | 2009-05-128 | 1 | India |
| 5330-01-485-7557 | 2008-04-105 | 15 | DIBBS |
Cross Reference | NSN 5330-01-485-7557
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 132-072413-090 | 07131 | CHROMALOX INC |
| 132-072413-090 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 155-072829-004 ITEM 2 | 07131 | CHROMALOX INC |
| M24716TY2CLB16.00NPS150PSICRPL | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-G-24716 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-485-7557
Related Products | NSN 5330-01-485-7557
Technical Data | NSN 5330-01-485-7557
| Characteristic | Specifications |
|---|---|

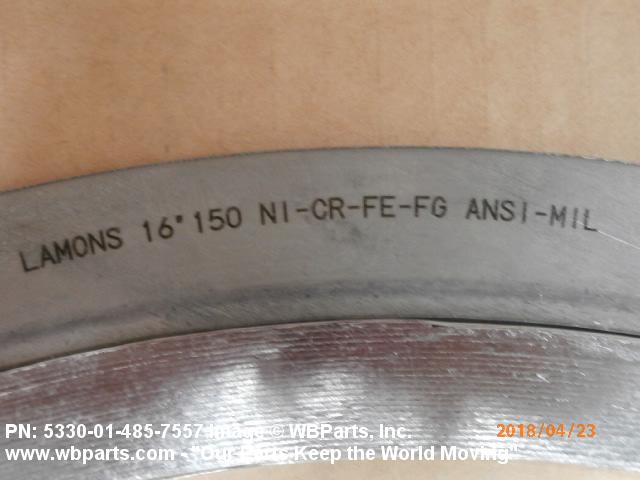

| MATERIAL | GRAPHITE AND NICKEL ALLOY 600 CORE STEEL OUTER RING |
| CROSS-SECTIONAL SHAPE STYLE | F47 METAL WINDING W/SOFT FILLER AND OUTER RING |

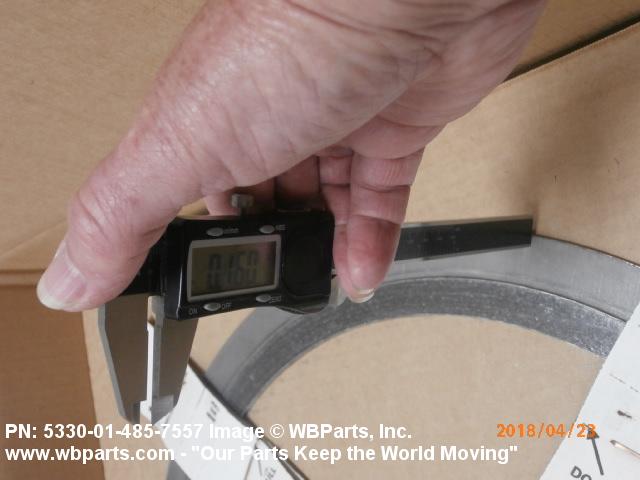

| CROSS-SECTIONAL THICKNESS | 0.175 INCHES MINIMUM |

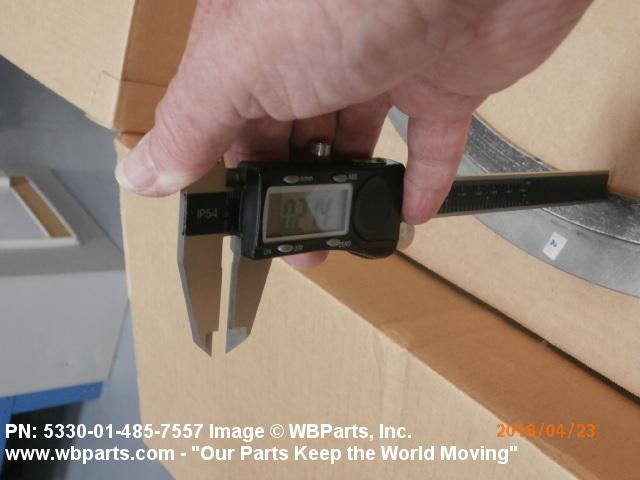

| GAGE RING THICKNESS | 0.093 INCHES MINIMUM |
| STYLE DESIGNATOR | B9 CIRCULAR |

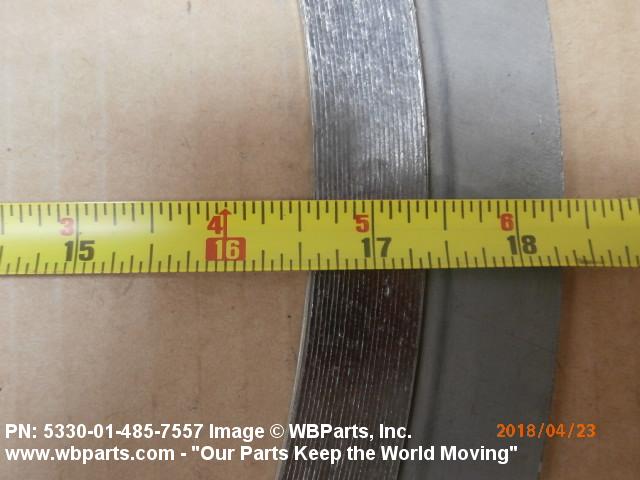

| OUTSIDE DIAMETER | 18.250 INCHES NOMINAL |
| APERTURE DIAMETER | 16.625 INCHES NOMINAL |

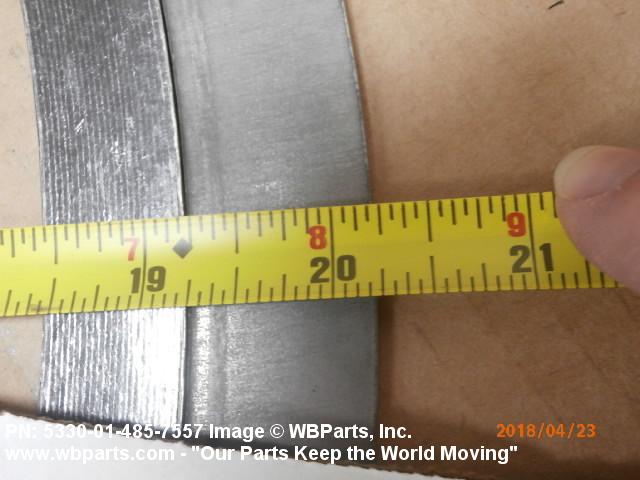

| GAGE RING OUTSIDE DIAMETER | 20.250 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | EMERSION HEAT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-G-24716 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24716TY2CLB16.00NPS150PSICRPL |
Restrictions/Controls & Freight Information | NSN 5330-01-485-7557
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194050 | GASKETS/RINGS PLUMBING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-485-7557
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
