NSN 5340-00-801-1503 H9451LSRG, H945-1LSRG , 608-5754687 ITEM 23
Product Details | BAIL HANDLE
5340-00-801-1503 An item, usually basically semicircular or rectangular, designed to be swivel mounted to another item such as a container, chest, drawer, or door to provide facilities for lifting, opening, pulling, and the like. It may be with or without a mounting plate. Excludes HANDLE, DOOR.
Part Alternates: H9451LSRG, H945-1LSRG , 608-5754687 ITEM 23, 6085754687ITEM23, 11605, 5340-00-801-1503, 00-801-1503, 5340008011503, 008011503
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-801-1503 | 20353 ( HANDLE, BAIL ) |
Drawings & Photos | NSN 5340-00-801-1503
Demand History | NSN 5340-00-801-1503
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 11605 | 2025-01-20 | 272 | DIBBS |
| 11605 | 2021-11-318 | 255 | DIBBS |
| 11605 | 2019-03-71 | 202 | DIBBS |
| 11605 | 2019-03-65 | 4 | DIBBS |
| 11605 | 2019-03-62 | 202 | DIBBS |
| 11605 | 2019-02-57 | 4 | DIBBS |
| 5340-00-801-1503 | 2014-01-01 | 198 | DIBBS |
| 5340-00-801-1503 | 2013-12-356 | 151 | DIBBS |
| 5340-00-801-1503 | 2013-12-356 | 190 | DIBBS |
| 5340-00-801-1503 | 2013-10-296 | 190 | DIBBS |
| 5340-00-801-1503 | 2013-10-281 | 190 | DIBBS |
| 5340-00-801-1503 | 2013-08-228 | 82 | DIBBS |
| 5340-00-801-1503 | 2013-08-213 | 82 | DIBBS |
| 5340-00-801-1503 | 2013-07-183 | 8 | US |
| 5340-00-801-1503 | 2013-06-152 | 1 | DIBBS |
| 5340-00-801-1503 | 2013-05-142 | 288 | DIBBS |
| 5340-00-801-1503 | 2012-11-331 | 64 | DIBBS |
| 5340-00-801-1503 | 2012-09-269 | 235 | DIBBS |
| 5340-00-801-1503 | 2011-07-203 | 217 | DIBBS |
| 5340-00-801-1503 | 2010-10-295 | 50 | DIBBS |
| 5340-00-801-1503 | 2010-09-272 | 20 | DIBBS |
| 5340-00-801-1503 | 2010-09-272 | 20 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-801-1503
Related Products | NSN 5340-00-801-1503
Technical Data | NSN 5340-00-801-1503
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | CADMIUM BALL PASSIVATE SPRING |

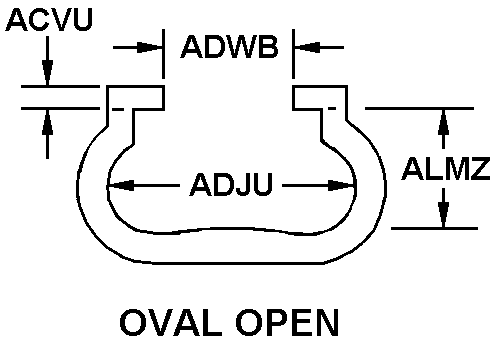

| STYLE DESIGNATOR | A19 OVAL OPEN |
