Product Details | BAIL HANDLE
5340-01-034-3850 An item, usually basically semicircular or rectangular, designed to be swivel mounted to another item such as a container, chest, drawer, or door to provide facilities for lifting, opening, pulling, and the like. It may be with or without a mounting plate. Excludes HANDLE, DOOR.
Part Alternates: 1298443, 945LS2, 5340-01-034-3850, 01-034-3850, 5340010343850, 010343850
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 JAN 1977 | 01-034-3850 | 20353 ( HANDLE, BAIL ) |
Drawings & Photos | NSN 5340-01-034-3850
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-034-3850
Technical Data | NSN 5340-01-034-3850
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1010 HANDLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI 1010 ASSN STD SINGLE MATERIAL RESPONSE HANDLE |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 2 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| STYLE DESIGNATOR | A4 RECTANGULAR OPEN |
| STOCK DIAMETER | 0.344 INCHES NOMINAL |
| INSIDE LENGTH | 4.438 INCHES NOMINAL |
| DISTANCE BETWEEN ENDS | 0.250 INCHES NOMINAL |
| HANDLE CLEARANCE | 2.062 INCHES NOMINAL |
| MOUNTING METHOD | MOUNTING PLATE |

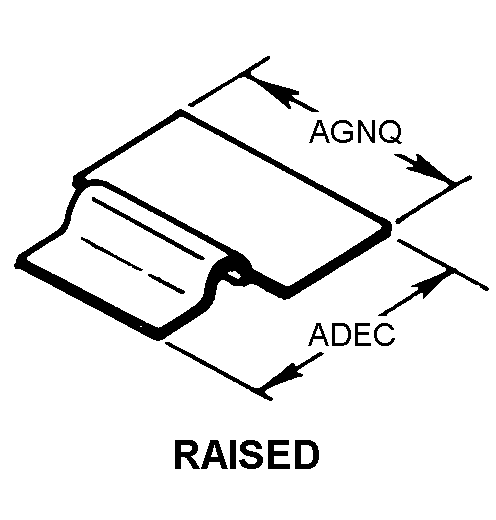

| MOUNTING PLATE STYLE | R4 RAISED |
| PLATE WIDTH | 4.500 INCHES NOMINAL |
| PLATE LENGTH | 2.750 INCHES NOMINAL |
| MANUFACTURERS CODE | 30003 |
| DESIGN CONTROL REFERENCE | 1298443 |
