Product Details | BAIL HANDLE
5340-01-376-9006 An item, usually basically semicircular or rectangular, designed to be swivel mounted to another item such as a container, chest, drawer, or door to provide facilities for lifting, opening, pulling, and the like. It may be with or without a mounting plate. Excludes HANDLE, DOOR.
Part Alternates: 11761A31242, 11761-A-3124-2, 5340-01-376-9006, 01-376-9006, 5340013769006, 013769006
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 JUN 1993 | 01-376-9006 | 20353 ( HANDLE, BAIL ) |
Drawings & Photos | NSN 5340-01-376-9006
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5340-01-376-9006
5340-01-376-9007, 5340-01-376-9008, 5340-01-376-9009, 5340-01-376-9213, 5340-01-376-9214
Technical Data | NSN 5340-01-376-9006
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| COLOR | BLACK OVERALL |

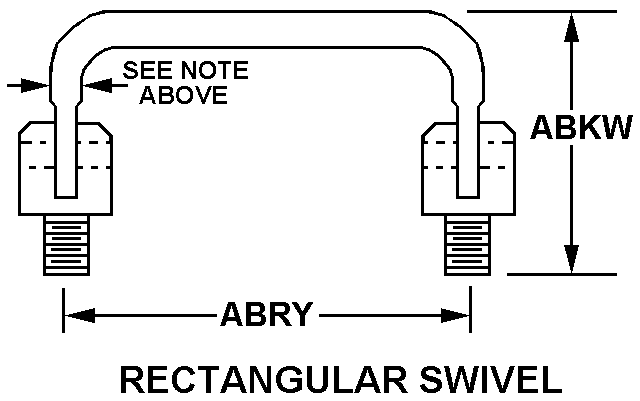

| STYLE DESIGNATOR | A24 RECTANGULAR SWIVEL |
| OVERALL HEIGHT | 1.530 INCHES NOMINAL |
| LENGTH | 6.000 INCHES NOMINAL |
| STOCK DIAMETER | 0.375 INCHES NOMINAL |
| NOMINAL THREAD SIZE | 0.313 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| FEATURES PROVIDED | FERRULE |
Restrictions/Controls & Freight Information | NSN 5340-01-376-9006
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
