NSN 5985-00-310-4311 TRM2190M000100, TRM-2190-M0-001-00, 2121500129
Product Details | ELECTRICAL DUMMY LOAD
5985-00-310-4311 A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL.

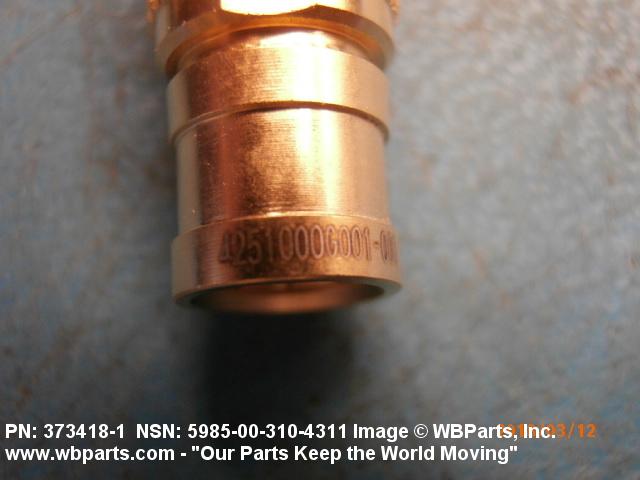

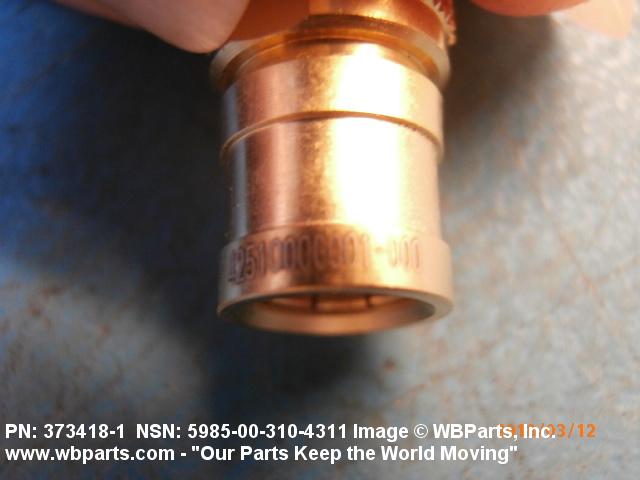

Part Alternates: TRM2190M000100, TRM-2190-M0-001-00, 2121500129, 2121-5001-29, 3734181, 373418-1, 4251000G001000, 4251000G001-000 , 5985-00-310-4311, 00-310-4311, 5985003104311, 003104311
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 OCT 1973 | 00-310-4311 | 00335 ( DUMMY LOAD, ELECTRICAL ) |

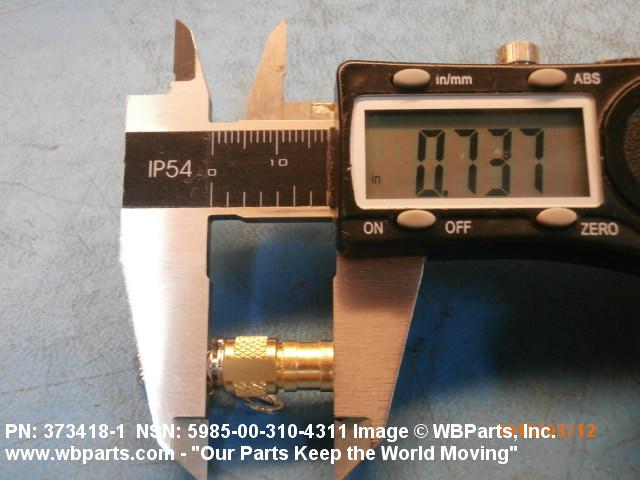

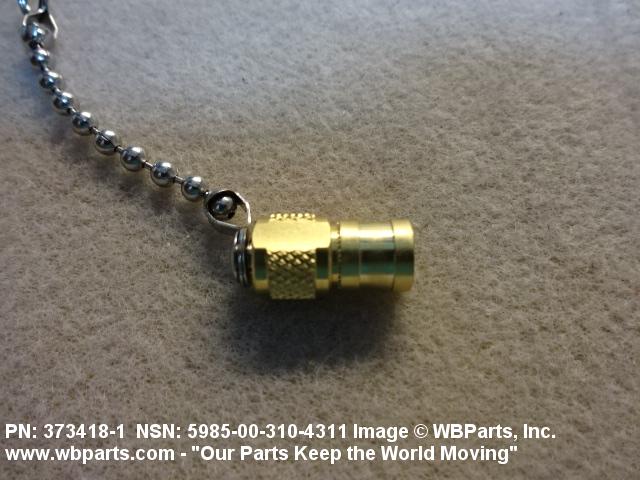

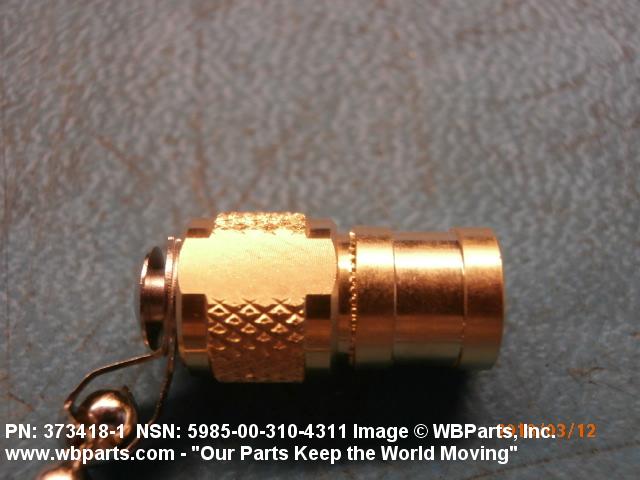

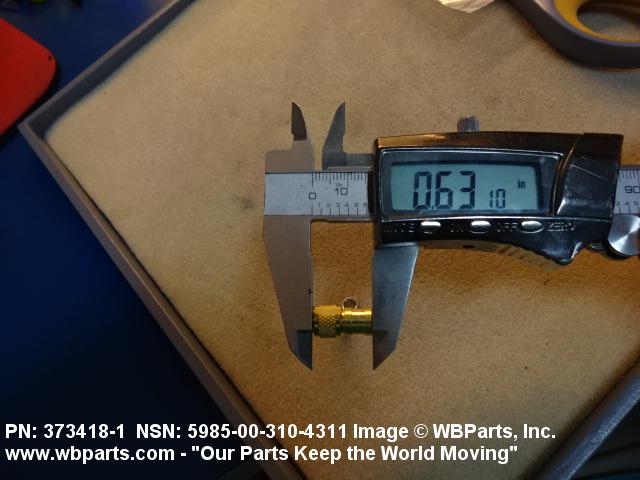

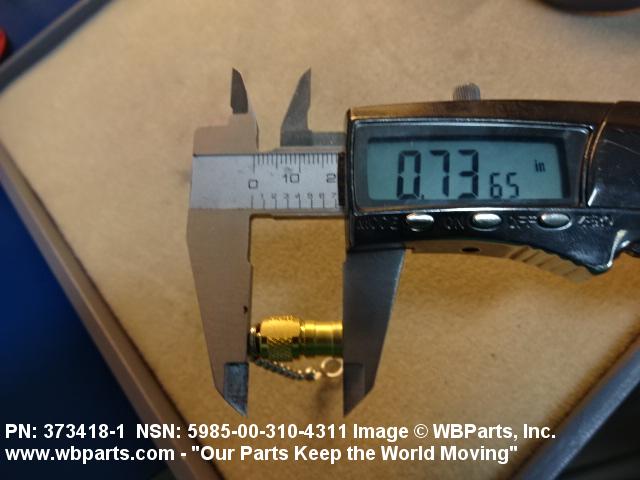

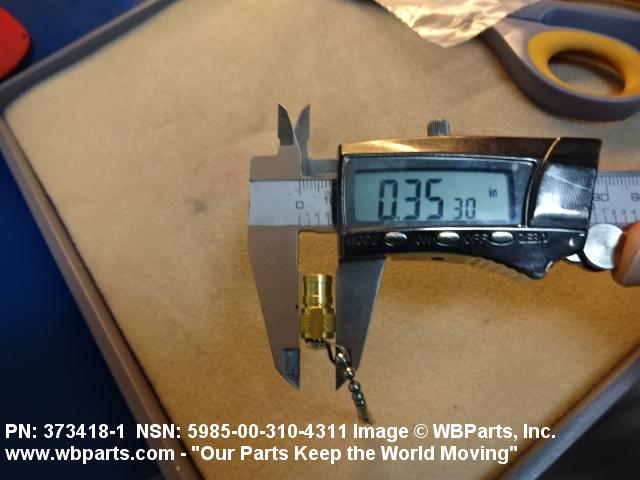

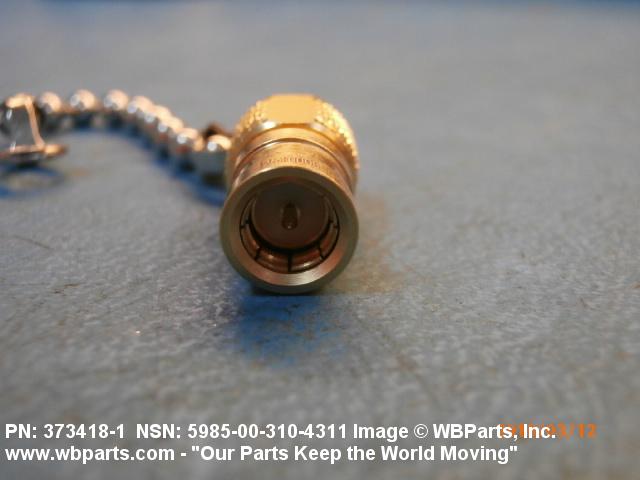

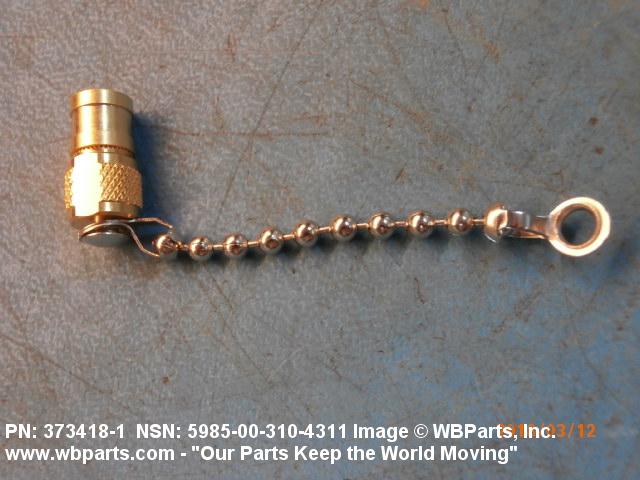

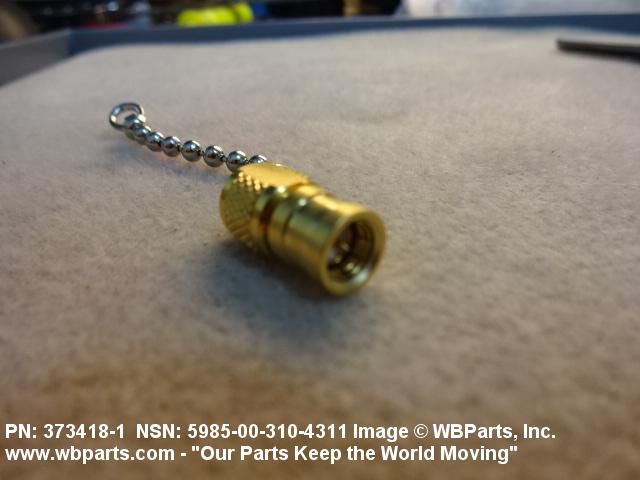

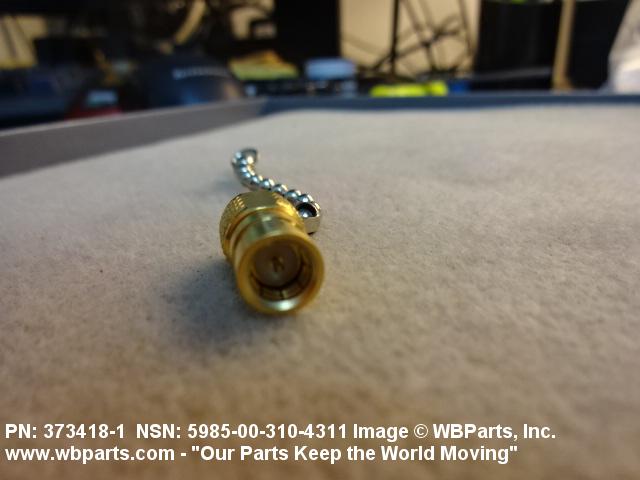

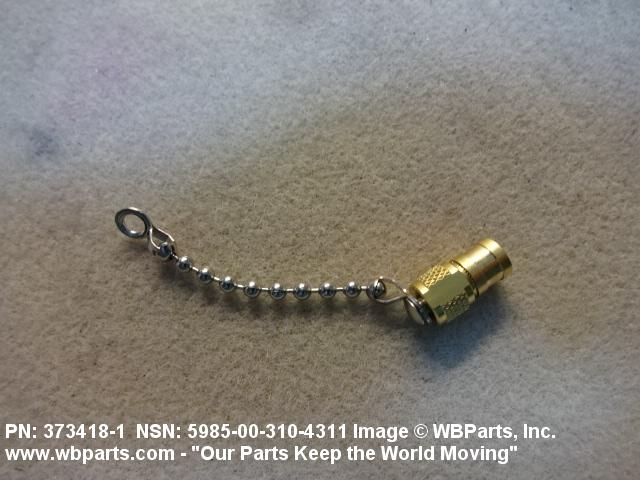

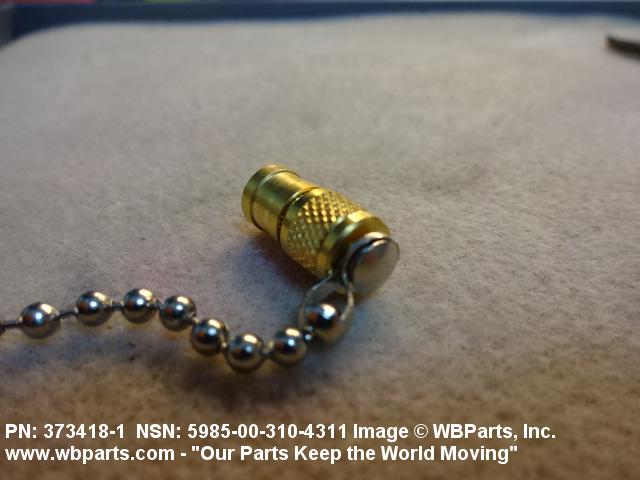

Drawings & Photos | NSN 5985-00-310-4311
Demand History | NSN 5985-00-310-4311
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3734181 | 2017-10-276 | 24 | United States |
| 2121500129 | 2017-08-229 | 1 | United States |
| 5985-00-310-4311 | 2011-11-327 | 6 | DIBBS |
| 5985-00-310-4311 | 2011-09-255 | 0 | DIBBS |
| 5985-00-310-4311 | 2011-07-190 | 45 | DIBBS |
| 5985-00-310-4311 | 2010-12-340 | 24 | DIBBS |
| 5985-00-310-4311 | 2010-11-323 | 24 | DIBBS |
| 5985-00-310-4311 | 2008-09-262 | 6 | DIBBS |
| 5985-00-310-4311 | 2008-09-247 | 5 | DIBBS |
Cross Reference | NSN 5985-00-310-4311
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-00-310-4311
Technical Data | NSN 5985-00-310-4311
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 4A COAXIAL MOUNTED |
| OVERALL LENGTH | 0.830 INCHES MAXIMUM |

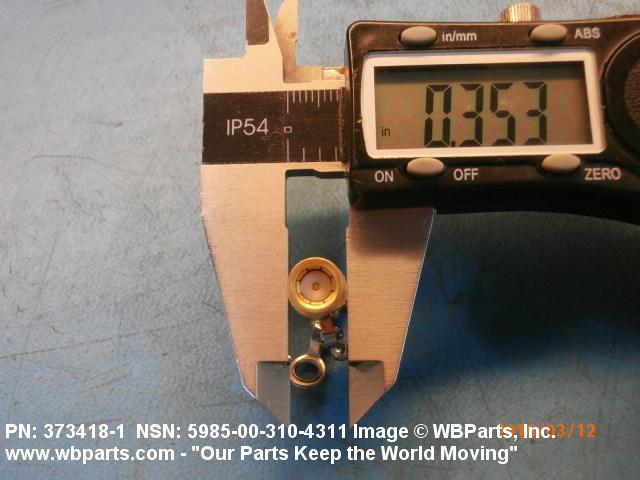

| OVERALL DIAMETER | 0.354 INCHES NOMINAL |
| FREQUENCY RANGE RATING | 0.000 TO 18.000 GIGAHERTZ |
| POWER RATING | 0.500 WATTS AVERAGE |
| IMPEDANCE RATING IN OHMS | 50.0 NOMINAL |
| VOLTAGE STANDING WAVE RATIO | 1.05 AND 1.10 AND 1.15 AND 1.20 |
| VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE | 0.000 TO 4.000 GIGAHERTZ AND 4.000 TO 8.000 GIGAHERTZ AND 8.000 TO 12.000 GIGAHERTZ AND 12.000 TO 18.000 GIGAHERTZ |
| TERMINATION TYPE | CONNECTION COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | N |
| CONNECTOR END DESIGN | MALE |
| COOLING METHOD | SELF-COOLED |
| OPERATING POSITION | ALL POSITIONS |
| MANUFACTURERS CODE | 3B150 |
| MFR SOURCE CONTROLLING REFERENCE | 373418-1 |
Restrictions/Controls & Freight Information | NSN 5985-00-310-4311
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-00-310-4311
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
