NSN 5985-01-249-9991 90920, 90-920, 01-249-9991
Product Details | ELECTRICAL DUMMY LOAD
5985-01-249-9991 A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL.
Part Alternates: 90920, 90-920, 5985-01-249-9991, 01-249-9991, 5985012499991, 012499991
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 FEB 1987 | 01-249-9991 | 00335 ( DUMMY LOAD, ELECTRICAL ) |

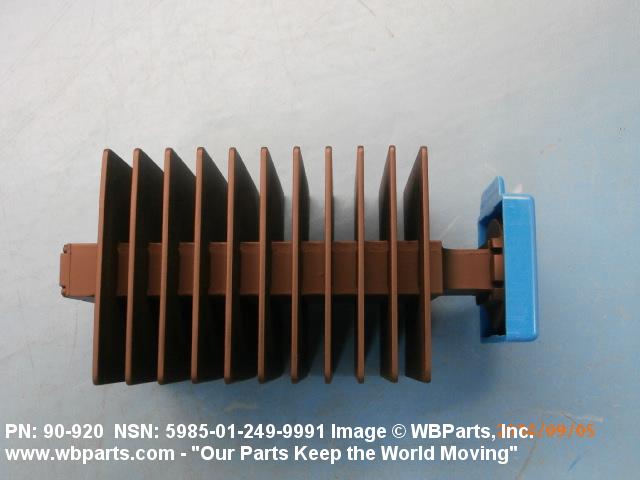

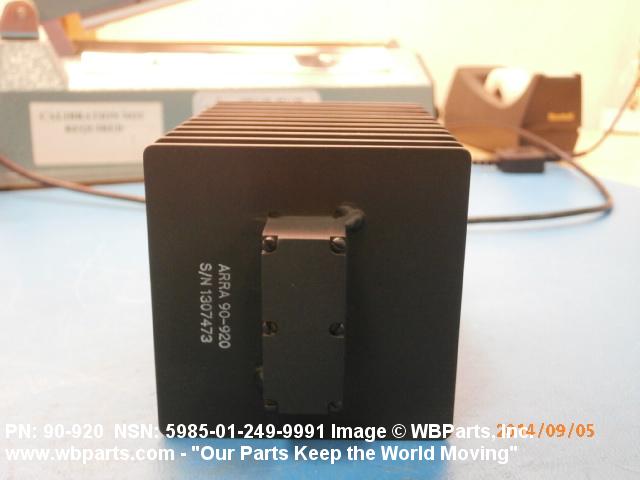

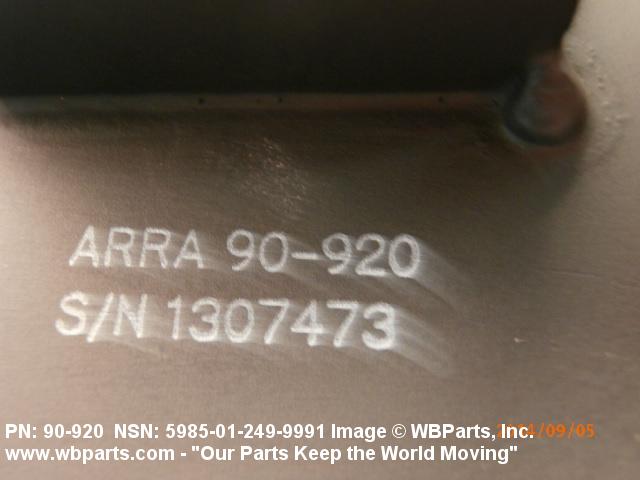

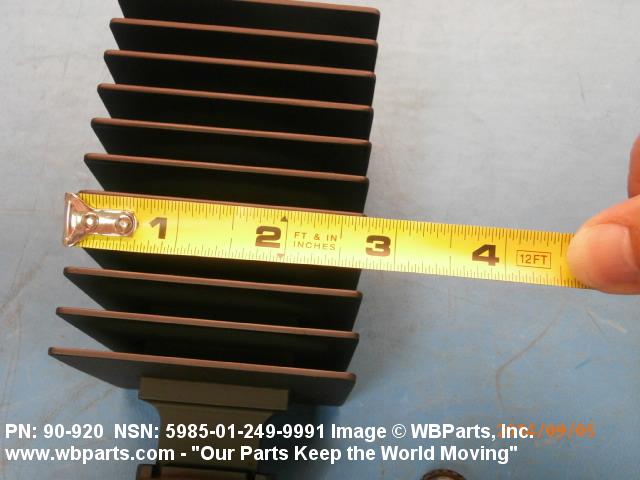

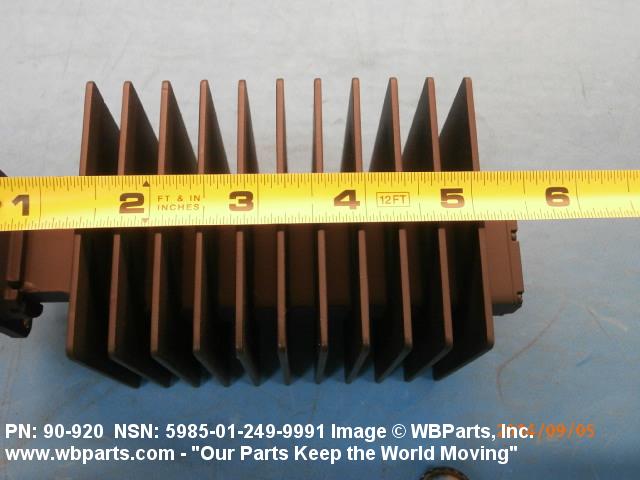

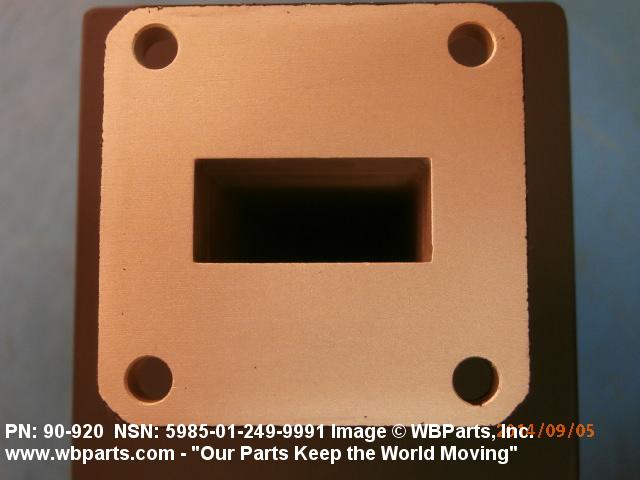

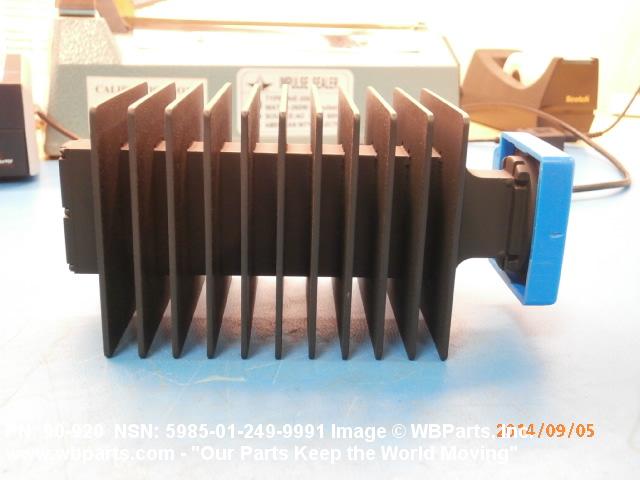

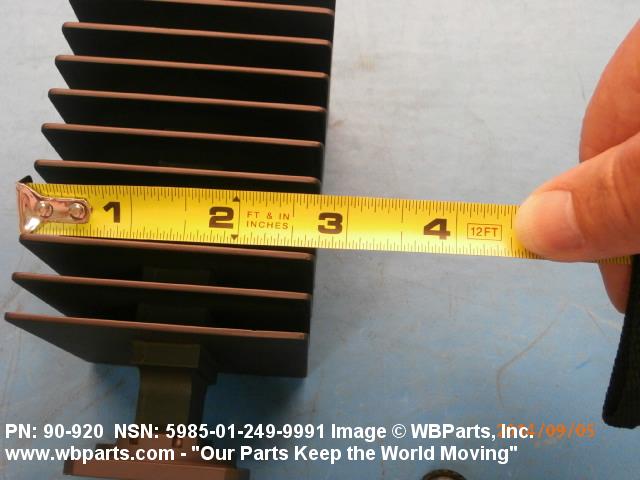

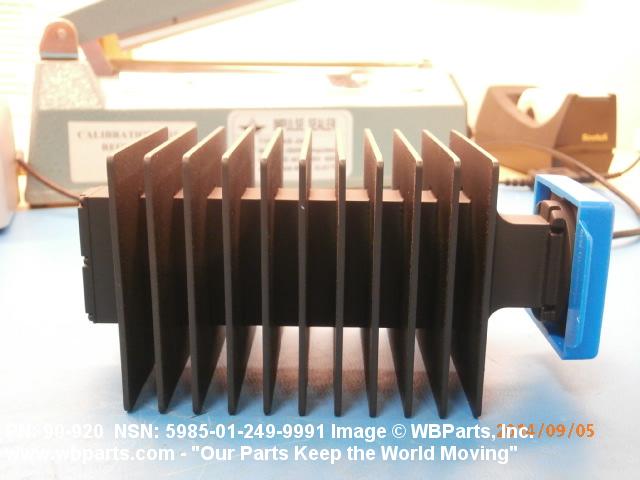

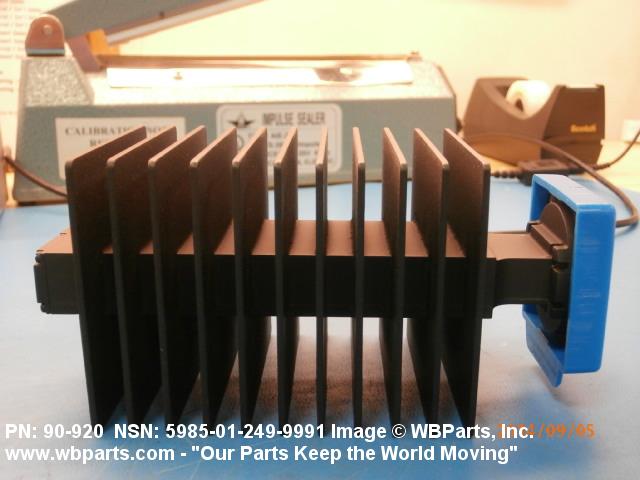

Drawings & Photos | NSN 5985-01-249-9991
Demand History | NSN 5985-01-249-9991
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-249-9991 | 2014-06-178 | 1 | United States |
| 5985-01-249-9991 | 2014-06-171 | 1 | United States |
Cross Reference | NSN 5985-01-249-9991
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 90-920 | 09992 | ARRA INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-249-9991
Technical Data | NSN 5985-01-249-9991
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 18A WAVEGUIDE MOUNTED |
| OVERALL LENGTH | 5.750 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.750 INCHES MAXIMUM |
| OVERALL WIDTH | 2.750 INCHES MAXIMUM |
| FREQUENCY RANGE RATING | 8.200 TO 12.400 GIGAHERTZ |
| POWER RATING | 500.000 WATTS AVERAGE |
| VOLTAGE STANDING WAVE RATIO | 1.10 |
Restrictions/Controls & Freight Information | NSN 5985-01-249-9991
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
