NSN 3120-01-165-5830 L5341124001, L5341124-001, 01-165-5830
Product Details | ROD END PLAIN BEARING
3120-01-165-5830 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: L5341124001, L5341124-001, 3120-01-165-5830, 01-165-5830, 3120011655830, 011655830
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 31 OCT 1983 | 01-165-5830 | 13209 ( BEARING, PLAIN, ROD END ) |
Drawings & Photos | NSN 3120-01-165-5830
Cross Reference | NSN 3120-01-165-5830
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| L5341124-001 | 43999 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-165-5830
Related Products | NSN 3120-01-165-5830
Technical Data | NSN 3120-01-165-5830
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER STEEL COMP 630 RACE INSERT PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER TITANIUM ALLOY ROD END BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5630 ASSN STD SINGLE MATERIAL RESPONSE INNER MEMBER AMS5643 ASSN STD SINGLE MATERIAL RESPONSE RACE INSERT |
| HARDNESS RATING | 55.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER |

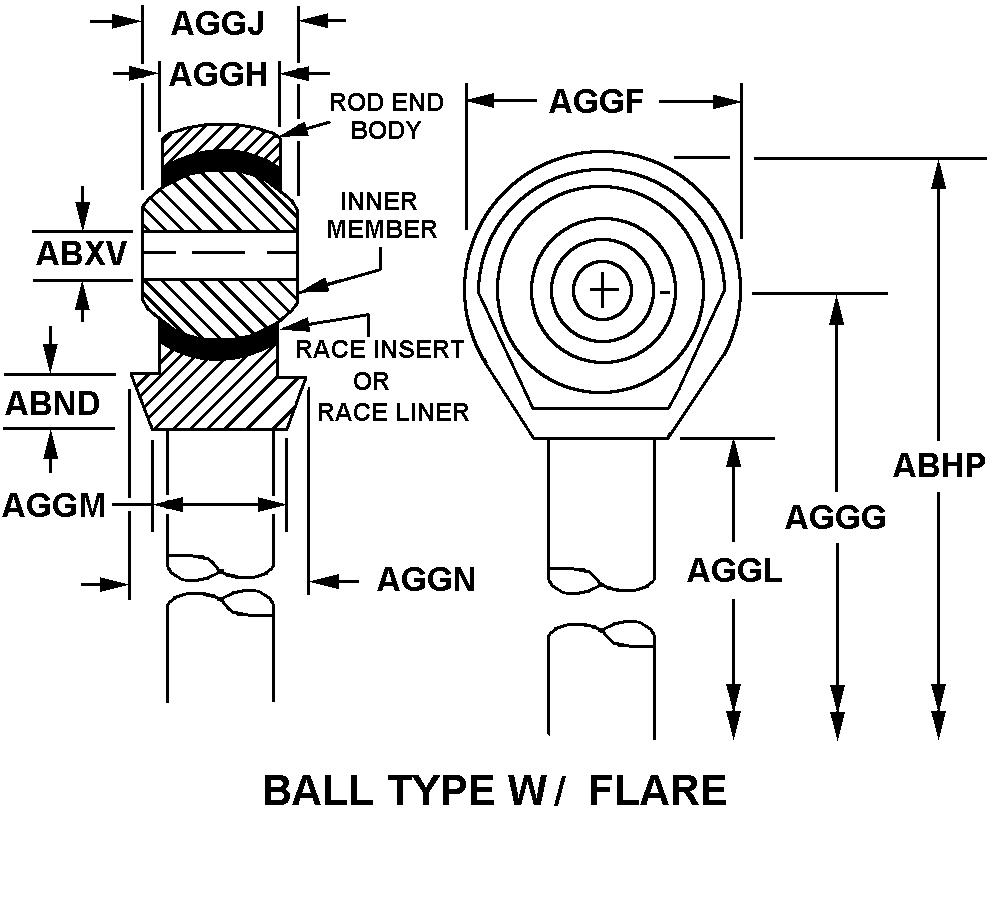

| STYLE DESIGNATOR | 3 BALL TYPE WITH FLARE |
| OVERALL LENGTH | 2.5120 INCHES NOMINAL |
| TAPER LENGTH | 0.1100 INCHES NOMINAL |
| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 1.0240 INCHES NOMINAL |
| BORE CENTER TO SHANK END DISTANCE | 2.0000 INCHES NOMINAL |
| OUTER MEMBER WIDTH | 0.3220 INCHES MINIMUM AND 0.3320 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.4350 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM |
| SHANK END TO SHOULDER LENGTH | 1.3750 INCHES NOMINAL |
| TAPER BEGINNING DIAMETER | 0.7501 INCHES NOMINAL |
| TAPER END DIAMETER | 0.7500 INCHES NOMINAL |
| LUBRICATION MATERIAL | LUBRICANT, DRY FILM |
| STATIC RADIAL LOAD RATING | 5500 POUNDS |
| SHANK STYLE | 1 EXTERNALLY THREADED |
| SHANK THREAD LENGTH | 0.5090 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJF |
| THREAD DIAMETER | 0.3125 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIAL FEATURES | ROD END OFFSET 1.062 IN. FROM BOLT;SHANK FINISH 32AA THREADS TO FLANGE |
| MANUFACTURERS CODE | 43999 |
| DESIGN CONTROL REFERENCE | L5341124-001 |
Restrictions/Controls & Freight Information | NSN 3120-01-165-5830
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
